Product Families » Wireless Networking » Wireless Antennas » Indoor Antennas » TEW-AI75OB
Dual-Band 11a/g 7/5dBi Indoor Omni Directional Antenna w/ Mounting Base
TEW-AI75OB
  • Boost the range of your existing wireless network
  • Compatible with wireless a, b and g standards
  • Install on an included mounting base or connect directly to a TRENDnet wireless device

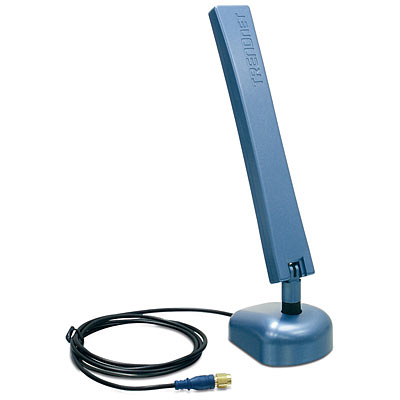

TEW-AI75OB
Click on image to enlarge

TEW-AI75OB Omni Antenna provides more power and greater range for your wireless network. As an optional antenna for your IEEE 802.11b/g 2.4GHz or 802.11a 5GHz wireless network equipment, TEW-AI75OB will significantly improve signal strength and quality. TEW-AI75OB will work with any brand of devices with reverse SMA male connector!


* This dBi gain does not factor cable loss. Performance estimations are for typical use; range will vary with site conditions.


RoHS Compliant

  • Compatible with 2.4GHz 802.11b/g or 5GHz 802.11a wireless devices
  • Works with any brand of wireless devices with reverse SMA male connector.
  • Detachable antenna base allows high gain antenna to be optionally connected to Wi-Fi device avoiding cable loss/attenuation .
  • Magnetic base allows convenient and optimal relocation to wall or any metallic surface.
  • Serves as an indoor omni relocation antenna.
  • Enhances wireless coverage and improve signal transmission and reception.

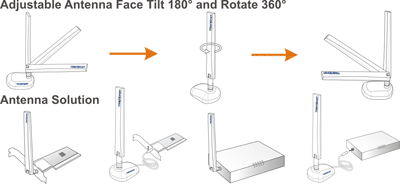

  • Adjustable antenna face can tilt up to 180° and rotate up to 360° for optimal performance.
  • Easy-to-install wall and ceiling mount.
  • No configuration or installation software required.
  • 3-year limited warranty.
Hardware
Frequency range 802.11a: 4.9 ~5.875GHz
802.11b/g: 2.4 ~ 2.5GHz
Gain 802.11a: 7dBi
802.11b/g: 5dBi
VSWR 2.0:1
Polarization Linear, vertical
HPBW/ Horizontal 360°
HPBW/ Vertical 802.11a: 25°
802.11b/g: 35°
Power handling 2W (cw)
Impedance 50 Ohms
Connector Reverse SMA Female
Cable Length 100cm (3.3ft.)
Temperature -10°C ~ 55°C (14°F ~ 131°F)
Humidity -10°C ~ 55°C (14°F ~ 131°F)
Weight Antenna: 40g (1.4oz.)
Base: 82g (2.9oz.)
Dimension Antenna: 217x28x14mm (8.5 x 1.1 x 0.55in.)
Base: 80x58x 28mm (3.15 x 2.28 x1.1in.)
Radiation Patterns




TEW-AI75OB

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TEW-AI07OB
  • Mounting Kit
  • Multi-Language Userīs Guide
