Product Families » Internet Cameras » ProView Camera Series » Wireless ProView Camera Series » TV-IP301W
ProView Wireless Advanced Day/Night Internet Camera
TV-IP301W (Version 1.0R)
  • Excellent night recording with infrared lens technology
  • No need for an Ethernet connection, video is transmitted over a secure encrypted wireless signal
  • Superb image quality from MPEG-4 compression and CCD sensor
  • View streaming video, hear sounds and record from any Internet connection


 DISCONTINUED PRODUCT
The TV-IP301W (Version 1.0R) has been discontinued.  It has been replaced by the TV-IP301W (Version 1.0R). For a list of discontinued products, click here.

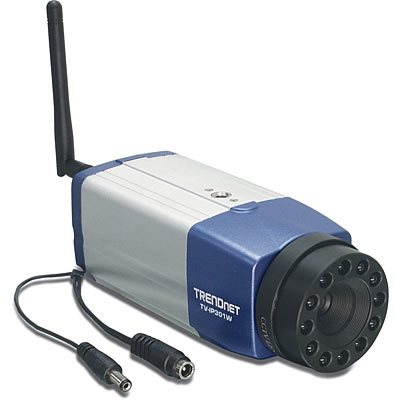

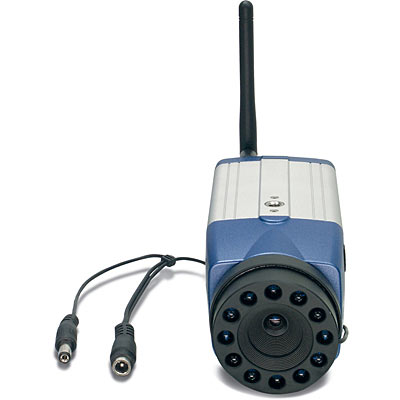

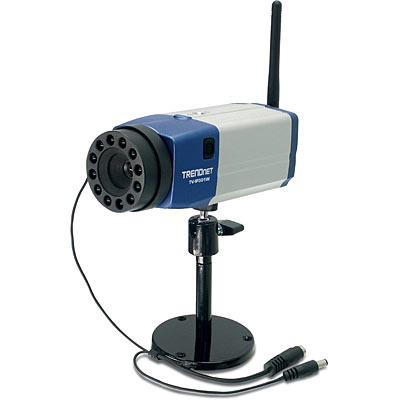

TV-IP301W
Click on image to enlarge

The Advanced Day/Night Wireless Internet Camera Server with Audio is perfect for transmitting real-time video over the Internet. This camera provides high quality streaming video with framerates up to 30fps. This 802.11b/g camera transmits secured video wirelessly. Users can view up to 32 cameras on one screen at any time.


RoHS Compliant

  • Wi-Fi Compliant with IEEE 2.4GHz 802.11b/g Devices
  • Wireless Supports Infrastructure and Ad-Hoc Modes
  • Supports128-bit WEP and WPA-PSK Encryption
  • Supports CCD image sensor and DC-Iris control
  • Supports audio monitoring and RS-485 port for pan & tilt Control
  • Includes I/O ports to trigger alarm and e-mail notification
  • Built-in Microphone for audio monitoring
  • High quality Motion JPEG and MPEG-4 Video Recording for up to 30 frames per second.
  • Equipped with IR Lens (10 meters) night vision
  • Supports viewing and recording up to 32 cameras at the same time*
  • Progressive scan, all lines are captured at the same time
  • Supports 4x digital zoom
  • Supports video overlay in both graphics and texts.
  • Supports three adjustable motion detection windows with just in time snapshot
  • Supports TCP/IP networking, SMTP e-mail, HTTP and other Internet related protocols
  • Supports Web configuration with password protection
  • Supports UPnP and DDNS
  • Multiple cameras monitoring, image capturing, and video recording (Windows 98/ME/2000/XP)

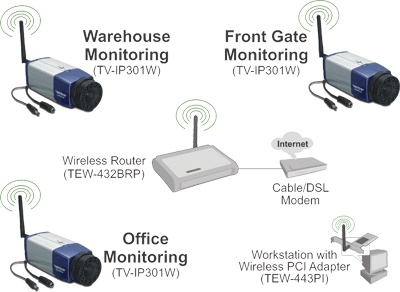

  • Broad range of applications for monitoring homes, offices, banks, hospitals, parking lot and a variety of private and public monitoring
  • 3-year limited warranty

* Monitoring multiple cameras may require a high performance CPU

Camera Specifications
Image Sensor
Sensor: Sony 1/4”progressive CCD
Resolution: 640 x 480,320 x 240, 160 x 120
Lens:
  • f: 6.0mm
  • F: 1.8 CS Mount IR Lens
Minimum Illumination:
  • 0.5 Lux at F1.8 1/30 sec Exposure Time (Max 30 fps)
  • 0.1 Lux at F1.8, 1/5 sec Exposure Time (Max 5 fps)
  • 0 Lux at F1.8IR LED Enabled Mode
Audio Input & Output
Input: Built-in Mic, External Mic (mono)
Compression:
  • ADPCM (mono)
  • PCM: 8K/16K/24K/48K (mono)
Signal to Noise Ratio: 62dB
Video
Compression MPEG-4 (Simple Profile) / M-JPEG
Resolution VGA/QVGA/QQVGA
Frame Rate 30fps@VGA, QVGA, QQVGA
Up/Down Reversal Yes
Left/Right Reversal Yes
Quality Selection 5 Levels
Frame Rate Selection 13 Levels
Brightness/ Contrast/ Color/ Sharpness/ Motion Detection Yes
Anti-Flicker 50Hz or 60Hz
Expose/White Balanced Control Automatic
Communication
LAN
  • 10/100MbpsEthernet
  • Auto-Sensed& Auto MDIX
Protocol HTTP, SMTP, FTP, NTP, DNS, DHCP, TCP/IP, DDNS, UPnP
Wireless
Standard IEEE802.11b/g
Data Rate
  • 11g: 54, 48, 36, 24, 12, 9, & 6Mbps
  • 11b: 11, 5.5, 2 & 1Mbps
Frequency 2.4 ~2.4835Ghz (ISMB)
Antenna Detachable2dBi Diversity Antenna (Reverse SMA Connector)
Security 64/128-bit WEP
Hardware Specifications
System
CPU Infineon ADMTek 5120
RAM 32Mbyte
ROM / Flash 4Mbytes
OS Linux

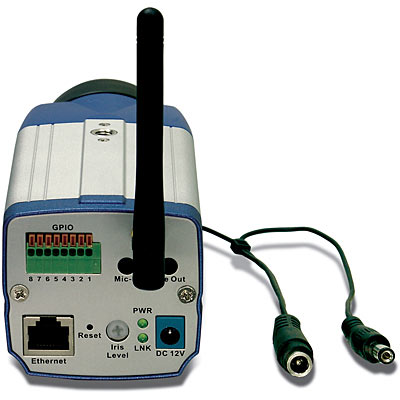

I/O& Control
Generic Input 1 Set (Pin 1, 2)
Generic Output 2 Sets (Pin 3,4 & Pin 5, 6)
RS-485 (For pan/tilt Control) Set (Pin 7, 8)
System Requirement (Web Configuration)
CPU Intel Pentium 1GHz or Above
Memory Size 256MB
Resolution 800 x 600 or above
Physical/Environment
Dimension 157 x 62 x 56mm (6.2 x 2.4 x 2.2in.)
Weight
  • Camera: 450g (15.9oz)
  • Stand: 116g (4.1oz.)
Power 12V DC, 1.5A External Power Adapter
Consumption 7 Watt
Temperature
  • Operation: 5ºC ~ 45ºC (41ºF ~ 113ºF)
  • Storage: -10ºC ~ 60ºC (14ºF ~ 140ºF)
LED
  • Power: green
  • Link: green
Humidity 15 % ~ 85% Non-Condensing
Certification CE/FCC
Software
Browser Internet Explorer 5.0 or above
Application IPView Pro Software
OS Support Windows 98SE/ME/2000/XP/Vista

TV-IP301W

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Emulator
Register Your Product
Package Contents
  • TV-IP301W
  • Multi-Language QuickInstallation Guide
  • Utility CD-ROM
  • Camera Stand
  • RJ-45 Cable
  • Power Adapter 12V,1.5A
