Product Families » Routers » Wireless Routers » TEW-310APB

11/22Mbps Wireless Access Point + Bridge
TEW-310APB (Version A)

DISCONTINUED PRODUCT

The TEW-310APB (Version A) has been discontinued. For a list of discontinued products, click here.

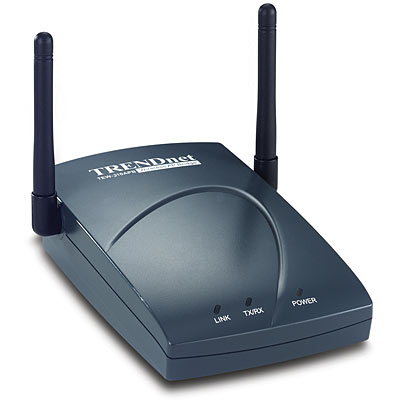

Click on image to enlarge

TRENDnet’s TEW-310APB Wireless Access Point is today’s link to Wireless Technology. Compliant with the most advanced IEEE Wireless Networking Standard 802.11b, it provides Direct Sequence Spread Spectrum (DSSS) operation for transparent bridging and roaming capabilities for wireless nodes. The TEW-310APB also provides AP-to-AP bridging functions, allowing users to connect two or more Access Points together, wirelessly. With TRENDnet’s Wireless Access Point and Wireless Network Adapters, users can connect to Ethernet/Fast Ethernet LAN at home or office to access network resources such as hard drives, CD-ROM/DVD drives, network printers, and Internet connection - with coverage up to 300 meters.

Wire-free access to networked resources for your Desktop/Notebook PC, PDA, and Mac
Operates as Access Point, Wireless Bridge, or Access Point Client
Uses 2.4GHz frequency band, which complies with worldwide requirement
Direct Sequence Spread Spectrum (DSSS) wireless technology
Provides data rate bandwidth up to 22Mbps with automatic fallback
Provides 64/128/256-bit Wired Equivalent Privacy (WEP) encryption
Easy configuration with Web Browser and Windows Configuration Software
Access Control with wireless client’s MAC Address
dBi Dual Dipole Antennas (fixed)
DHCP Server supports up to 100 clients
10/100Mbps auto-sense Fast Ethernet port
Wall-Mountable
Distance coverage 35 to100 meters indoor, 100 to 300 meters outdoors
3-year limited warranty


Wireless LAN Interface
Standards:	IEEE 802.11b Wireless LAN
Modulation Technology:	Direct Sequence Spread Spectrum (DSSS), PBCC (Packet Binary Convolutional Coding), 11-chip Barker Sequence
Channels:	11 Channels (US & Canada)
Data Rate:	22Mbps, 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps (auto-fallback)
Operating Mode:	AP, AP-to-AP, AP-to-Multiple AP, or AP Client
Frequency Range:	2.4 ~ 2.4835 GHz
Security:	64/128/256-bit WEP Encryption
Antenna:	2dBi Fixed Dipole Antennas (length = 87 mm / 3.43 inches)
Output Power:	16 ~ 18 dBm (max.)
Receiving Sensitivity:	- 82 dBm (Typical)
Wired LAN Interface
Standards:	IEEE 802.3 (10Base-T) and IEEE 802.3u (100Base-TX)
Data Rate Transmission:	10/100Mbps, Half/Full duplex auto-negotiation
Media Connector:	1 x UTP/STP RJ-45
Cabling:	Cat. 5 UTP/STP RJ-45 Cable (100 meters max.)
LED Indicators:	Power, TX/RX, Link
Power:	External Power Adapter, Input: 100~240VAC, 1A, 50~60Hz. Output: 5VDC, 2A
Dimensions:	140 x 113 x 38 mm (5.51 x 4.45 x 1.5 inches) (antenna folded)
Weight:	213 g. (7.5 Oz.)
Temperature:	Operating: -10° ~ 55°C (14°F ~ 131°F) Storage: -20° ~ 65°C (-4°F ~ 149°F)
Humidity:	Max. 95% (non-condensing)
Certification:	CE, FCC Class B

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
