External 56K (V.90) High Speed Voice/Fax Modem
TFM-560X

-Save time with fast data transfer rates
-Quickly network this compact device to your computer
-User friendly data, fax and voice software

DISCONTINUED PRODUCT

The TFM-560X has been discontinued. It has been replaced by the TFM-560X (Version YO.xR). For a list of discontinued products, click here.

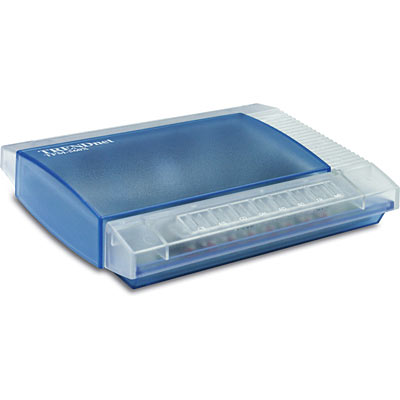

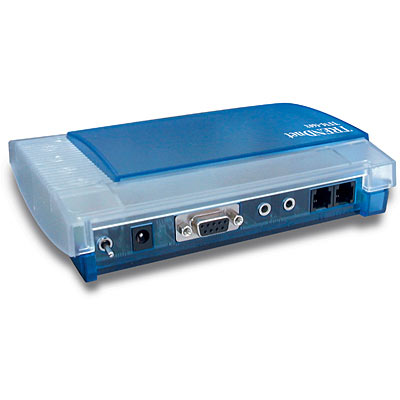

Click on image to enlarge

TRENDnet´s TFM-560X is the latest in communication innovation. The TFM-560X is V.90 and K56flex ultra fast 56Kbps voice/fax modem that provides users with the highest possible data communication rates, reliable error-free transmissions, and widespread interoperability with other users. The TFM-560X also supports Group 3 fax send-and-receive functions. Free communication software and serial cable are included with the TFM-560X for quick and easy startup. TRENDnet´s TFM-560X is also compatible with all communication software and capable of utilizing the Hayes ´AT´-command set.

V.90 56Kbps data download
Supports V.17, V.29, and V.27ter Group 3 fax protocol
Supports auto diagnostic
Support Windows 95/98/ME/2000/XP and Linux
Group 3 fax protocol / RS-232 interface
Automatic detection for speed
Voice encoding and decoding/TAM functions
Telephony answering machine with full-duplex speakerphone
High speed 56Kbps data and 14.4Kbps fax communication
Industry standard protocol for data compression and error correction
Free Communication Software
5-year limited warranty


Hardware
Standards:	V.34+, V.32bis, V.23, V.22bis, V.22, V.21 ITU-T Data Transmit
Fax Protocol:	V.17, V.29, and V.27ter Group 3 fax protocol
Fax Command Set:	Class 1 (TIA-578)
Error Control:	V.42LAP-M MNP Class 2-4
Data Compression:	V.42bis (4:1) MNP Class 5 (2:1)
Flow Control:	Hardware RTS/CTS, Software XON/XOFF
Software Control:	Industry Standard AT command set, Hayes compatible
Diagnostics:	Automatic power-on, self-test, local analog loopback, local digital loop-back, and remote digital loopback 2
Voice Functions:	Voice encoding/decoding, telephony answering machine, and half-duplex speakerphones
Power Supply:	9V AC, 1Amp.
Power Consumption:	500mW
Dimensions:	165 x 138 x 35 mm
Weight:	330 g.
Temperature:	Operating: 0° ~ 40° C. Storage: -20° ~ 60° C
Humidity:	10 ~ 90%
Certifications:	UL, FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
