32-Bit PCI 10/100/1000Mbps NWay Copper Gigabit Ethernet Adapter
TEG-PCITX

The full-duplex gigabit adapter brings high bandwidth with 2000Mbps speeds
Plug and Play with drivers support all popular network operating systems.
Enjoy a 5-year warranty

DISCONTINUED PRODUCT

The TEG-PCITX has been discontinued. It has been replaced by the TEG-PCITXM . For a list of discontinued products, click here.

Click on image to enlarge

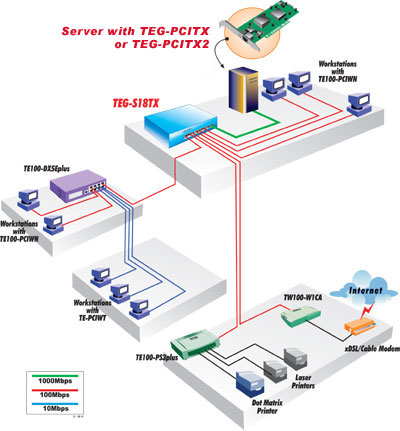

TRENDnet's TEG-PCITX 32-bit PCI 1000Base-T NWay Copper Gigabit Ethernet Card is a high-bandwidth network adapter that auto-senses 10/100/1000Mbps connection speed, half/full-duplex mode, and MDI-X/MDI-II medium type. It includes the latest VLAN and multicasting functions to efficiently utilize network bandwidth for maximum data throughput. With its 1000Mbps bandwidth capacity, TRENDnet's TEG-PCITX is ideal for high traffic Power Server and Video-Conferencing Workstation.

IEEE 802.3, 802.3u and 802.3ab compliant
IEEE 802.1P & 802.1Q priority queuing support
Support 32-Bit 33/66Mhz PCI Local Bus Master high-speed operation of Rev. 2.1/2.2 specification
One RJ-45 Connector: Auto connection speed detection of 10Mbps Ethernet, 100Mbps Fast Ethernet, and 1000Mbps Gigabit Ethernet
Auto MDI-X/MDI-II medium type detection
Supports Full-Duplex mode doubles the bandwidth to 20/200/2000Mbps
Built-in FIFO buffers reduces overhead of memory transfers
Virtual LAN (VLAN) and long frame support. VLAN tag insertion supports for transmit packets. VLAN tag detection and removal for receive packets
Plug and Play Installation
5-year limited warranty


Hardware
Standards:	IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet, ANSI/IEEE 802.3 NWay Auto-Negotiation, IEEE 802.X Flow Control, IEEE 802.1P & 802.1Q priority queuing support
Data Transfer Rate:	Ethernet: 10Mbps (Half-Duplex) 20Mbps (Full-Duplex) Fast Ethernet 100mbps (Half-Duplex), 200Mbps (Full-Duplex) Gigabit Ethernet 1000Mbps (Half-Duplex), 2000Mbps (Full-Duplex)
Cabling:	Ethernet: 2-pair UTP CAT 3,4,5, EIA.ITA-568 100-ohm screened twisted pair (STP) Fast Ethernet: 2-pair UTP CAT 5, EIA/TIA-568 100ohm screened twisted pair (STP) Gigabit Ethernet: 4-pair UTP Cat 5, EIA/TIA-568 100-ohm screened twisted pair (STP)
Host Interface:	32-bit 33/66Mhz PCI Rev.2.1/2.2
Connector:	Single RJ-45 UTP/STP, Auto MDI-II/MDI-X
Diagnostic LEDs:	10 Link, 100 Link, 1000 Link, Full-Duplex, Collision, and Activity
Power Consumption:	10 Watts (max)
Driver Support:	Windows 95/98/Me/2000/NT4/XP, Linux, and Novell Netware
Dimensions:	164 x 69 mm (W x H)
Weight:	120.5g (4.25 Oz)
Temperature:	Operating Temp.: -10° to 50° C (14° to 122°F) Storage Temp.: -10° to 70° C (14° to 158°F)
Humidity:	Operating: 10 % to 90 % non-condensing o Storage: 5% ~ 90% non-condensing
Certifications:	FCC Class B, CE Class B, VCCI Class B

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
