Product Families » Wireless Networking » Wireless Antennas » Indoor Antennas » TEW-AI86DB
Dual-Band 11a/g 8/6dBi Indoor Directional Antenna w/ Mounting Base
TEW-AI86DB
  • Boost your existing wireless network
  • Compatible with wireless a and g standards
  • Install on an included mounting base or connect directly to a TRENDnet wireless device


 DISCONTINUED PRODUCT
The TEW-AI86DB  has been discontinued.  For a list of discontinued products, click here.

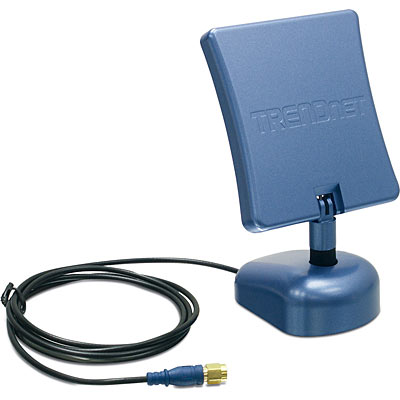

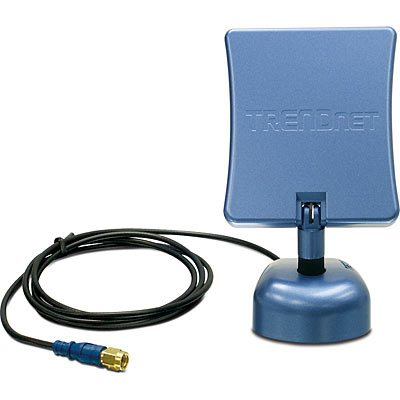

TEW-AI86DB
Click on image to enlarge

TEW-AI86DB Indoor Directional Antenna provides more power and greater range for your wireless network. As an optional antenna for your IEEE 802.11b/g 2.4GHz or 802.11a 5GHz wireless network equipment, TEW-AI86DB will significantly improve signal strength and quality. TEW-AI86DB will work with any brand of device with Reverse SMA Male Connector!


* This dBi gain does not factor cable loss. Performance estimations are for typical use; range will vary with site conditions.


RoHS Compliant

  • Compatible with 2.4GHz 802.11b/g or 5GHz 802.11a wireless devices
  • Works with any brand of wireless devices with reverse SMA male connector
  • Detachable antenna base allows high gain antenna to be optionally connected to Wi-Fi device, avoiding cable loss/attenuation
  • Magnetic base allows convenient and optimal relocation to wall or any metallic surface
  • Serves as an indoor directional relocation antenna
  • Enhances wireless coverage and improve signal transmission and reception
  • Adjustable antenna face can tilt up to 180° and rotate up to 360° angle for optimal performance
  • Easy-to-install wall and ceiling mount
  • No configuration or installation software required
  • 3-year limited warranty
Hardware
Frequency Range 802.11a: 4.9 ~ 5.8GHz
802.11b/g: 2.4 ~ 2.5GHz
Gain 802.11a: 8dBi
802.11b/g: 6dBi
VSWR 2.0:1
Polarization Linear, Vertical
HPBW/ Horizontal 802.11a: 50°
802.11b/g: 75°
HPBW/ Vertical 802.11a: 60°
802.11b/g: 70°
Power Handling 2W (cw)
Impedance 50Ohms
Connector Reverse SMA Female
cable length 100cm (3.3ft.)
Dimension Antenna: 128x85x15 (5.04x3.35x0.59in)
Base: 80x58x28mm(3.15x2.28x1.1in)
Weight Antenna: 51g(1.8oz.)
Base: 82g(2.9oz.)
Temperature -10°C ~ 55°C (14°F ~ 131°F)
Humidity 95% at 25°C
Radiation Patterns



TEW-AI86DB

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TEW-AI86DB
  • Mounting Kit
  • Multi-Language Userīs Guide
