Product Families » Print Servers » Wireless Print Servers » TEW-P1U

Wireless Print Server with 1 USB Printer Port
TEW-P1U (Version V1.0R)

DISCONTINUED PRODUCT

The TEW-P1U (Version V1.0R) has been discontinued. It has been replaced by the TEW-P1UG (Version B1.xR). For a list of discontinued products, click here.

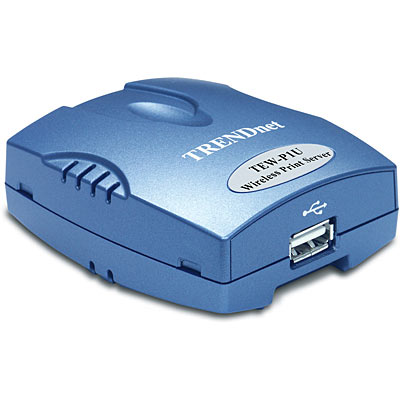

Click on image to enlarge

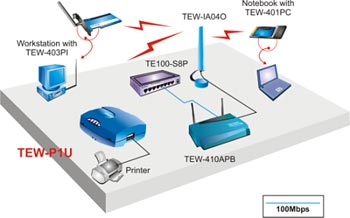

TRENDnet TEW-P1U is a print server that transforms any stand-alone USB printer into a shared network printer. The TEW-P1U provides IEEE 802.11b 11Mbps wireless interface for integrating into existing wireless network. The TEW-P1U is designed for printers equipped with USB 2.0 compliant printer port and it is an ideal network solution to convert conventional USB printer into a shared resource on the network. Network professionals can easily manage the print server using Web Browser or Windows based setup wizard and utilize the TEW-P1U to promote productivity in a workgroup environment with low equipment cost.

Compliant with IEEE 802.11b 11Mbps Wireless LAN
One USB printer port, compliant with USB 2.0 and USB 1.1
Supports Ad-Hoc or Infrastructure wireless mode
Compact pocket size
64/128-bit Wired Equivalent Privacy (WEP) in wireless mode
Supports TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB and IPP network protocols
Supports Windows 95/98/Me/NT4.0/2000/XP, Mac OS 8.1 or higher, Unix/Linux, NetWare (Bindery/NDS)
Supports Bi-directional Communication
1 Mbytes Flash memory for easy firmware upgrade
Supports Windows-based administrative program and Web-based configuration

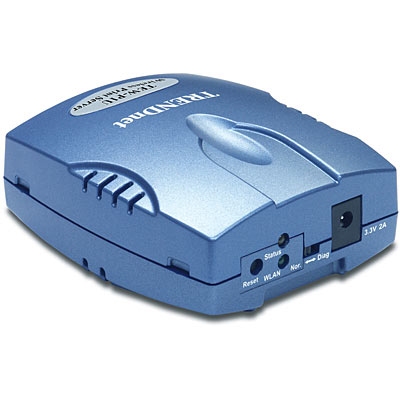

Equipped with Diagnostic DIP switch and Reset button
SNMP & HP Web JetAdmin Support
3-year warranty

Hardware
Wireless Standard:	IEEE 802.11b 11Mbps 2.4GHz DSSS ISM band
Wireless Mode:	Ad-Hoc and Infrastructure
Wireless Encryption:	64/128-bit WEP
Wireless Data Rate:	11Mbps, 5.5Mbps, 2Mbps, and 1Mbps (auto-fallback)
Wireless Channels:	11 Channels (US/Canada)
Antenna:	2 dBi Internal Antenna
Radio Power Output:	13 ~ 17 dBm (typical 15dBm)
Printer Interface:	USB 2.0 and USB 1.1 compliant up to 12 Mbps
Supported Protocols:	TCP/IP, IPX, NetBEUI, AppleTalk, LPR and SMB (over IP) and IPP
LED Indicator:	Status, WLAN
Power:	3.3V DC / 2A, External Power Adapter
Dimensions (LxWxH):	70 x 60 x 27 mm (2.76 x 2.36 x 1.06 inches)
Weight:	46 g. (1.6 Oz.)
Temperature:	Operating: 0° ~ 50°C (32° ~ 122°F) Storage Temperature: -5° ~ 65°C (23° ~ 149°F)
Humidity:	Operating: 0% ~ 70% Storage: 0% ~ 80%
Emission:	FCC class B, CE class B

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
