TRENDnet | Products | PS/2 Console Ports

Product Families » KVM » Desktop » PS/2 Console Ports » TK-200K

2-Port PS/2 KVM Switch Kit
TK-200K (Version B1.1R)

2-port KVM switch with VGA and PS/2 connection to computers
Device monitoring with Auto-Scan and audible feedback
High quality 1920x1440 resolution for a crisp display
All required cabling included

DISCONTINUED PRODUCT

The TK-200K (Version B1.1R) has been discontinued. It has been replaced by the TK-205K (Version v1.1R). For a list of discontinued products, click here.

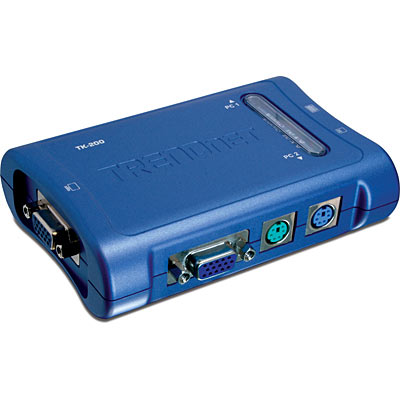

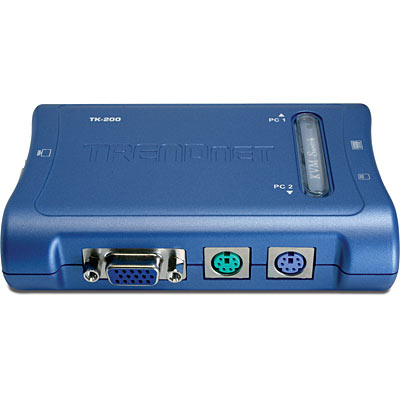

Click on image to enlarge

The TK-200K 2-Port KVM Switch Kit lets you manage two PCs with just one keyboard, monitor and mouse. Switch between two PC's with a simple press of a button! With its Hot-Plug, Auto-Scan, Audible Feedback, and Hot-Key operations, the TK-200K is the perfect choice for managing multiple PCs.

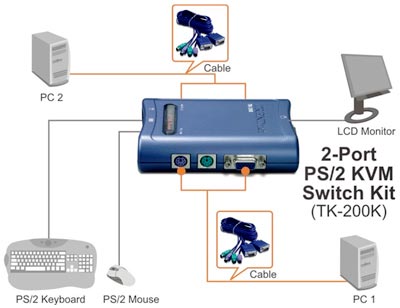

Use one keyboard, monitor, and mouse to control two computers
PS/2 Keyboard/Mouse emulation
2-Port KVM switch in compact size design
Includes two sets ofVGA/PS2 KVM Cables(1.2M/4ft)
Supports Microsoft Intellimouse, Optical Mouse, Logitech Net Mouse and more
Supports High Video Quality, up to 1920 x 1440 with 200MHz resolution
Supports Dos, Windows 98(SE)/ME/2000/XP/2003 Server, Unix, Linux and more
Hot-Plug feature, add PC or remove the connected PC for maintenance without powering down the KVM Switch or other PC’s
Auto-Scan Mode for monitoring PC’s.
Hot-Key& Push Buttons for PC selection
Keyboard status restored when switching between PCs
LED display for easy status monitoring
Beeping sound for port switching confirming
2-year limited warranty

Hardware

Management

2 Computers

KVM Cable

2 Sets of 1.2M (4ft) High-Grade KVM Cables
(UL2919 for VGA monitor, male to male)

Cable Interface
(all male)

To KVM	To PC
1 x PS/2 Mouse 6-pin Mini Din 1 x PS/2 Keyboard 6-pin Mini Din 1 x VGA/SVGA HDB 15-pin	1 x PS/2 Mouse 6-pin Mini Din 1 x PS/2 Keyboard 6-pin Mini Din 1 x VGA/SVGA HDB 15-pin
