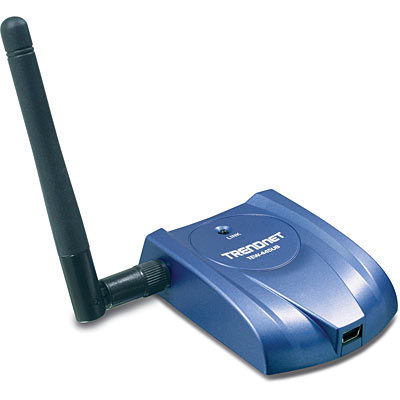

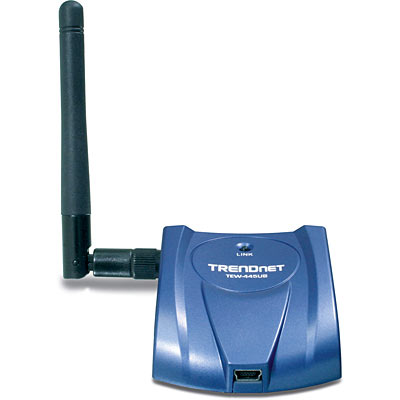

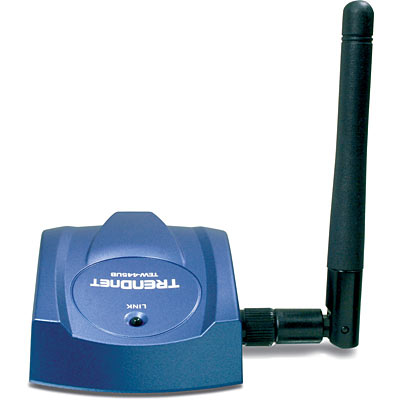

108Mbps Wireless Super G High Power USB Adapter
TEW-445UB (Version 1.0R)

Connect at higher speeds to the weakest wireless signals with this high power wireless device
Compact design that plugs into your laptop or PC
2x the speed of wireless g* with XR technology
Advanced wireless encryption provides robust security

DISCONTINUED PRODUCT

The TEW-445UB (Version 1.0R) has been discontinued. It has been replaced by the TEW-444UB (Version V1.1R). For a list of discontinued products, click here.

Click on image to enlarge

The 108Mbps 802.11g High Power Wireless USB 2.0 Adapter allows you to connect wirelessly at greater range and performance. This device features WEP and WPA encryption and IEEE 802.1x client support for secured wireless data transmission. This 802.11g device seamlessly connects to your wireless network without performance degradation.

Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Standards

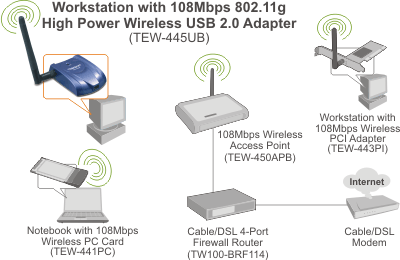

Supports Ad-Hoc (Peer-to-Peer) Mode or Infrastructure (AP-Client) Mode
Supports Super G technology Data Rate up to 108Mbps
Supports eXtended Range Technology with Advanced Power Management
Capable of handling heavy data payloads such as MPEG video streaming
Supports IEEE 802.11e(draft) WMM™ QoS (Wi-Fi Multimedia Quality of Service) Standard
Supports High Output Power up to 23dBm for long range performance
Dynamic Data Rate Scaling at 108, 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b
Maximum Reliability, Throughput and Connectivity with Automatic Data Rate Switching
Compatible with Windows 98SE/ME/2000/XP/Vista
Supports 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK without Performance Degradation
Low Interference and High Susceptibility Guarantee Reliable Performance
Range of 50~100 meters indoor, 150~300 meters outdoor (depends on the environment)
Simple User Setup & Diagnostics Utilities
3-year limited warranty

Hardware
Interface	USB 2.0, 1.1 Compliant
Standards	IEEE802.11b, IEEE 802.11g
Power Consumption	Receive Mode : 300mA @ 5VDC Transmit Mode : 500mA @ 5VDC
Supported OS	Windows 98SE/ME/2000/XP/Vista
Dimensions (LxWxH)	72 x 54 x 17 mm (2.8 x 2.1 x 0.7 inches)
Weight	40 g (1.5 oz.)
Temperature	Operating: 0° ~ 55° C (32° ~ 131° F) Storage: -20° ~ 75° C (-4° ~ 167° F)
Humidity	5% ~ 95%max (Non-condensing)
Certifications	FCC, CE
Wireless
Module Technique	802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g: OFDM (64-QAM, 16-QAM, WPSK, BPSK)
Frequency	2.412 ~ 2.484 GHz
Media Access Protocol	CSMA/CA
Antenna	2dBi External Detachable Antenna
Data Rate (auto fallback)	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps Super G: 108Mbps
Transmit Power	802.11b: 20dBm (typical) @ 11Mbps 802.11g: 19dBm (typical) @ 54Mbps
Receiving Sensitivity	802.11b: -91 dBm @ 11Mbps 802.11g: -76 dBm @ 54Mbps
Encryption	64/128/152-bit WEP (Hex& ASCII), WPA/WPA2 (AES/TKIP), WPA-PSK/WPA2-PSK IEEE 802.1x support for (LEAP/PEAP)
Channels	1~11 (US), 1~13 (EU)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TEW-445UB
Utility & Driver CD-ROM
Multi-Language Quick Installation Guide
1 x USB 2.0 Cable (10cm/4 inches)
