Internet Camera Server
TV-IP100 (Version C1.xR)

View streaming video and record from any Internet connection
Enjoy high quality VGA streaming video
Program motion detection recording, email alerts and more with free software

DISCONTINUED PRODUCT

The TV-IP100 (Version C1.xR) has been discontinued. It has been replaced by the TV-IP100-N (Version v1.0R). For a list of discontinued products, click here.

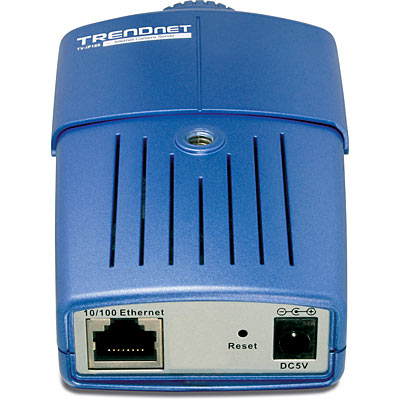

Click on image to enlarge

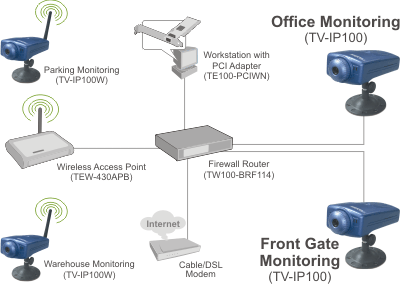

TV-IP100 Internet Camera Server is the perfect device for remote monitoring and transmitting real-time events over the Internet. The TV-IP100 functions as a video/surveillance camera allowing you to view live events with your web browser via Internet or Intranet. Up to 16 cameras can be remotely managed with the bundled IPView software. This Internet Camera Server has VGA quality streaming video, automatic image capture, and event notification via e-mail, making it the ideal solution for Internet video broadcasting applications.

10/100Mbps RJ-45 Ethernet Connection
Supports ActiveX and Java viewing modes
Remote access from web browser for live image viewing
4x digital zoom for close up images
Supports TCP/IP networking, SMTP email, HTTP and other Internet related protocols
Motion detection & recording
Supports email notification
IPView software for multiple camera monitoring, motion detection, image capturing, and video recording (Windows only)
3-year limited warranty

Camera Hardware
Image Sensor
Sensor	¼” Color CMOS Sensor
Resolution	640 x 480 pixel
Fixed Lens	Built-in f: 6.0mm F:1.8
Minimum Illumination	IR On: 2.5 lux IR Off: 2.5 lux
Video/Image
Frame Rate	30fps@QCIF 25fps@CIF 10fps@VGA
Compression	5 levels selection
Resolution	640 x 480, 320 x 240 160 x 120
Frame Rate Setting	1,5,7,15,20,auto(Depends on video format)
Digital Zoom	4X
Control	Yes (Brightness/ Contrast/ Saturation)
Gain/Exposure/ White Balance / Flicker Control	Automatic
Mirror	Horizontal / Vertical
Anti-Flicker	Yes
Software
Browser	IE 5.0 or Netscape 6.0 or above
Application	IPView Pro Software
Supported OS	Windows 98SE, ME, NT4, 2000,XP
Communication
LAN	10/100Mbps Ethernet, Auto-Sensing, Auto-MDIX
Protocol	HTTP, SMTP, FTP, UDP, ARP, ICMP BOOTP, DNS, DHCP, TCP/IP, DDNS, UPnP, PPPoE
Hardware Specifications
System
CPU	RDC R2880
RAM/Flash ROM	8Mbytes/2Mbytes
OS	RTOS
System Requirements (Web Configuration)
CPU	1GHz
Memory	256MB
Resolution	800 x 600 or above
Browser	Internet Explorer 5.0 or above Netscape 6.0 or above
Physical/Environmental
Dimension	195 x 90 x 50mm (7.7 x 3.5 x 2 in.)
Stand Height	120 mm (4.7 in.)
Weight	Camera: 165g(5.8oz.) Stand: 140g (5.0oz.)
Power	5V DC, 2.5A External Adapter
Consumption	5 watt Max
Temperature	Operating: 5°C ~ 40°C (41°F ~ 104°F) Storage: -25°C ~ 50°C (-13°F ~ 122°F)
LED	Power: Blue Link/Active: Orange
Humidity	5% ~ 95% Non-Condensing
Certifications	FCC. CE, VCCI Class B

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Emulator

Package Contents

TV-IP100
Multi-Language Quick Installation Guide
Utility CD-ROM
Power Adapter (5V DC, 2.5A)
RJ-45 Network Cable
Metal Stand
