Product Families » Wireless Networking » 300Mbps Wireless N » 300Mbps Wireless N Adapters » TEW-621PC
300Mbps Wireless N PC Card
TEW-621PC (Version 2.0R)
  • Upgrade your laptopīs wireless to supercharged wireless n
  • 12x the speed and 4x the coverage of wireless g
  • Advanced wireless encryption provides robust security


 DISCONTINUED PRODUCT
The TEW-621PC (Version 2.0R) has been discontinued.  It has been replaced by the TEW-641PC (Version V1.0R). For a list of discontinued products, click here.

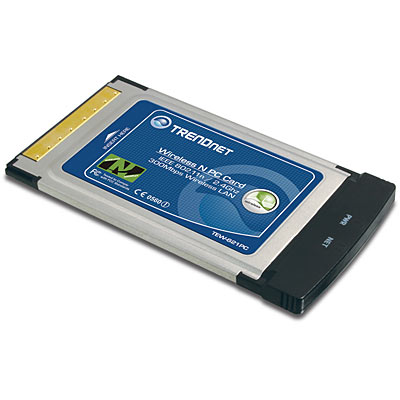

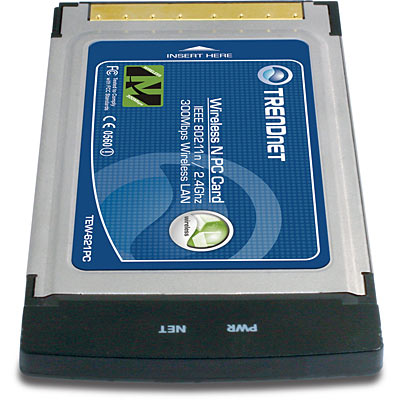

TEW-621PC
Click on image to enlarge

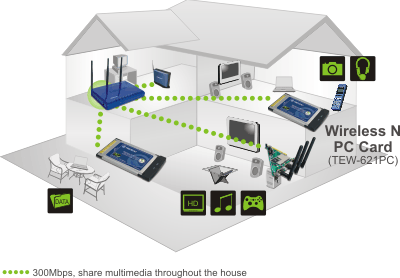

The Wireless N PC Card allows you to connect wirelessly with supercharged speed, range and reliability. This 802.11n device seamlessly connects to your wireless network without performance degradation.

Wireless speeds increase up to300Mbps* when connecting to TRENDnet Wireless N access points or wireless routers. The latest antenna technology increases wireless data coverage throughout homes and businesses. It also supports universal wireless connectivity with 802.11b or 802.11gnetworks.Advanced wireless encryption provides secured transmissions. Increased speed and throughput makes it the perfect solution to fulfill your multimedia needs.

**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.


RoHS Compliant

  • Wi-Fi compliant with the wireless IEEE 802.11n standard
  • Extreme wireless performance: Up to 12x the speed of wireless g*(IEEE 802.11g)
  • Up to 4x the coverage of wireless g*
  • Advanced wireless encryption: WEP, WPA, WPA2, WPA-PSK and WPA2-PSK
  • 2 internal high gain antennas maximize wireless n performance with Multiple Input Multiple Output (MIMO) technology
  • Intuitive user setup and diagnostics utilities
  • Backwards compatible with wireless g and wireless b standards (IEEE 802.11b/g)
  • Supports Ad-hoc (Client-Client) and Infrastructure (AP-Client) mode
  • Maximum reliability, throughput and connectivity with automatic data rate switching and dynamic data rate scaling
  • Seamless roaming between wireless b, wireless g and wireless n networks
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
  • Compatible with Windows 7/Vista/XP/2000 operating systems
  • 3-year limited warranty
Hardware

Interface

32-Bit 3.3V CardBus Type II card

Standards

IEEE 802.11b, IEEE 802.11g and IEEE 802.11n

LED Indicator

PWR (power), NET (link activity)

Power Consumption

650mA (max)

Supported OS

Windows 7(32/64-bit) / Vista(32/64-bit) / XP(32/64-bit) / 2000

Dimensions (LxWxH)

98 x 54 x 3mm (3.9 x 2.1 x 0.13 inches)

Weight

40g (1.3oz)

Temperature

Operating:0° ~ 40° C(32° ~104° F)
Storage:-25° ~ 70° C (-13° ~158° F)

Humidity

10% ~ 90% max (non-condensing)

Certification

FCC, CE

Wireless

Module Technique

802.11b: CCK (11 and5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
802.11g:OFDM with BPSK, QPSK and 16/64-QAM sub-carrier modulations
801.11n:OFDM, 64-QAM, coding rate 5/6

Antenna

Built-in 2 PCB antennas

Frequency

2.412 ~ 2.484 GHz

Media Access Protocol

CSMA/CA

Data Rate (auto fallback)

  • 802.11b:11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g:54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • 802.11n(draft) : up to 300Mbps

Output Power

  • 802.11b: 18dBm (typical)
  • 802.11g: 15dBm (typical)
  • 802.11n (draft 2.0): 7dBm (typical) with 130Mbps/HT20 & 270Mbps/HT40

Receiving Sensitivity

  • 802.11b:-86dBm (typical) @ 11mpbs
  • 802.11g:-74dBm (typical) @ 54Mbps
  • 802.11n(draft 2.0) : -70dBm @ 130Mbps/HT20 &-65dBm @ 270Mbps/HT40

Encryption

64/128-bit WEP (Hex & ASCII), WPA/WPA2 (TKIP/AES), WPA-PSK/WPA2-PSK, 802.1x

Channels

1~11 (US), 1~13 (EU)


TEW-621PC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TEW-621PC
  • CD-ROM (Utility&Driver)
  • Multi-Language Quick Installation Guide
