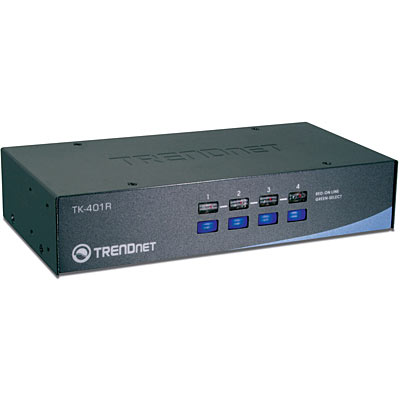

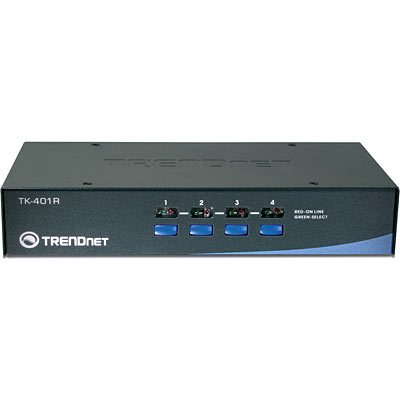

4-Port PS/2 Rack Mount KVM Switch
TK-401R (Version 1.1R)

4-port KVM switch with VGA and PS/2 connection to computers
Device monitoring with Auto-Scan and audible feedback
High quality 1920x1440 resolution for a crisp display
Supports most operating systems

Click on image to enlarge

TK-401R 4-Port KVM Switch allows you to manage up to 4 PC's with just one keyboard, monitor, and mouse. Switch between PC's with a simple press of a button! Eliminate the hassle of cable swapping and save money and space with TK-401R. With its rack-mount kit and slim one unit height, it is perfect for mounting on EIA-19" rack in the Equipment Room and Computer Lab. With its Hot-Plug, Auto-Scan, Audible Feedback, and Hot-Key operations, the TK-401R is the perfect choice for managing multiple PCs.

4-Port PS/2 KVM Switch
Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse and more
Compliant with DOS, Windows 3.x/98(SE)/ME/NT/2000/XP/2003 Server, Unix, Linux, Netware and more
High video quality - up to 1920 x 1440 VGA resolution
Auto-Scan and LED display for monitored PCs
Keyboard status restored when switching between PC’s
Beeping sound for port switching confirmation
Hot-Key or push button switching
Plug & Play and Hot-Pluggable
Standard rack mount design
2-year limited warranty

Hardware
Management	4 Computers

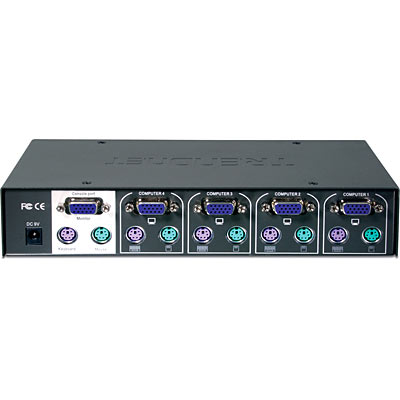

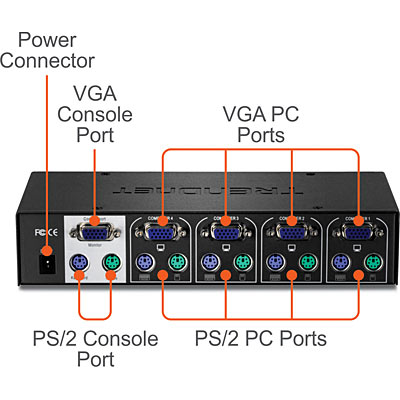

PC Port (all female)	4 x PS/2 Mouse 6-pin Mini Din 4 x PS/2 Keyboard 6-pin Mini Din 4 x VGA HDB 15-pin
Console Port (all female)	1 x PS/2 Mouse 6-pin Mini Din 1 x PS/2 Keyboard 6-pin Mini Din 1 x VGA HDB 15-pin
Supported OS	Dos, Windows 3.x/95/98(SE)/ME/NT/2000/XP/2003 Server Netware, Unix, Linux and more
PC Selection	Hot-Key or Push Buttons
Auto-Scan Interval	5-99 seconds
LEDs	On-line (Red), Select (Green)
Power Adapter	9V DC 800mA External Power Adapter (Optional, not included)
Dimensions	202 x 104 x 45mm (8.0 x 4.1 x 1.8in.)
Weight	835g (1.84lb)
Temperature	Operating: 0°C~40°C (32°F~104°F) Storage: -20°C~60°C (-4°F~140°F)
Humidity	0%~80% (non-condensing)
Certification	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TK-401R
Multi-language quick installation guide
Rack Mount Kit
