Product Families » Modems » Dial-Up Modems » TFM-560U

TRENDnet’s 56K (V.90) High Speed USB Fax Modem
TFM-560U

DISCONTINUED PRODUCT

The TFM-560U has been discontinued. For a list of discontinued products, click here.

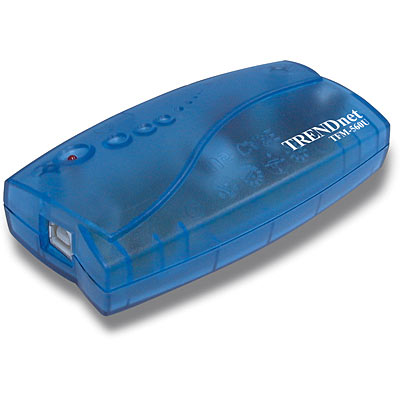

Click on image to enlarge

Experience the fast Internet access with TRENDnet’s 56Kbps (V.90) High Speed USB Fax Modem. Simply plug it into the USB port on the PC or notebook computer for easy and fast connectivity. TRENDnet’s USB Fax Modem can be connected to or disconnected from the computer without turning off the system. With the highest possible data communication rates at 56Kbps/V.90, reliable error-free transmission and widespread interoperability with other users can be accomplished. TRENDnet’s TFM-560U provides fast and easy installation with free communication software.

Supports V.90
High speed 56Kbps data download and 14.4Kbps fax communication
Industry standard protocol for data compression and error correction
No power supply needed
Wake-up on ring
OnNow power management
Low power consumption
Worldwide country support
Compatible with Windows 98SE / ME/ 2000/XP
Free Communication Software
5-year limited warranty


Hardware
Standards:	V.90, V.34, V.32bis, V.32, , V.27ter, V.23, V.22bis, V.22, V.21, Bell 212/103
Data Compression:	V.42bis, MNP Class 5
Error Correction:	V.42, MNP Class 2-4
Host Interface:	USB bus
Fax Protocol:	Group 3 compatible, Class 1 fax: V.17, V.29, V.27ter, V.21
Fax Speed:	14.4K, 12K, 9600, 7200, 4800, 2400, 300 \
System Requirements:	Pentium 166MMX processor (200MHz recommended), 16MB RAM/USB port, Windows 98SE / ME/ 2000/XP
Dimensions:	114 x 51.8 x 25.4 mm (4.5 x 2 x 1 inches)
Weight:	99 g (3.5 oz.)
Certifications:	FCC, CE, CTR 21

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
