32-bit 10/100/1000Mbps Copper Gigabit PCI Adapter
TEG-PCITXR (Version A)

Install a Gigabit Ethernet port on your PC in minutes
Save time by sharing files and accessing data quickly
Experience 2000Mbps speed in Full-Duplex mode

DISCONTINUED PRODUCT

The TEG-PCITXR (Version A) has been discontinued. It has been replaced by the TEG-PCITXR (Version 3.xR). For a list of discontinued products, click here.

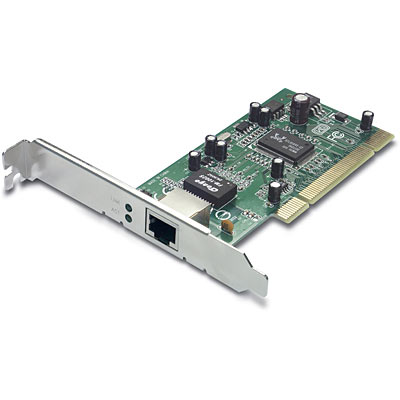

Click on image to enlarge

TRENDnet´s TEG-PCITXR 32-bit 10/100/1000Mbps Copper Gigabit Ethernet adapter is a high-bandwidth network adapter that auto-senses 10/100/1000Mbps connection speed, half/full-duplex modes, and MDI-X media type. It includes the latest VLAN tagging to efficiently utilize network bandwidth for maximum data throughput. With its 2000Mbps bandwidth capacity, TRENDnet´s TEG-PCITXR is ideal for high traffic Power Server and Video-Conferencing Workstation.

IEEE 802.3, 802.3u and 802.3ab compliant
Support 32-Bit PCI Local Bus Master high-speed operation of Rev. 2.2 specification
One RJ-45 port with Auto Sensing of 10Mbps Ethernet, 100Mbps Fast Ethernet, and 1000Mbps Gigabit Ethernet
Auto MDI-X medium type detection
Supports Full-Duplex mode and doubles the bandwidth to 20/200/2000Mbps
Supports Win98/ME/NT4/2000/XP, Linux and Netware
Built-in FIFO (8K/64K) buffer reduces overhead of memory transfers
Supports Wake-on-LAN for remote wake up
Supports IEEE 802.1Q VLAN tagging
Plug and Play Installation
5-year limited warranty


Hardware
Standards:	IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet, ANSI/IEEE 802.3 Auto-Negotiation
Protocol:	CSMA/CD
Data Transfer Rate:	Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex) Fast Ethernet: 100mbps (Half-Duplex), 200Mbps (Full-Duplex) Gigabit Ethernet: 1000Mbps (Half-Duplex), 2000Mbps (Full-Duplex)
Cabling:	Ethernet: 2-pair UTP CAT 3,4,5, EIA.ITA-568 100-ohm screened twisted pair (STP) Fast Ethernet: 2-pair UTP CAT 5, EIA/TIA-568 100ohm screened twisted pair (STP) Gigabit Ethernet: 4-pair UTP Cat 5/Cat 5E (recommend), EIA/TIA-568 100-ohm screened twisted pair (STP)
Host Interface:	32-bit PCI Rev.2.1/2.2
Connector:	Single RJ-45 UTP/STP, Auto MDI-X
Diagnostic LEDs:	Link, Activity
Power Consumption:	4.75 watts (max)
Driver Support:	Windows 98/ME/NT4/2000/XP, Linux Kernel 2.2.x/2.4.x, Netware 5.x/6.x
Dimensions:	120 x 59 x 15 mm (4.7 x 2.3 x 0.6 inch)
Weight:	68.04g (2.4oz.)
Temperature:	Operating: 0° to 40° C (32° to 104°F) Storage: -10° to 70° C (14° to 158°F)
Humidity:	Operating: 10 % to 90 % Storage: 5% ~ 90%
Certifications:	FCC Class B, CE Class B, VCCI Class B

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
