Wireless G and Bluetooth® USB Adapter
TBW-103UB (Version 1.0)

Use Bluetooth and wireless g technology at the same time
Network your Bluetooth and WiFi devices with one single adapter
An extendable antenna optimizes wireless signal strength

DISCONTINUED PRODUCT

The TBW-103UB (Version 1.0) has been discontinued. It has been replaced by the TBW-106UB (Version 1.0R). For a list of discontinued products, click here.

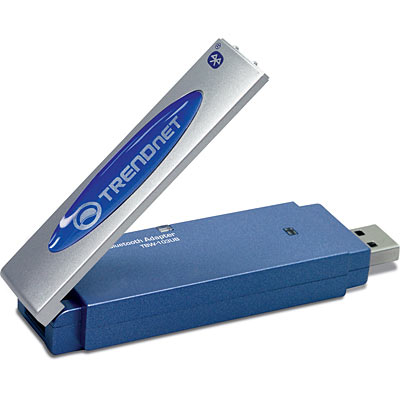

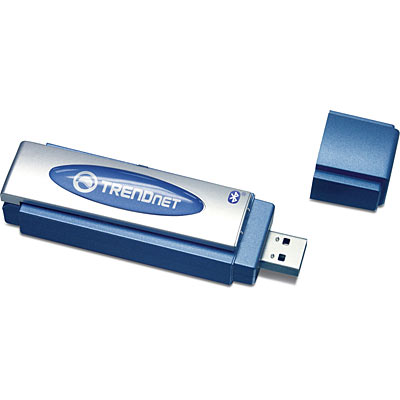

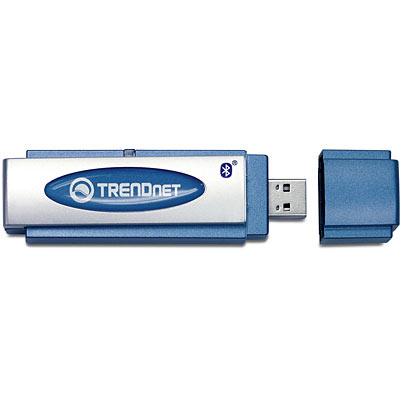

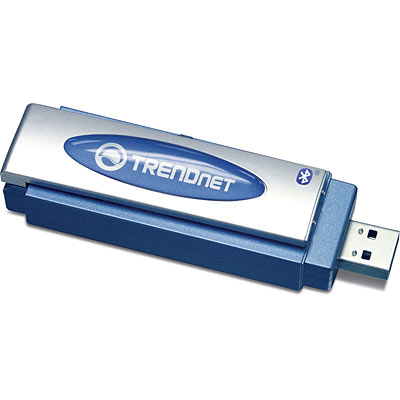

Click on image to enlarge

The 54Mbps 802.11g Wireless USB 2.0 & Bluetooth Combo Adapter simultaneously provides Bluetooth and Wi-Fi connections, allowing you to concurrently link to Wi-Fi Internet hotspots and Bluetooth devices. Experience the power of downloading ring tones, iTunes, or digital pictures from a wireless Internet connection and transfer the same files seamlessly into your Bluetooth enabled phone. The external antenna can be adjusted easily to improve signal strength gain and transmission.

Wireless

Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Standards
Supports Ad-Hoc (Peer-to-Peer) Mode or Infrastructure (AP-Client) Mode
Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b
Supports 64/128/256-bit WEP and WPA Encryptions
Range of 100 meters indoor, 400 meters outdoor (depends on the environment)

Bluetooth

Compliant with Bluetooth v1.2 and Class 2 Operation
Fully Bluetooth v1.2 BQB Qualified
Compatible with Microsoft HID Devices
Support up to 7 active and 8 parked slaves
Bluetooth Range of up to 10 meters

General

Uses 2.4 GHz Frequency Band, which Complies with Worldwide Requirements
Compatible with Windows 2000/XP (SP1/SP2)
Simple User Setup & Diagnostics Utilities
3-year limited warranty

Hardware
Interface	USB 2.0, 1.1 Compliant, Bluetooth 1.2 Class 2
Dimensions (LxWxH)	100 x 30 x 15 mm (3.9 x 1.2 x 0.6 inches)
Weight	32g (1 oz.)
Temperature	Operating: 0° ~ 60° C (32° ~ 140° F) Storage: -20° ~ 70° C (-4° ~ 158° F)
Humidity	5% ~ 95%max (Non-condensing)
Safety Emissions	FCC, CE
Wireless
Module Technique	802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11g: OFDM
Frequency	2.412 ~ 2.484 GHz
Data Rate (auto fallback)	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Transmit Power	802.11b: 16dBm ± 2dBm; 802.11g: 13dBm ± 2dBm 802.11g: 15dBm @ 54Mbps
Receiving Sensitivity	802.11b: < -70dBm @PER < 10%, All Rate 802.11g: < -70dBm @PER < 8%, All Rate
Encryption	64/128/256-bit WEP, AES-CCM, and TKIP
Channels	1~11 (US), 1~13 (EU)
Bluetooth
Module Technique	Gaussian Frequency Shift Keying (GFSK)
Frequency	2.400 ~ 2.483.5 GHz
Data Rate	Up to 723Kbps
Range	Up to 10 meters
Encryption	128-bit Encryption


Networking Solution

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TBW-103UB
Utility & Driver CD-ROM
Multi-Language Quick Installation Guide
