Product Families » Wireless Networking » Wireless G » Wireless G Adapters » TEW-429UF
54Mbps Wireless G USB Adapter w/ HotSpot Detector w/ 512Mb Storage
TEW-429UF
  • Find wireless networks in seconds without turning on your laptop
  • LCD displays the network name, type and strength of detectable wireless networks
  • Save data on the built in flash drive
  • Network your laptop or PC with proven wireless g performance and reliability


 DISCONTINUED PRODUCT
The TEW-429UF  has been discontinued.  For a list of discontinued products, click here.

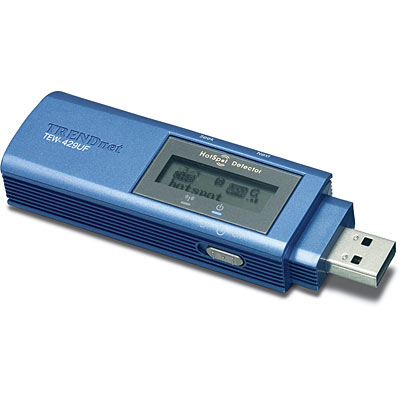

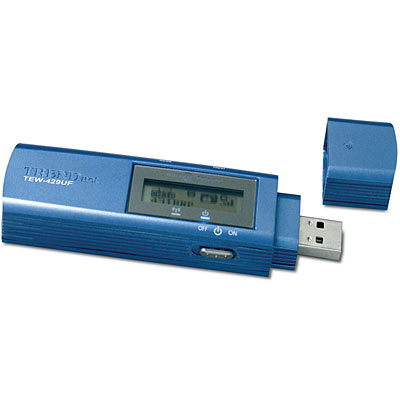

TEW-429UF
Click on image to enlarge

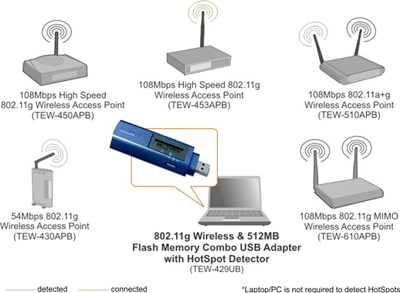

The 802.11g Wireless & 512MB Flash Memory Combo USB Adapter with HotSpot Detector incorporates a Wi-Fi Detector, a wireless adapter, and a USB flash drive into an all-in-one mobile solution. Scan nearby hotspots and view site survey information with the built-in LCD. Store files such as business presentations, family photos, or other important documents.


RoHS Compliant

  • Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Standards
  • Detects IEEE 802.11b, and 802.11g HotSpots and Connects to IEEE 802.11b or 802.11g Wi-Fi Devices
  • 512MB Flash Memory Drive with 9MB/s read and 8MB/s write speed performance
  • Auto-install Loads Driver and Utility from the Flash Drive Automatically.
  • Supports Ad-Hoc (Peer-to-Peer) Mode or Infrastructure (AP-Client) Mode
  • Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
  • Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b
  • Built-in Rechargeable Li-on Battery (Automatically charge when connected to the USB port)
  • Hotspot Finder displays SSID, Channel, Encryption Types and Signal Strength information
  • Maximum Reliability, Throughput and Connectivity with Automatic Data Rate Switching
  • Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK without Performance Degradation
  • Low Interference and High Susceptibility Guarantee Reliable Performance
  • Wireless Function Compatible with Windows 98SE/ME2000/XP/ (SP1/SP2)/2003 Server/Vista
  • Range of 35~100 meters indoor, 100~300 meters outdoor (depends on the environment)
  • Simple Plug & Play Installation, No CD Required & Diagnostics Utilities
  • 3-year limited warranty
Hardware
Interface USB 2.0, 1.1 Compliant
LCD / LED 96 x 32 pixels / PWR, ACT
Control Power On/Off, Scan, Next
Rechargeable Battery 180mAh
Power Consumption 280mA
Dimensions (LxWxH) 97.3 x 28.6 x 14 mm (3.8 x 1.1 x 0.6 inches)
Weight 35g (1.2 oz.)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -20° ~ 70° C (-4° ~ 158° F)
Humidity 10% ~ 90%max (Non-condensing)
Safety Emissions FCC, CE
Wireless
Module Technique 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
802.11g: OFDM
Frequency 2.412 ~ 2.484 GHz
Media Access Protocol CSMA/CA
Compatible OS Windows 98SE/ME2000/XP(SP1/SP2)/2003 Server/Vista
Data Rate (auto fallback) 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Transmit Power 802.11b: 18dBm @ 11Mbps / 802.11g: 15dBm @ 54Mbps
Receiving Sensitivity 802.11b: 11Mbps 10 – 5 BER @ -87dBm
802.11g: 54Mbps 10 – 5 BER @ -72dBm
Encryption 64/128-bit WEP (Hex or ASCII), WPA/WPA2, and WPA-PSK/WPA2-PSK
Channels US: 1~11, EU: 1~14
Flash Drive
Compatible OS No Driver Required: Windows ME/2000/XP/2003, Mac OS 9.x +, Linux 2.4 + Driver Required: Windows 98/98SE

*Please note: Some of the listed capacity is used for formatting and other functions (20MBis reserved for Userīs Guide and Driver Utility) and thus is not available for data storage. Please see Userīs Guide for detail.

TEW-429UF

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TEW-429UF
  • Userīs Guide CD-ROM
  • Multi-Language Quick Installation Guide
  • USB 2.0 Cable (15cm)
