Product Families » Wireless Networking » Wireless Super G » Wireless Super G Adapters » TEW-441PC
108Mbps Wireless Super G PC Card
TEW-441PC (Version A2.0R)
  • Upgrade your laptop’s wireless connection in minutes
  • 2x the speed of wireless g* with XR technology
  • Advanced wireless encryption provides robust security


 DISCONTINUED PRODUCT
The TEW-441PC (Version A2.0R) has been discontinued.  It has been replaced by the TEW-641PC (Version V1.0R). For a list of discontinued products, click here.

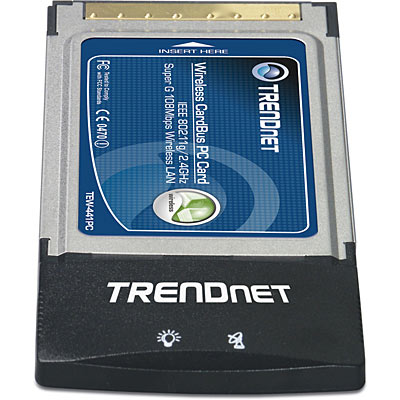

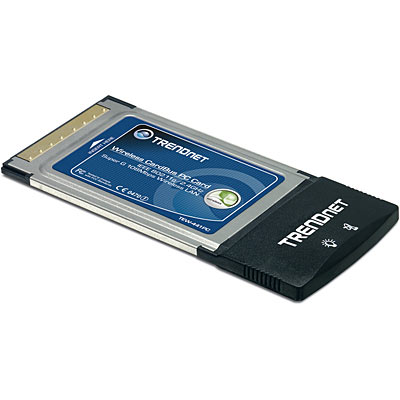

TEW-441PC
Click on image to enlarge

TEW-441PC 108Mbps Wireless CardBus PC Card allows laptop users the mobile freedom to connect at home, in the office or to wireless hotspots on the road. It complies with the IEEE 802.11g standard, making it backward compatible with 802.11b networks for assured compatibility as you roam between networks. Advanced WPA/WPA2 encryption is supported to provide secure access for your data. Cut the wires and move freely with TRENDnetīs 802.11g wireless products.

*Note: Coverage and Speed performance might vary depending on the network environment.


RoHS Compliant

  • Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Standards
  • Uses 2.4 GHz Frequency Band, which Complies with Worldwide Requirements
  • Supports Ad-Hoc (Peer-to-Peer) Mode or Infrastructure (AP-Client) Mode
  • Supports Super G technology Data Rate up to 108Mbps
  • Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
  • Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b
  • Maximum Reliability, Throughput and Connectivity with Automatic Data Rate Switching
  • Compatible with Windows 98SE, ME, 2000, XP (32-bit), Vista (32/64-bit)
  • Supports 64/128-Bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK
  • Low Interference and High Susceptibility Guarantee Reliable Performance
  • Range of 35~100 meters indoor, 100~300 meters outdoor (depends on the environment)
  • Simple User Setup & Diagnostics Utilities
  • 3-year limited warranty
Hardware
Interface 32-Bit CardBus Type II Card
Standards IEEE 802.11b and IEEE 802.11g
LED Indicator Power, Link
Power Consumption
  • Receive Mode: 250mA
  • Transmit Mode: 350 mA
Supported OS Windows 98SE, ME, 2000, XP (32-bit), Vista (32/64-bit)
Dimensions (LxWxH) 118 x 54 x 7mm (4.65 x 2.1 x 0.2 inches)
Weight 36g (1.27oz)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity 10% ~ 95%max (Non-condensing)
Certification FCC, CE
Wireless
Module Technique
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM
Frequency 2.412 to 2.484 GHz (Industrial Scientific Medical Band)
Media Access Protocol CSMA/CA with ACK
Data Rate (auto fallback)
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • Super G: 108Mbps
Transmit Power
  • 17dBm (typically) @ 802.11b
  • 14dBm (typically) @ 802.11g
Receiving Sensitivity
  • 11Mbps 8% PER @ -85 dBm (typical)
  • 54Mbps 10% PER @ -75 dBm (typical)
Security 64/128-Bit WEP (Hex or ASCII), WPA/WPA2, WPA-PSK/WPA2-PSK
Channels 1~13 Channels
*Local regulatory restrictions may apply



TEW-441PC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TEW-441PC
  • Utility & Driver CD-ROM
  • Multi-Language Quick Installation Guide
