Advanced High-Speed Bluetooth® USB 2.0 Adapter
TBW-104UB (Version 2.0R)

Network your Bluetooth™ devices in minutes
Enjoy crystal clear interference-free sound quality
Connect wirelessly up to 100 meters (328 ft.) away

DISCONTINUED PRODUCT

The TBW-104UB (Version 2.0R) has been discontinued. It has been replaced by the TBW-106UB (Version 1.0R). For a list of discontinued products, click here.

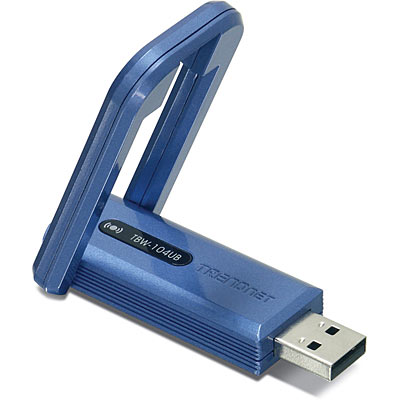

Click on image to enlarge

The USB 2.0 Bluetooth Adapter allows you to make wireless short-range connections between your computer and Bluetooth-enabled devices. This Bluetooth v2.0 utilizes Enhanced Data Rate (EDR) to allow for data rates up to 3Mbps. The Bluetooth adapter can easily connect to your Bluetooth-enabled devices from up to 100 meters away.

Compliant with Bluetooth v2.0 Specification with EDR (Enhanced Data Rate) support
Backward compatible with Bluetooth v1.1 and v1.2 devices
Support Full-Speed Bluetooth operation with Full Piconet support
Support AFH (Adaptive Frequency Hopping) and Fast Connection
Up to 3Mbps Access Data Rate and Low Power Consumption
Compatible with Windows 2000/XP & MCE (Media Center Edition) Operating Systems
Enable computers to connect Bluetooth enabled devices such as printers, headset, audio/video, basic Image, PDAs, and mobile phones
Compliant with Class I Bluetooth Operations
Communicates wirelessly up to 100 meters (328 ft.) (depends on the environment)
Trouble free Plug-n-Play Installation
2-year limited warranty


Hardware
Standards	Class I Bluetooth v2.0 with EDR Backward Compatible with Bluetooth v1.1, v1.2 USB 1.1, 2.0
Antenna	External Dipole Antenna
Supported OS	Windows 2000/XP & MCE
Power Consumption	Typical: 95mA; idle: 12mA Tx max: 136mA @19dBm; Rx max: 45mA
Dimensions	71.25 x 35.60 x 11.25 mm (2.8 x 1.4 x 0.44 in.)
Weights	10 g (0.35 oz.)
Temperature	Operation: 0°~ 50°C (32°F~122°F) Storage: -20°~ 70°C (-4°F~158°F)
Humidity	10~90%
Emissions	CE, FCC


Bluetooth
Frequency	2.4~2.4835 GHz ISM Band
Spread Spectrum	Frequency Hopping and Adaptive Frequency Hopping
Module Technique	GFSK, DQPSK(2Mbps) and 8DPSK(3Mbps)
Profile Support	DUN (Dial-up Networking) FAX LAP (LAN Access Profile) SPP (Serial Port Profile) HID (Human Interface Device) HCRP (Hardcopy Cable Replacement Profile) FTP (File Transfer Profile) OPP (Object Push Profile) A2DP (Advanced Audio Distribution Profile) GAVDP (Generic Audio/Video Distribution Profile) HSP (Headset Profile) PAN (Personal Area Networking) BIP (Basic Image Profile) SYNC (Synchronization Profile) AV (Audio Video) GOEP (Generic Object Exchange Profile)
RF Output Power	17dBm (typical)
Receiving Sensitivity	-90dBm@0.1%BER (typical )
Data Rate	Up to 3Mbps
Data Range	Up to 100m (328 ft.) depends on environment


Bluetooth Solution

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TBW-104UB
Quick Installation Guide
CD-ROM
(Driver/User´s Guide)
USB Cable (15cm/6 in)
