8-Port Gigabit Switch
TEG-S8 (Version 1.0R)

Build a reliable high-performance Gigabit network in minutes
Easy Plug and Play installation
Auto-Negotiation optimizes networking speeds for all 8 Gigabit ports

DISCONTINUED PRODUCT

The TEG-S8 (Version 1.0R) has been discontinued. For a list of discontinued products, click here.

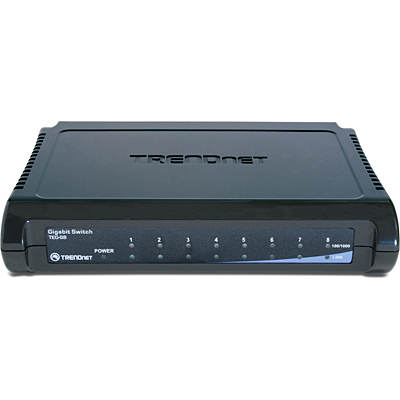

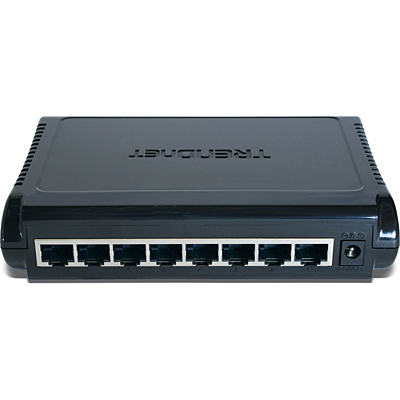

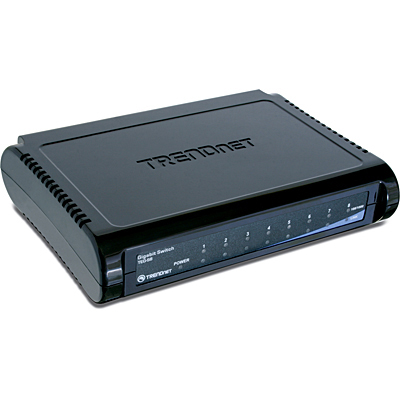

Click on image to enlarge

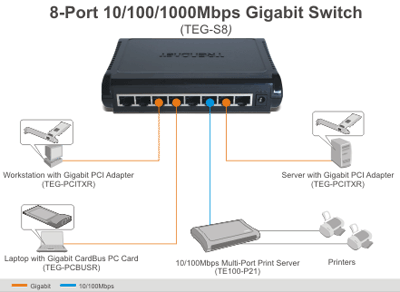

TEG-S8 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100/1000Mbps network speeds and half/full duplex modes. Plug and Play provides cost-effective and high performance solutions.

8 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit RJ-45 ports
Compliant with IEEE 802.3 / IEEE 802.3u standards
IEEE 802.3x Flow Control support
Provide 8K MAC address entries
Supports Jumbo Frame of up to 9728bytes packet size
Compliant with Windows, Linux, and Mac Operating Systems
Store-and-Forward Switching method
Non-blocking Architecture

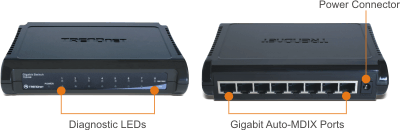

Diagnostic LEDs
Plug & Play
5-year limited warranty


Hardware
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control
Network Media	Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm
Data Rate	Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex) Gigabit: 2000Mbps (Full-Duplex)
Switch Fabric	16Gbps Forwarding Capacity
Topology	Star
Interface	8 10/100/1000Mbps Auto-MDIX RJ-45 Ports
Filtering Table	8Kbytes entries per device
Buffer Memory	8Kbytes per device
Power Consumption	5.6 watts (max)
Diagnostic LED	Power, Link/ACT, 100Mbps/1000Mbps
Power Adapter	Switching Power 5VDC 2.5A / Linear Power 12VDC 1A
Dimension	150 x 105 x 33mm (5.9 x 4.1 x 1.3 inches)
Weight	225g (8 oz)
Temperature	Operating: 0° ~ 50° C (32° ~ 122° F)
Humidity	10%~90% (Non-Condensing)
Certification	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TEG-S8 (v1.0R)
Multi-Language Quick Installation Guide
Power Adapter
