TRENDnet | Products | Wireless G Adapters

Product Families » Wireless Networking » Wireless G » Wireless G Adapters » TEW-429UB

54Mbps 802.11g Wireless USB 2.0 Adapter with HotSpot Detector
TEW-429UB (Version A)

Find wireless networks in seconds without turning on your laptop
LCD displays the network name, type and strength of detectable wireless networks
Network your laptop or PC with proven wireless g performance and reliability

DISCONTINUED PRODUCT

The TEW-429UB (Version A) has been discontinued. It has been replaced by the TEW-429UB (Version C2.0R). For a list of discontinued products, click here.

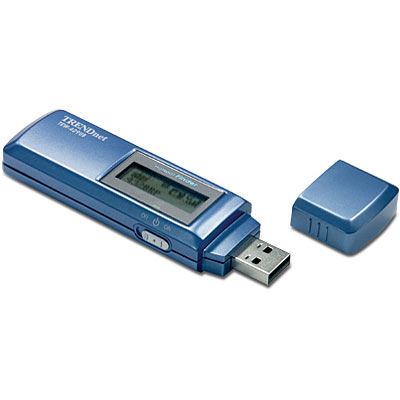

Click on image to enlarge

The 802.11g Wireless USB 2.0 adapter combines features from Wi-Fi detectors and standard 802.11g wireless adapter to deliver the perfect solution for mobile users. It has built-in LCD display helps you determine an access point’s security scheme (WPA, WEP), signal strength, and wireless standard (802.11b or 802.11g) without turning on your laptop!

Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Standards
Detects IEEE 802.11b, and 802.11g HotSpots
Connects to IEEE 802.11b or 802.11g Wi-Fi Devices
Supports Ad-Hoc (Peer-to-Peer) Mode or Infrastructure (AP-Client) Mode
Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b
Built-in Rechargeable Li-on Battery (Automatically charge when connected to the USB port)
Hotspot Finder displays SSID, Channel, Security Enable/Disable and Signal Strength information
Supports Custom Search by Signal Strength, SSID or Encryption.
Maximum Reliability, Throughput and Connectivity with Automatic Data Rate Switching
Supports 64/128-bit WEP, WPA and WPA-PSK without Performance Degradation
Low Interference and High Susceptibility Guarantee Reliable Performance
Compatible with Windows 98SE/ME2000/XP (SP1/SP2)/2003 Server
Range of 35~100 meters indoor, 100~300 meters outdoor (depends on the environment)
Simple User Setup & Diagnostics Utilities
3-year limited warranty

Hardware
Interface	USB 2.0, 1.1 Compliant
LCD / LED	96 x 32 pixels / PWR, ACT
Control	Power On/Off, Scan, Next
Rechargeable Battery	180mAh
Power Consumption	280mA
Dimensions (LxWxH)	95 x 28 x 15 mm (3.7 x 1.1 x 0.5 inches)
Weight	30g (1oz.)
Temperature	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -20° ~ 70° C (-4° ~ 158° F)
Humidity	10% ~ 90%max (Non-condensing)
Certification	FCC, CE
Wireless
Module Technique	802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11g: OFDM
Frequency	2.412 ~ 2.484 GHz
Media Access Protocol	CSMA/CA
Data Rate (auto fallback)	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Transmit Power	802.11b: 18dBm @ 11Mbps 802.11g: 15dBm @ 54Mbps
Receiving Sensitivity	802.11b: 11Mbps 10 ^{– 5} BER @ -87dBm 802.11g: 54Mbps 10 ^{– 5} BER @ -72dBm
Encryption	64/128-bit WEP (Hex or ASCII), WPA, and WPA-PSK
Channels	1~11 (US), 1~13 (EU)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
