TRENDnet | Products | USB 1.0 / 1.1 / 2.0 Devices

Product Families » USB / FireWire » USB 1.0 / 1.1 / 2.0 Devices » TU2-EX5

USB Extender Cable
TU2-EX5 (Version v1.0R)

Extend your USB port 5 meters (16.5ft) with this high quality extender
Repeats the USB signal up to 25 meters without signal degradation
Transfer data and music at speeds up to 480Mbps

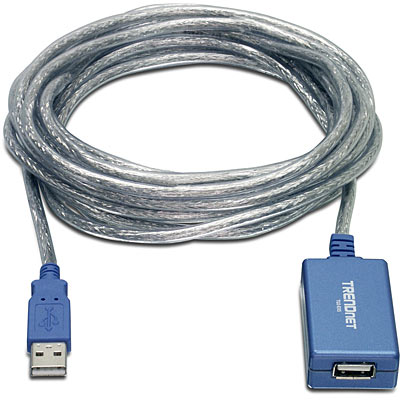

Click on image to enlarge

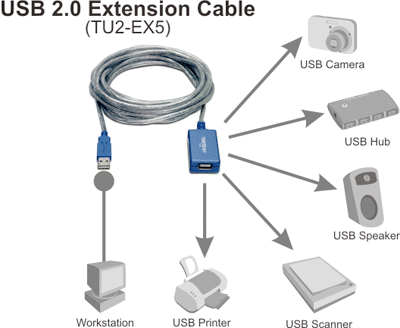

The 5-Meter USB 2.0 Extension Cable is perfect for extending the distance between USB devices and your computer. Up to 5 extender cables can be linked together. This device repeats the USB signal up to 25 meters with maximum reliability and performance.

Compliant with USB 2.0 , 1.1 (Type A)
Fully Forward and Backward Compatible with USB 1.1 Devices
Supports all USB speeds: High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps)
Supports up to 5 USB extension layers
Repeats the USB signal to maximum consistency and performance at distance up to 25M (82ft.)
Compatible with Windows 98SE/ME/2000/XP (32/64-bit)/2003 Server/Vista (32/64-bit) and Mac OS X Operating Systems
Powered by USB port. No External Power Adapter Required
Supports Plug & Play for Easy Installation
2-year limited warranty

Hardware
Interface	USB 2.0, 1.1 Compliant (Type A)
Supported OS	Windows 98SE/ME/2000/XP (32/64-bit)/2003 Server/Vista (32/64-bit) and Mac OS X
Cable Length	5 Meters (16.4 feet)
Max Daisy-Chain Supported	5
Data Rate	High-Speed: 480Mbps Full-Speed: 12Mbps Low-Speed: 1.5Mbps
Power Mode	Bus Powered
Power Consumption	500mA Maximum
Connector	USB Type A Male to Female
Dimensions	48 x 28 x 16mm(1.9 x 1.1 x 0.6in.)
Weight	192g (6.8oz.)
Temperature	Operating: 0°C ~ 40°C (32°F ~ 104°F) Storage: -5°C ~ 55°C (14°F ~ 131°F)
Humidity	85% Maximum
Certification	CE/FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TU2-EX5
Multi-Language Quick Installation Guide
