Micro Bluetooth® USB Adapter
TBW-107UB (Version 1.0R)

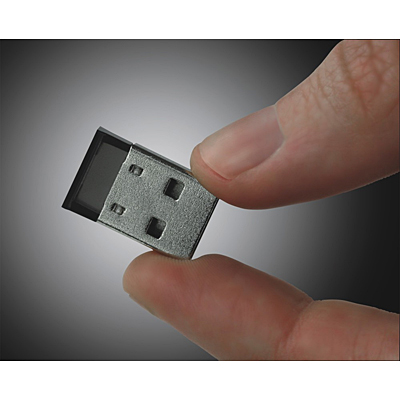

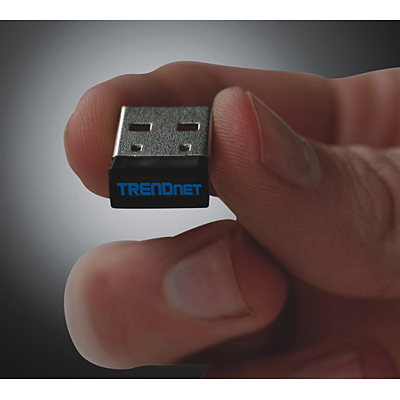

This micro-device is slightly larger than a penny
Turn your laptop or desktop computer into a Bluetooth enabled workstation
Connect Bluetooth enabled devices such as cell phones and headsets
Experience crystal clear sound quality for distances of up to 10m (32.8ft)

Click on image to enlarge

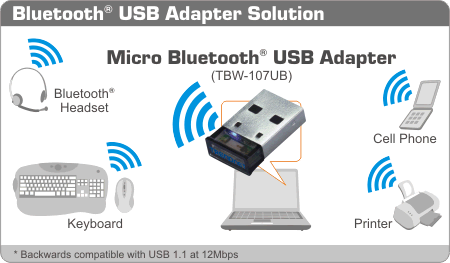

The Micro Bluetooth® USB Adapter (Model TBW-107UB) networks Bluetooth enabled devices such as cell phones, keyboards, and headsets. Slightly larger than the size of a penny, simply plug this micro-device into an available USB port on your laptop or desktop and experience exceptional Bluetooth® connectivity.

Connect as many as 7 Bluetooth® devices at distances of up to 10m (32.8ft). Enhanced Data Rate (EDR) technology transfers your data quickly. Adaptive Frequency Hopping (AFH) minimizes interference from other wireless devices and advanced wireless encryption protects your network.

Connect Bluetooth-enabled devices such as printers, headsets, audio/video devices and mobile phones
Compliant with Class II Bluetooth V2.1+ compliant
Enhanced Data Rate (EDR) support
Bluetooth IVT software technology
Adaptive Frequency Hopping (AFH) support
Enhanced SCO (eSCO) for crisp and clear voice quality
Compatible with Windows 7/Vista/XP/2000
Communicates wirelessly up to 10 meters (32.8ft.) (depends on environment)
Trouble free Plug & Play installation
2-year limited warranty

Hardware
Standards	Class II Bluetooth v2.1+ with EDR, SB 2.0 Backwards compatible with Bluetooth v1.1, v1.2, v2.0 and USB 1.1
Antenna	Internal
Supported OS	Windows 7(32/64-bit)/Vista(32/64-bit)/XP(32/64-bit)/2000
Operating Voltage	5V (USB bus-powered)
Power Consumption	Typical: 95mA; idle: 12mA Tx max: 136mA @19dBm; Rx max: 45mA
LED Indicator	Single LED activity/connection
Dimensions	19 x 12 x 5.5 mm (0.75 x 0.47 x 0.22 in.)
Weight	1.8 g (0.063 oz.)
Temperature	Operation: 0°~ 40°C (32°F~104°F) Storage: -10°~ 65°C (14°F~149°F)
Humidity	5%~95% (no condensation)
Certifications	CE, FCC
Bluetooth
Frequency	2.4 ~ 2.483 GHz
Modulation	GFSK (Gaussian Frequency Shift Keying), π/4 DQPSK, 8DPSK
Profile Support	DUN (Dial-up Networking) FAX Profile, BPP ( Basic Printing Profile) LAP (LAN Access Profile) SPP (Serial Port Profile) GAP (Generic Access Profile) HID (Human Interface Device) HCRP (Hardcopy Cable Replacement Profile) FTP (File Transfer Profile) OPP (Object Push Profile) A2DP (Advanced Audio Distribution Profile) GAVDP (Generic Audio/Video Distribution Profile) HSP (Headset Profile) PAN (Personal Area Networking) BIP (Basic Image Profile) SYNC (Synchronization Profile) AV (Audio Video) GOEP (Generic Object Exchange Profile)
RF Output Power	-6~4dBm (typical)
Encryption	128 bit data encryption
Receiving Sensitivity	- 82dBm ( typical)
Data Rate	Up to 3Mbps (typical)
Date Range	Up to 10m (32.8 ft.)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TBW-107UB
Multi-Language Quick Installation Guide
CD-ROM
(Driver and Utility)
