2-Port PS/2 KVM Switch Kit
TK-205K (Version v1.4R)

2-port KVM switch with VGA and PS/2 connections to computers
Device monitoring with Auto-Scan and audible feedback
High quality 2048 x 1536 resolution for a crisp display
All required cabling included

Click on image to enlarge

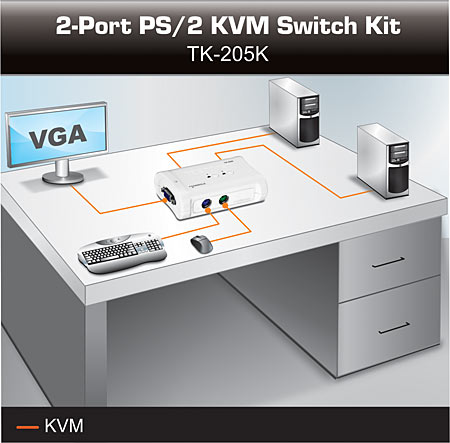

The 2-Port PS/2 KVM Switch Kit lets you manage two PC’s with just one set of keyboard, monitor, and mouse. Switch between two PC’s with a simple press of a button! The KVM switch includes two separate sets KVM cables and also includes great features such as Auto-Scan, Hot-Key operations, and audio feedback.

Control up to two computers/servers with one set of console device
PS/2 keyboard/mouse emulation with 2 sets of detachable KVM cables
Compliant with Windows and Linux
High video quality: up to 2048 x 1536 resolution
Auto-scan and LED display for computer monitoring
Computer selection by front panel push buttons or keyboard hot key commands.
Keyboard status restored when switching between computers
Plug & play
2-year limited warranty

Hardware

Connections

2 computers

KVM Cables

2 sets of 1.2 m (4 ft.) PS/2 KVM cables

Cable Interface
(all male)

To KVM	To PC
1 x VGA/SVGA HDB 15-pin	1 x PS/2 keyboard 6-pin mini-DIN 1 x PS/2 mouse 6-pin mini-DIN 1 x VGA/SVGA HDB 15-pin

PC Port Connectors

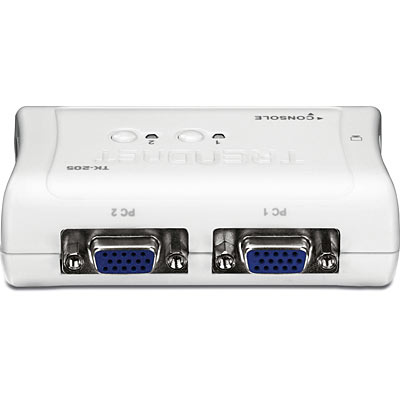

2 x VGA/SVGA HDB 15-pin (female)

Console Port Connectors (all female)

1 x PS/2 keyboard 6-pin mini-DIN
1 x PS/2 mouse 6-pin mini-DIN

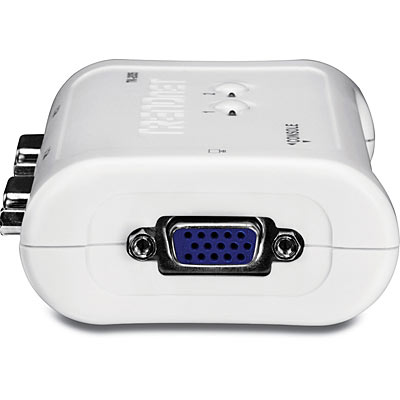

1 x VGA/SVGA HDB 15-pin

Supported OS

Windows and Linux

Computer Selection

Face panel push buttons or key board hotkey commands

Auto-Scan Interval

10 seconds

Keyboard State

Save and restore

Power Type

PS/2 interface power

Dimensions

95 x 65 x 30 mm (3.7 x 2.6 x 1.2 in.)

Weight

85 g (3 oz.)

Temperature

Operating: 0°C ~ 40°C (32°F ~104°F)
Storage: -20°C ~ 60°C (-4°F ~140°F)

Humidity

Max 80% (non-condensing)

Certifications

CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TK-205K
Quick Installation Guide
2 sets of PS/2 KVM cables (1.2 m / 4 ft.)
