Product Families » KVM » Rackmount » USB Console Ports » TK-803R
8-Port USB/PS/2 Rack Mount KVM Switch
TK-803R (Version v1.0R)
  • 8-port KVM switch with VGA and USB connection to computers
  • Supports both USB and PS/2 connections to console port
  • Device monitoring with adjustable Auto-Scan and audible feedback
  • Supports most operating systems and advance mouse designs


TK-803R
Click on image to enlarge

The 8-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port USB KVM Switch is the perfect choice for managing multiple PC's.


RoHS Compliant

  • 8-Port USB KVM Switch
  • Supports both USB and PS/2 Interface for console port
  • Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and more
  • Supports Windows 98SE/ME/ 2000/XP/2003 Server/Vista/Windows 7, Linux, Mac OS and more
  • High video quality; up to 2048 x 1536 VGA resolution
  • Firmware upgradeable via PC port
  • Auto-Scan for monitored PCs with adjustable scan interval from 10-99 seconds
  • Keyboard status restored when switching between PCs
  • LEDs display for easy status monitoring
  • Beeping sound for port switching confirmation (enable/disable)
  • Hot-Key or push button switching
  • Plug & Play and Hot-Pluggable
  • Standard 19” (1U) rack mount design
  • 2-Year Warranty
Hardware
Management 8 Computers
Standard USB 1.1 Compliant

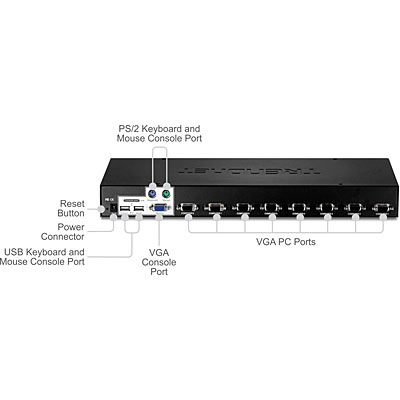

PC Ports 8 x VGA HDB 15-pin (female)

Console Port
  • 1 x USB (Type A) / PS/2 (6-pin Mini Din) Mouse
  • 1 x USB (Type A) / PS/2 (6-pin Mini Din) Keyboard
  • 1 x VGA HDB 15-pin (female)
Cable Interface
(Optional, not included)

To KVM

To PC

  • 1 x VGA HDB 15-pin (male)
  • 1 x VGA HDB 15-pin (male)
  • 1 x USB (Type A)
Supported OS Windows 98(SE)/ME/ 2000/XP/2003 Server/Vista/Windows 7, Linux, Mac and More
PC Selection Hot-Key or Push Buttons
Auto-Scan Interval 10-100 seconds (Programmable through Hot-Key)
LEDs On-line (Red), Select (Green)
Keyboard Status Saved & Restored
Power Adapter 9V DC 1A External Power Adapter
Dimensions 407 x 165 x 45mm (16.0 x 6.5 x 1.8in.)
Weight 1.83 kg (4.0 lb)
Temperature
  • Operating: 0°C~40°C (32°F~104°F)
  • Storage: -20°C~60°C (-4°F~140°F)
Humidity 0%~80% (non-condensing)
Certification CE, FCC
KVM Interface



TK-803R

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
Register Your Product
Package Contents
  • TK-803R
  • Multi-Language Quick Installation Guide
  • Power Adapter
    (9V DC, 1A)
  • Rack Mount Kit
