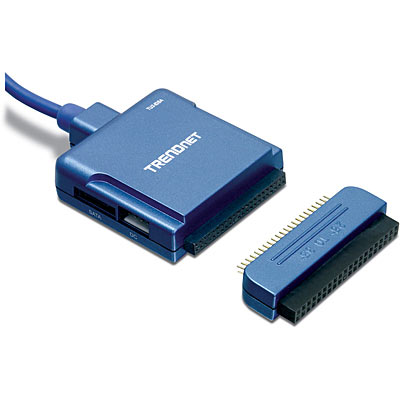

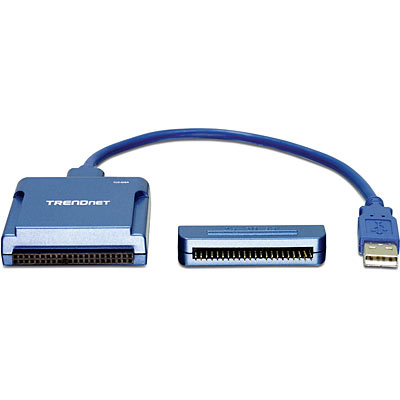

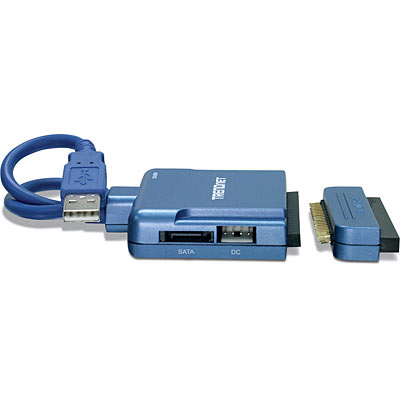

USB to IDE/SATA Converter
TU2-IDSA (Version v1.0R)

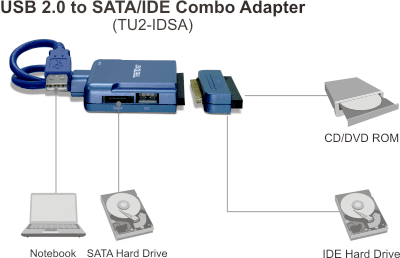

Connect a SATA or IDE hard drive to your computer
Connect your hard drive and plug the adapter in to any USB port on your PC
Works with CD-ROM, DVD and hard drive devices

Click on image to enlarge

The USB 2.0 to SATA/IDE combo adapter allows users to use IDE or SATA hard drives over a USB 2.0 connection. It works with most IDE (up to ATA 133) and SATA 1.0a devices. This device provides a simple, yet powerful data transfer and backup solution.

Compliant with USB 2.0 and SATA (Serial ATA) 1.0a Specifications
Compliant with USB Mass Storage Class Bulk-Only Transport Specification
Supports combo connectors IDE (40pin & 44pin) for 2.5” / 3.5” /5.5” IDE & SATA devices
Turns an internal IDE/SATA hard drive or CD/DVD-ROM into an external USB device
Operates IDE and SATA devices simultaneously
Compliant with Windows 98SE/ME/2000/XP/2003 Server Mac OS X
Plug& Play for easy Installation
2-year limited warranty

Hardware
Interface	USB 2.0, 1.1 Serial ATA 1.0a (Serial ATA) Ultra ATA 133 (Parallel ATA)
Supported OS	Windows 98SE/ME/2000/XP/2003 Server, Mac OS X
Connectors	SATA: 7-pin Signal Male IDE: IDE 44-pin Female IDE 2.5” to 3.5” Converter: IDE 44-pin Male to 40-pin Female USB: USB 2.0 Type A Male DC: Mini 4-pin Power Connector DC In: 2.1mm Power Plug
Data Rate	1.5/12/480Mbps (USB)
Power Source	Input: AC 100~240V Output: 12V DC, 2A
Weight	Adapter: 70g(2.5oz.) Power Supply: 240g (8.5oz.)
Operating Temperature	0° C~ 40° C (32° F~ 104° F)
Humidity	85% (Non-Condensing)
Certification	FCC, CE
System Requirements
Computer with an USB 1.1 or 2.0 Port CPU: 300 MHz or above Memory: 128MB or above Windows 98SE/ME/2000/XP/2003 Server/Mac OS X IDE or SATA 1.0a device

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TU2-IDSA
Multi-Language QuickInstallation Guide
Serial ATA Cable
Hard Drive Power Cable
2.5” to 3.5” IDE Converter
AC/DC Power Supply
