2-Port PS/2 KVM Switch with Audio
TK-208K (Version v1.3R)

2-port KVM switch with VGA and PS/2 connections to computers and audio devices
Listen to music from one computer while working on the other
High quality 2048 x 1536 resolution for a crisp display
All required cabling included

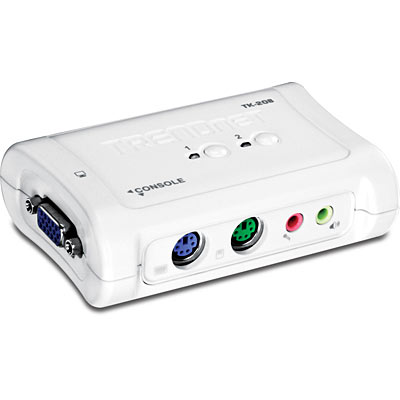

Click on image to enlarge

The 2-Port PS/2 Audio KVM Switch lets you control multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard and mouse but you can also share microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between 2 PCs. With it's Auto-Scan and Hot-Key operating features, the TK-208K is the perfect choice for managing 2 PCs. Separate KVM cables are included.

Control up to 2 computers/servers with one set of console devices
PS/2 keyboard/mouse emulation with 2 sets of detachable KVM cables
Compliant with Windows and Linux
High video quality, up to 2048 x 1536 resolution
Listen to music from one computer while working on the other
Auto-Scan and LED display for easy status monitoring
Computer selection by face panel push buttons or keyboard hot key commends
Keyboard status restored when switching between computers
Plug & Play
2-year limited warranty

Hardware

Connection

2 Computers

Cable

2 sets of 1.2m/4ft.KVM cable
2 sets of 1.2m/4ft.audio cables (USB mini B to 3.5mm jack)

Cable Interface (all male)

	To KVM	To PC
KVM Cable	1 x VGA/SVGA HDB 15-pin	1 x PS/2 keyboard 6-pin mini-Din 1 x PS/2 mouse 6-pin mini-Din 1 X VGA/SVGA HDB 15-pin
Audio Cable	1 x USB (Mini B)	1 x 3.5mm audio in/out jack 1 x 3.5mm microphone jack

PC Port Connectors (all female)

2 x VGA/SVGA HDB 15-pin
2 x USB (mini B)

Console Port Connectors (all female)

1 x PS/2 keyboard 6-pin mini-Din
1 x PS/2 mouse 6-pin mini-Din
1 x VGA/SVGA HDB 15-pin
1 x 3.5mm audio in/out jack
1 x 3.5mm microphone in/out jack

Supported OS

Windows 7/Vista/2003 Server/XP/2000/ME/98SE and Linux

Computer Selection

Face panel push buttons or keyboard hotkey commands

Auto-Scan Interval

10 seconds

Keyboard State

Save and restore

Power Type

PS/2 interface power

Dimensions

98 x 70 x 2.8mm (3.86 x 2.76 x 1.1in.)

Weight

108g (3.8oz)

Temperature

Operating: 0°C ~ 40°C (32° F ~104°F)
Storage: -20°C ~ 60°C (-4°F ~140°F)

Humidity

Max. 90% (non-condensing)

Certifications

CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Package Contents

TK-208
Quick Installation Guide
2 sets of PS/2 KVM cables (1.2m/4ft.)
2 sets of audio cables (1.2m/4ft.)
