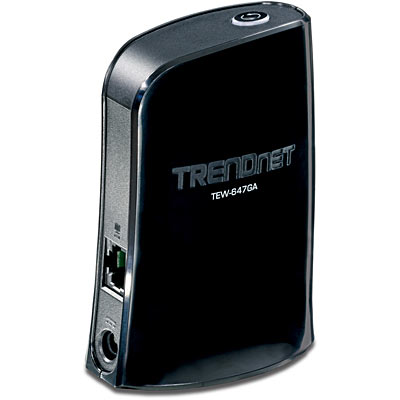

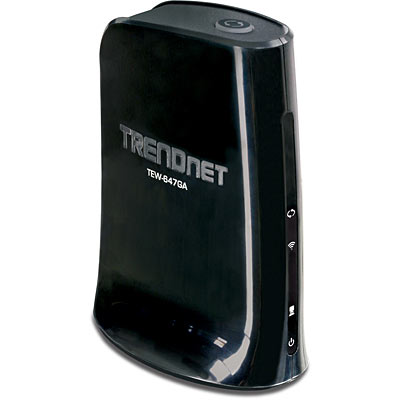

N300 Wireless Gaming Router
TEW-647GA (Version 1.0R)
  • Connect your game console to a high-performance wireless n network
  • Play online or connect multiple consoles to play head-to-head
  • Works with Nintendo® Wii™, Microsoft Xbox®, Xbox® 360™ and PlayStation® 2 and 3
  • One-touch Wi-Fi Protected Setup (WPS)


 DISCONTINUED PRODUCT
The TEW-647GA (Version 1.0R) has been discontinued.  It has been replaced by the TEW-647GA (Version 2.xR). For a list of discontinued products, click here.

The N300 Wireless Gaming Router (TEW-647GA) connects your favorite Ethernet-ready gaming console to a lag-free wireless n network. No need to locate your gaming station near an Internet connection—cut your cables and start winning with high-performance wireless n. Setup is quick and simple, with no drivers to install. Works with Nintendo Wii®, Xbox®, Xbox 360® and PlayStation 2 and 3®. Connect multiple gaming consoles wirelessly and play head-to-head or challenge others over the Internet in multiplayer mode.

The latest in wireless encryption ensures wireless security. Advanced Multiple Input Multiple Output (MIMO) antenna technology reduces wireless dead spots. Wireless Protected Setup (WPS) lets you integrate other WPS devices into your secured network quickly.



RoHS Compliant
  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
  • Connects network-ready game consoles including Nintendo Wii, Xbox, Xbox 360, PlayStation 2 and PlayStation 3 to a high speed wireless n network
  • Supports online gaming and head-to-head play
  • Supports Multiple Input Multiple Output (MIMO) technology
  • Easy setup with Wi-Fi Protected Setup (WPS) feature
  • Maximum reliability, throughput and connectivity with automatic data rate switching
  • Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK
  • Low interference and high susceptibility optimize performance
  • Easy user setup wizard and intuitive Web browser configuration
  • Coverage of up to 50 meters indoor, 100 meters outdoor *
  • 3-year limited warranty
  • Hardware
  • Standards
  • IEEE 802.11b, IEEE 802.11g and IEEE 802.11n (draft 2.0)
  • LED Indicator
  • WPS, WLAN, LAN, Power
  • Power Consumption
  • Standby mode: 160mA (max) ; Transmit mode : 210mA (max)
  • Supported OS (for Wizard)
  • Windows 2000/XP(32/64-bit)/Vista (32/64-bit)
  • Supported Browser
  • Internet Explorer 6.0 or above, Netscape 7.0 or above, Safari, Firefox
  • Dimensions (LxWxH)
  • 70 x 100 x 20mm (2.75 x 3.9 x 0.8in.)
  • Weight
  • 80g (2.8oz)
  • Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -20° ~ 60° C (-4° ~ 140° F)
  • Humidity
  • 5% ~ 95% max (non-condensing)
  • Certification
  • FCC, CE
  • Wireless
  • Frequency
  • 2.412 ~ 2.472 GHz
  • Antenna
  • Built-in 2 antennas
  • Data Rate (auto fallback)
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 150Mbps (TX)/300Mbps (RX)
  • Output Power
  • 802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n : 11dBm (typical)
  • Receiving Sensitivity
  • 802.11b: -84dBm at 11Mbps 802.11g: -73dBm at 54Mbps 802.11n: -69dBm at HT20/HT40
  • Encryption
  • 64/128-bit WEP (Hex & ASCII), WPA-PSK/WPA2-PSK (AES/TKIP)
  • Channels
  • 1~11 (FCC), 1~13 (ETSI)
  •

    Package Contents

    • TEW-647GA
    • CD-ROM (Setup Wizard and User’s Guide)
    • Multi-Language Quick Installation Guide
    • 1 x Cat. 5 Ethernet cable (60cm / 2ft)
    • Power adapter (12V DC, 500mA)
