Low Loss Reverse SMA to N-Type Cable
TEW-L202 (Version V2.0R)

Extend your wireless antenna up to 2 meters (6.5 ft.)
Weatherproofed cable for outdoor use

Click on image to enlarge

The low loss Reverse SMA to N-Type Cable extends your wireless Antenna up to 2 meters to provide optimal placement for your antenna outdoors. Connect business networks from building to building wirelessly or provide wireless Internet access for hot spot applications! This cable makes wireless communication possible by providing low loss communication between your access point and antenna.

Wi-Fi Compliant with 2.4GHz 802.11 b/g & 5GHz 802.11a Devices for extending wireless networks

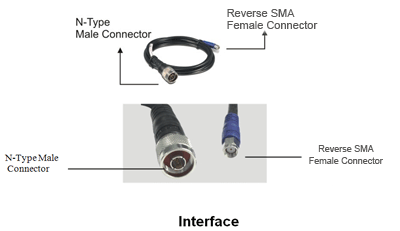

Reverse SMA female to N-Type male Connector.
Optimal placement of your existing Wi-Fi Device permits you to maximize its wireless performance
Flexible outer conductor allows the tightest bend radius available for any cable of similar size and performance
Provides flexible Low-loss communication for wireless antenna
Multi-ply bonded outer foil conductor is rated conservatively at > 90 dB.
Weatherproof cable design for outdoors exposure with best materials for UV resistance
Polyethylene jacketed cable designed for outdoor use
Easy and quick deployment into a WLAN environment

Construction
Inner Conductor (Solid BC)	0.037 in. (0.94 mm)
Dielectric (Foam PE)	0.110 in. (2.79 mm)
Outer Conductor (Aluminum Tape)	0.116 in. (2.95 mm)
Over Braid (Tinned Copper )	0.139 in. (3.53 mm)
Jacket (PE)	0.195 in. (4.95 mm)
Mechanical
Bend Radius: Installation	0.5 in. (12.7 mm)
Bend Radius: Repeated	2.0 in. (50.8 mm)
Bending Moment	0.2 ft-lb (0.27 N-m)
Weight	0.021 lb/ft (0.03 kg/m)
Tensile Strength	40 lb (18.2 kg)
Flat Plate Crush	15 lb/in. (0.27 kg/mm)
Environment
Temperature	Operating: -40° C ~ 85°C (-40°F~185°F) Storage: -70° C ~ 85°C (-94°F~185°F)
Weight
TEW-L202	115g (0.25lb)
TEW-L208	340g (0.75lb)
Electrical
Cut-off Frequency	41 GHz
Velocity of Propagation	80%
Dielectric Constant	1.56
Time Delay	1.27 nS/ft (4.17 nS/m)
Impedance	50 ohms
Capacitance	24.5 pF/ft (80.3 pF/m)
Inductance	0.064uH/ft (0.21 uH/m)
Shielding Effectiveness	> 90 dB
DC Resistance: Inner Conductor Outer Conductor	7.6ohms/1000ft (24.9 ohms/km) 4.9 ohms/1000ft (16.1 ohms/km)
Voltage Withstand	1000 Volts DC
Jacket Spark	3000 Volts RMS
Peak Power	2.5 kW

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Downloads

Package Contents

TEW-L202
Weatherproof Tape
Quick Installation Guide
