5-Port USB PCI Adapter
TU2-H5PI (Version v1.xR)

Add 5 high speed USB ports to your PC
Transfer data at high speeds of up to 480Mbps
Use with TRENDnet TBW-101UB for instant Bluetooth communication

Click on image to enlarge

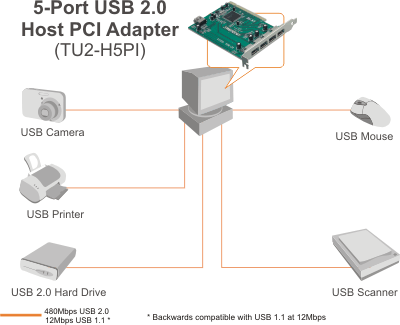

This 5-Port USB 2.0 Host PCI Adapter gives your Desktop PC five USB 2.0 ports so you can easily connect your peripherals and enjoy the benefits of high-speed USB 2.0!

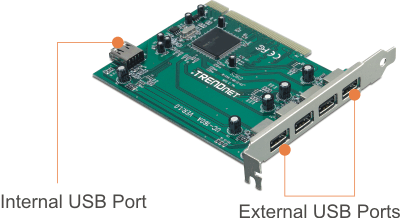

4 x External Type A USB 2.0 Ports
1 x Internal Type A USB 2.0 Port
32-bit 33Mhz Host Interface Compliant to PCI Specification 2.2
Supports PCI-Bus Power Management Interface Specification 1.1
Compliant with USB 2.0 and USB 1.1 Specifications
OHCI 1.1 (Open Host Controller Interface) Compliant
EHCI .95 (Enhanced Host Controller Interface) Compliant
Supports all USB speeds: Low-Speed (1.5Mbps), Full-Speed (12Mbps) and High-Speed (480Mbps)
Switches to the Peripheral’s Highest Supported Speed Automatically
Fully Forward and Backward Compatible with USB 1.1 Devices
Supports up to 127 USB Devices
Compatible with Windows 98SE/ME/2000/XP/Vista/2003 Server and Mac OS 10.1~10.4
Supports Plug & Play and Easy Installation
2-year limited warranty

Hardware
Interface:	32-bit PCI rev. 2.2
USB Controller:	OHCI, EHCI
Standards:	USB 2.0 & USB 1.1
Ports:	4 x External USB 2.0 Ports 1 x Internal USB 2.0 Port
OS Compliant:	Windows98SE/ME/2000/XP (32/64-bit)/Vista (32/64-bit), 2003 Server(32/64-bit), Mac OS 10.1~10.4
Data Rate:	High-Speed: 480Mbps Full-Speed: 12Mbps Low-Speed: 1.5Mbps
Power Consumption:	500mA (max) per port
Dimensions (LxWxD):	134 x 121 x 21.6mm (5.2 x 4.76 x 0.85 inches)
Weight:	70g. (0.15 lb)
Temperature:	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 45° C (14° ~ 113° F)
Humidity:	85% (Non-Condensing)
Certifications:	FCC, CE
System Requirements
PC with Supported Operating Systems Available PCI Version 2.2 Slot CD-ROM Drive for Driver Installation

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TU2-H5PI
Quick Installation Guide
CD-ROM (Driver & User’s Guide)
