TRENDnet | Products | Wired Print Servers

Product Families » Print Servers » Wired Print Servers » TE100-MP1UN

1-Port Multi-Function Print Server
TE100-MP1UN (Version V1.0R)

Turns a standalone multi-function printer/fax/scanner into a shared network resource
Provides high speed USB printing, faxing and scanning for everyone on the network
Works with most Windows based operating systems
Manage the print server with the utility or Web browser

Click on image to enlarge

The 1-Port Multi-Function Print Server turns once standalone multi-function USB printer/fax/scanners into a shared resource on your network.

Unlock the power of your multi-function printer by giving everyone on your Local Area Network full control over the device from their workstation.

Experience print, scan and fax simplicity with an intuitive management interface. LED indicators, bi-directional support and e-mail notifications improve the user experience. Works with most Windows based operating systems.

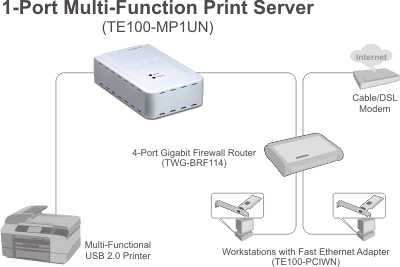

Share a multi-function printer on a Local Area Network
Supports most USB printers and All-In-One multi-function printers
Easy to use Windows based utility program and Web based configuration

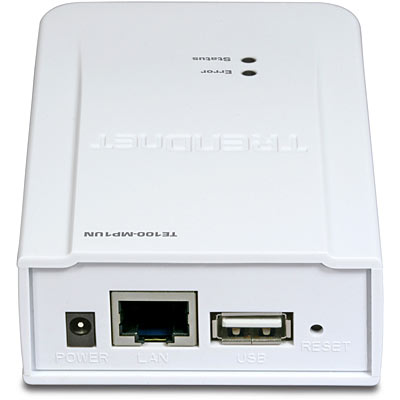

Includes one USB 2.0 port and one RJ-45 10/100Mbps auto-sensing Fast Ethernet port
3-year limited warranty

Hardware
Standards	Wired: IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Printer Interface	USB 2.0, 1.1 compliant USB type A port
LAN Port	10/100Mbps Auto-Negotiation UTP/STP Ethernet port
Diagnostic LEDs	Power/Link, Error
Transport Protocol	TCP/IP
TCP/IP Protocol Supported	DHCP
Supported OS	Windows 7(32-bit) / Vista(32-bit) / 2003 Server / XP / 2000
Management	Windows based utility or Web based configuration
Power	5V DC 2A external power adapter
Power Consumption	Max 2.5W (without a peripheral)
Dimensions	115 x 85 x 30mm (4.5 x 3.4 x 1.2 in.)
Weight	128g (4.5oz.)
Temperature	Operating: 0°~50°C (32°~122°F) Storage: -25°~55°C (-13°~131°F)
Humidity	10%~90% (non-condensing)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TE100-MP1UN
Multi-Language Quick Installation Guide
CD-ROM (Utility and User’s Guide)
Power adapter (5V DC, 2A)
