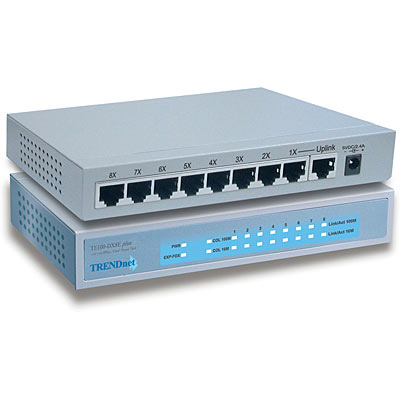

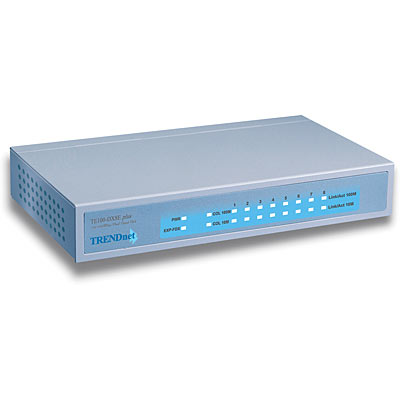

8-Port 10/100Mbps Dual Speed Hub with Built-in Switch
TE100-DX8E (Version 1.0)

Enjoy this 8-port palm-size dual speed hub that presents the quickest way to build or expand a fast Ethernet network-includes built-in switch
Each port supports auto sensing between 10Mbps Ethernet and 100Mbps fast Ethernet
Enjoy a 5-year warranty

DISCONTINUED PRODUCT

The TE100-DX8E (Version 1.0) has been discontinued. It has been replaced by the TE100-S8P (Version G2.0R). For a list of discontinued products, click here.

Click on image to enlarge

The TE100-DX8E is a 10/100Mbps Dual-speed hub that provides a new level of flexibility and easy migration between bandwidths. Each port supports auto-sensing between Ethernet and Fast Ethernet devices. With a built-in switch module, it is a true 10/100Mbps hub, no external switches are needed for 10/100Mpbs interoperability.

Plug and Play installation with automatic port configuration.
Supports 8 10/100Mbps auto-negotiation ports.

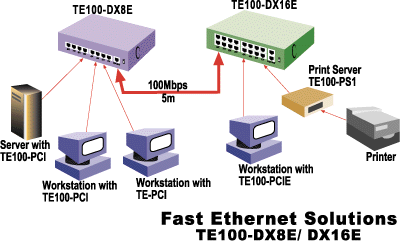

Uplink port provides easy expansion to another hub.
Provides 10Mbps, 100Mbps hub and 10/100Mbps switch functionality in one unit.
Seamless integration of 10Base-T and 100Base-TX networks.
Easy to view LED indicators provides per-port status.
External AC power adapter included.
5-year limited warranty.


Hardware
Standards:	IEEE 802.3µ 100Base-TX Class II Fast Ethernet Repeater and IEEE 802.3 10Base-T Ethernet repeater
Protocol:	CSMA/CD
Cabling:	CAT 3, 4, 5 UTP/STP for 10Base-T/CAT 5 for 100Base-TX
LED´s:	Per Hub: Power, Collision (10M, 100M), Switch Activity Per Port: 10M Link/Rx, 100M Link/RX
Power:	12V DC External Power Supply
Dimensions:	184 x 121 x 44 mm / 7.25 " x 4.75" x 1.75" (L x W x H)
Weight:	780 g / 1.72 lb
Temperature:	Operating: -5° to 40° C / 23° to 104° F Storage: -20° to 70° C / -4° to 158° F
Humidity:	Operating: 10% to 90% (non-condensing) Storing: 5% to 90% (non-condensing)
Certification:	FCC, UL, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
