1-Port Print Server
TE100-P1U (Version v3.0R)

Turns a standalone USB printer into a shared network resource
Provides high speed USB 2.0 printing
Remote manages print server through web browser or utility

Click on image to enlarge

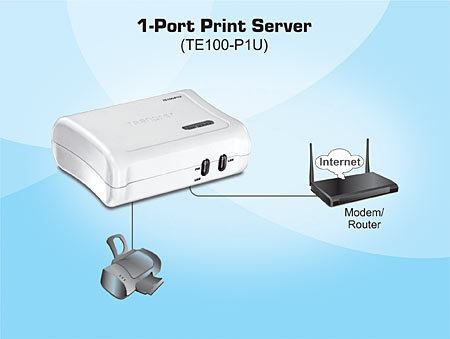

TRENDnet’s TE100-P1U is a print server that transforms any stand-alone USB printer into a shared network printer. The TE100-P1U provides Fast Ethernet interface for integrating into existing network. The TE100-P1U is designed for printers equipped with USB 2.0 compliant printer port and it is an ideal network solution to convert conventional USB printer into a shared resource on the network.

Compliant with USB 2.0 high-speed printing
One RJ-45 10/100Mbps Auto-MDIX Fast Ethernet port
LPR printing for Windows
IPP Printing for Windows 7/Vista/2003 Server/XP/2000
Web-Based(HTTP) configuration
Supports second HTTP port for remote Web configuration
Supports Macintosh Rendezvous Zero Configuration*
Windows-based setup wizard and configuration utility
Built-in flash memory for easy firmware upgrade
3-years limited warranty

* Mac Systems are only compatible with Post-Script printers

HARDWARE
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Printer Interface	USB 2.0, 1.1 Compliant USB Type A Port
LAN	10/100Mbps Auto-MDIX Ethernet Port
LED	Power, USB, LAN
Transport Protocol	TCP/IP
TCP/IP Protocol	DHCP, IPP, LPR, HTTP
Supported OS	Windows 7(32/64-bit)/Vista(32/64-bit)/2003 Server/XP(32/64-bit)/2000/ME/98SE Netware 5.x NDPS LPR Remote Printing (TCP/IP) Unixware, Linux Mac OS X 10.1~10.6
Management	PS Utility or Web-browser configuration
Power	5V DC 2.5A external power adapter
Dimensions	115 x 85 x 30 mm (4.5 x 3.4 x 1.2 in.)
Weight	128 g (4.5 oz.)
Temperature	Operating: 0°C~50°C (32°F~122°F) Storage: -25°C~55°C (-13°F~131°F)
Humidity	Max 90% (non-condensing)
Certifications	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TE100-P1U
Multi-Language Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Power Adapter (5V DC, 2.5A)
