USB 6-in-1 Memory Card Reader/Writer
TMR-61U2 (Version v3.0R)

Download data from your memory cards directly to your computer
Accepts most memory cards
Plug in to any USB port and transfer pictures, music and more

DISCONTINUED PRODUCT

The TMR-61U2 (Version v3.0R) has been discontinued. For a list of discontinued products, click here.

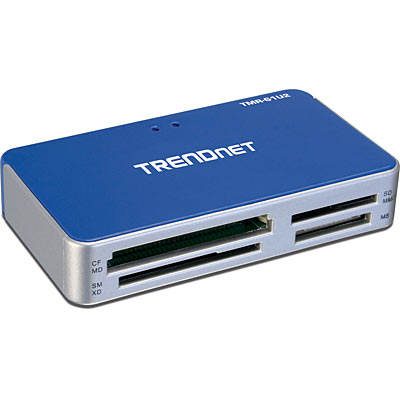

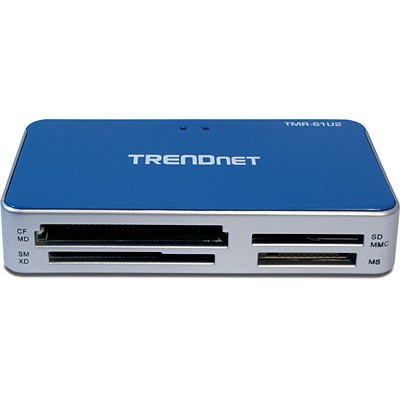

Click on image to enlarge

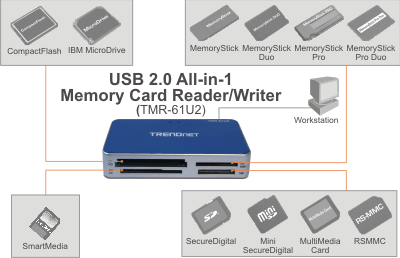

TMR-61U2 USB 2.0 All-in-1 Memory Card Reader/Writer provides an ideal solution to read and write; transfer large files between your computer, digital camera, PDA, MP3 player and more. The TMR-61U2 has a UBS 2.0 interface that offers plug-and-play installation, Hi-Speed data transfer rate, and backward compatibility with USB1.1 interface.

Compliant with Hi-Speed USB 2.0 & USB 1.1 Standards
Reads and Writes Compact Flash I/II, CF Extreme III, CF Ultra II, Micro Drive (MD), Magicstor for Slot 1
Reads and Writes Secure Digital Card (SD), SDUltra Card, Mini SD, MultiMedia Card (MMC), MMC 4.0, RS MMC,RS MMC 4.0 for Slot 2
Reads and Writes Smart Media Card (SM), SM RAM Card, XD-Picture Card for Slot 3
Reads and Writes Memory Stick (MS), Memory Stick Pro (MS PRO), Memory Stick Duo (MS DUO), MS Pro MagicGate, MS MagicGate, MS Duo MagicGate, MS Pro Duo, MS Pro Duo MagicGate for Slot 4
Compatible with Windows 98(SE)/ME/2000/XP, Mac OS 9.x/10.x
Supports USB High-Speed (480Mbps), Full-Speed (12Mbps)and Low-Speed (1.5Mbps) Transfer Rates
Supports USB High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps) Transfer Rates
Supports Plug & Play and Hot-Swap
Portable Compact Design and No External Power Source Required
Low Power consumption (power saving mode supported)
USB Cable Embedded on the device (75mm/3 inches). An extension cable is included.
2-year limited warranty

Hardware
Interface:	USB 1.1 USB 2.0
Card Supported:	CF: 8MB and up MD: 340MB and up SM: 8MB and up MS Series: 8MB and up SD: 16MB and up MMC/RSMMC: 8MB and up
Power Consumption (500mA max. per port):	No card installed: 109mA CF: 119mA (reads) 125mA (writes) MD: 149mA (reads) 390mA (writes) SM: 115mA (reads) 115mA (writes) MS Series: 116mA (reads) 119mA (writes) SD: 130mA (reads) 140mA (writes) MMC/RSMMC: 130mA (reads) 140mA (writes)
Sockets:	CF socket x 1 for Compact Flash Type I/II Card & IBM Micro Drive; complies with CF spec 1.4 SM socket x 1 for Smart Media Card; complies with SM spec 1.1 (3.3v) MS socket x 1 for Memory Stick; complies with MS spec 1.3, MS Duo, MS PRO SD socket x 1 for Secure Digital Card & Multi-Media Card; complies with SD spec 1.0
Performance (avg.) (USB1.1):	CF: Reads 1 Mbps; Writes 890 Kbps SM: Reads 973 Kbps; Writes 488 Kbps MS: Reads 632 Kbps; Writes 471 Kbps SD: Reads 194 Kbps; Writes 246 Kbps MMC: Reads 176 Kbps; Writes 219 Kbps
Performance (avg.) (USB2.0):	CF: Reads 5.4 Mbps; Writes 3.0 Mbps SM: Reads 5.0 Mbps; Writes 742 Kbps MS: Reads 858 Kbps; Writes 659 Kbps SD: Reads 7.1 Mbps; Writes 2.6 Mbps MMC: Reads 1.5 Mbps; Writes 471 Kbps
Cable Gauge:	28/22 AWG
LEDs:	Power / Link
Dimensions:	92x51x17mm (3.6x 2 x 0.7 inch)
Weight:	50g. (1.8 oz.)
Operating Temp:	Operating: 0 ° ~ 65 ° C (32 ° ~ 146 ° F)
Storage Temp	Storage: -20 ° ~ 80 ° C (-4 ° ~ 176 ° F)
Humidity:	90 %RH (Non-condensing)
Certification:	FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Downloads

Package Contents

TMR-61U2
Driver CD-ROM
Multi-Language Quick Installation Guide
USB A-B Cable (95cm/3ft)
