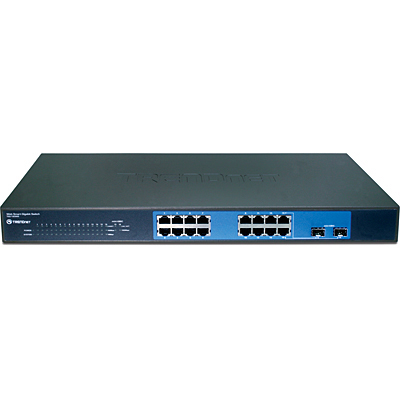

The 16-Port Gigabit Web Smart Switch with 2 Shared Mini-GBIC Slots (model TEG-160WS) delivers a 32Gbps switching capacity with managed layer 2 features at a reduced cost. Support for SNMP v1, 802.1X, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provides a cost effective, scalable and secure backbone switch solution for SMB networks.

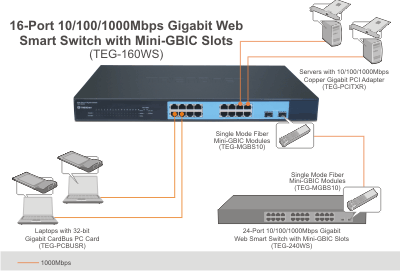

SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Connect a fiber network to the shared mini-GBIC slots. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.

• 16 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
• 2 x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports 15-16)

• 32Gbps switching capacity

• IEEE 802.3x Full Duplex Flow Control and Back Pressure
• IEEE 802.3ad Port Trunk
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1p QoS
• IEEE 802.1X Authentication and SNMP v1
• Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN
• Store and Forward switching method

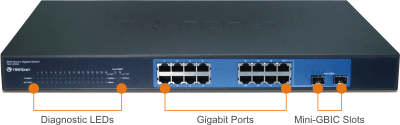

• Front panel diagnostic LEDs
• Supports Jumbo Frame packets (max size up to 10Kbytes)
• Integrated address look-up engine supports up to 8K absolute MAC addresses
• Supports 512Kbytes RAM for data buffering
• Easy configuration via Web browser
• Standard 19” (1U) rackmount size (rackmount kit included)
• 3-Years Limited Warranty
