1-Port Parallel Print Server
TE100-P1P (Version v3.0R)

Turns a standalone parallel printer into a shared network resource
Manages print server through web browser or utility

DISCONTINUED PRODUCT

The TE100-P1P (Version v3.0R) has been discontinued. For a list of discontinued products, click here.

Click on image to enlarge

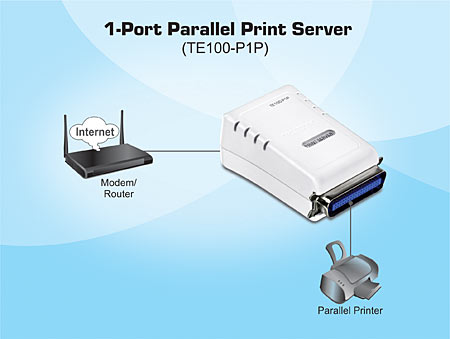

The 10/100 Mbps Parallel Print Server is designed to transform virtually any stand-alone parallel port printer into a shared network printer. Compact in design, but packed with features the TE100-P1P is the most cost effective way to add a parallel printer anywhere on your network!

Compliant with Bi-Directional 36-pin parallel port
One 10/100 Mbps Auto-MDIX Fast Ethernet port
Supports LPR printing for Windows
Supports IPP printing for Windows 7, Vista, XP, 2000
Web-based (HTTP) configuration
Supports second HTTP port for remote Web configuration
Supports Macintosh Rendezvous Zero Configuration*
Windows-based setup wizard and configuration utility
Built-in flash memory for easy firmware upgrade
3-years limited warranty

* Mac systems are only compatible with Post-Script printers

Hardware
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Printer Interface	IEEE 1284 Male Centronics (DB-36)
LAN	10/100 Mbps Auto-MDIX Ethernet port
LEDs	Power, LPT, Link /Act
Transport Protocol	TCP/IP, SMB
Supported TCP/IP Protocol	DHCP, IPP, LPR, HTTP
Supported OS	Windows 7 (32/64-bit), Vista (32/64-bit), 2003 Server, XP (32/64-bit), 2000, ME, 98SE Netware 5.x NDPS LPR Remote Printing (TCP/IP) Unixware, Linux Mac OS X 10.1~10.6
Management	PS utility or web-browser configuration
Power	5V DC 2.5A external power adapter
Dimensions	57 x 90 x 32 mm (2.2 x 3.5 x 1.3 in.)
Weight	74 g (2.6 oz.)
Temperature	Operating: 5°C~40°C (41°F~104°F) Storage: -25°C~50°C (-13°F ~122°F)
Humidity	Max 95% (non-condensing)
Certifications	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TE100-P1P
Multi-Language Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Power Adapter (5V DC, 2.5A)
