10-Port 10/100/1000Mbps NWay Copper Gigabit Switch
TEG-S28TX

Provides 1000Mbps gigabit connections to a power server and/or another gigabit switch with each port running at full wire speed
Simple expansion can be done by unlinking to other 10/100Mbps switches or other gigabit switches
Provides gigabit performance at an affordable price

DISCONTINUED PRODUCT

The TEG-S28TX has been discontinued. For a list of discontinued products, click here.

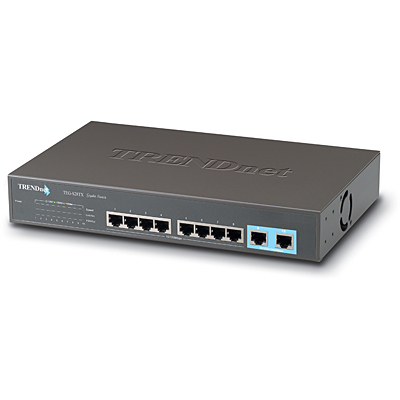

Click on image to enlarge

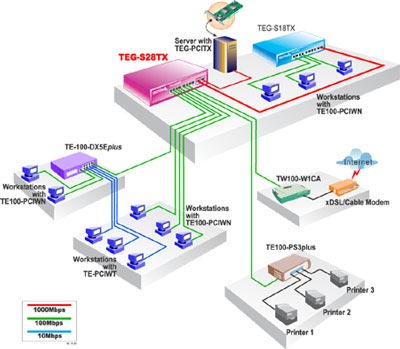

TRENDnet’s TEG-S28TX 10-Port NWay Copper Gigabit Switch consists of two 10/100/1000Mbps Copper Gigabit port and eight 10/100Mbps Fast Ethernet ports with all ports delivering auto-sense connection speed and duplex mode. Users can connect two Gigabit Servers to the Gigabit port to increase network performance or uplink Copper Gigabit Switches together to create high-bandwidth Gigabit backbone. TRENDnet’s TEG-S28TX provides simple migration, scalability, and flexibility to handle new applications and data types making it a highly reliable and cost effective solution for high-speed network connectivity.

8 10/100Mbps NWay Auto-MDI Ethernet Port
2 10/100/1000Mbps NWay Auto-MDI Gigabit Ethernet Port
Full/Half Duplex transfer mode for each port
Wire Speed reception and transmission
Store and Forward switching method
Integrated address Look-up Engine, supports 6K absolute MAC address
Supports 256Kbytes RAM for diagnostic buffering
Extensive front-panel LEDs
Broadcast Storm protection
IEEE-802.3x flow control for full-duplex
Back Pressure flow control for half-duplex
Optional Rack mount kit for 19" standard rack
5-year limited warranty


Hardware
LAN Standards:	IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, ANSI/IEEE 802.3 NWay auto-negotiation, IEEE 802.3x Flow Control
Network Media:	Ethernet: UTP CAT 3, 4, 5, EIA/TIA-568 100 ohms, 100 meters (max.); Fast Ethernet: UTP CAT 5, EIA/TIA-568 100 ohms, 100 meters (max.); Gigabit Ethernet: 4-pair UTP CAT 5, EIA/TIA-568 100 ohms, 100 meters (max.)
Protocol:	CSMA/CD
Topology:	Star
Data Transfer Rates:	Ethernet: 10Mbps Half-Duplex, 20Mbps Full-Duplex Fast Ethernet: 100Mbps Half-Duplex, 200Mbps Full-Duplex Gigabit Ethernet: 2000Mbps Full-Duplex
Data RAM Buffers:	256KByte per device
Filtering Address Table:	6K entries per device
Diagnostic LEDs:	Power, Speed, Link/Act, FDX/COL
Power:	100~240VAC 50/60Hz, Internal Universal Switching Power Supply
Power Consumption:	30 Watts. Max
Dimensions:	280 x 180 x 44 mm (11 x 7.1x1.73 inches) (W x H x D)
Weight:	appr. 1.64 kg (3.61 lb.)
Temperature:	Operating: 0° - 50° C (32° to 122° F) Storage: -10° - 70° C (14° to 158° F)
Humidity:	10% - 90% (no-condensing)
Emission:	FCC Class A, CE Mark A, VCCI-A

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
