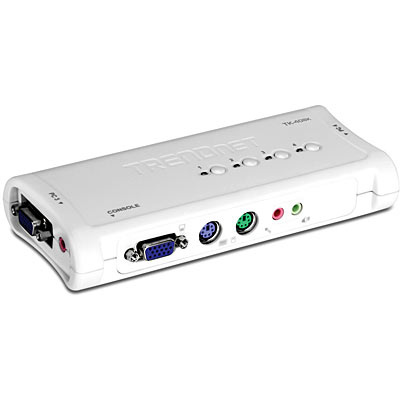

4-Port PS/2 KVM Switch Kit with Audio
TK-408K (Version v1.3R)

4-Port KVM switch with VGA and PS/2 connections to computers and audio devices
Listen to music from one computer while working on the other
High quality 2048 x 1536 resolution for a crisp display
All required cabling included

Click on image to enlarge

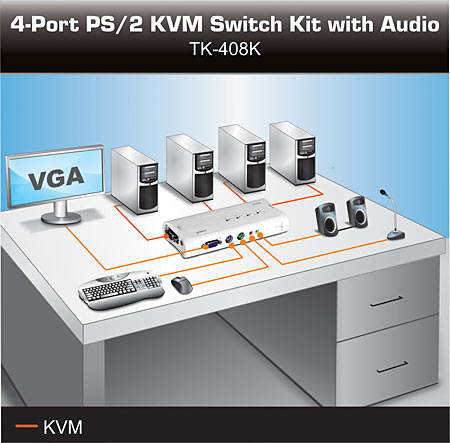

The 4-Port PS/2 Audio KVM Switch lets you control multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard and mouse but you can also share microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between 4 PCs. With its Auto-Scan and Hot-Key operating features, the TK-408K is the perfect choice for managing 4 PCs. Separate KVM cables are included.

Manage up to 4 computers/servers with one set of console devices
PS/2 keyboard/mouse emulation with 4 sets of detachable KVM cables
Compliant with Windows and Linux
High video quality, up to 2048 x 1536 resolution
Listen to music from one computer while working on the other
Auto-Scan and LED display for easy status monitoring
Computer selection by face panel push buttons or keyboard hot key commends
Keyboard status restored when switching between computers
Plug & Play
2-year limited warranty

Hardware

Connections

4 computers

Cables

2 sets of 1.2 m (4 ft.) PS/2 KVM cables
2 sets of 1.8 m (6 ft.) PS/2 KVM cables
2 sets of 1.2 m (4 ft.) audio cable
2 sets of 1.8 m (6 ft.) audio cable

Cable Interface
(all male)

	To KVM	To PC
KVM cable	1 x VGA/SVGA HDB 15-pin	1 x PS/2 Keyboard 6-pin Mini Din 1 x PS/2 Mouse 6-pin Mini Din 1 X VGA/SVGA HDB 15-pin
Audio cable	1x 3.5mm audio in/out jack 1x 3.5mm microphone in/out jack	1 x 3.5mm audio in/out jack 1 x 3.5mm microphone in/out jack

PC Port Connections
(all female)

4 x VGA/SVGA HDB 15-pin
4 x 3.5 mm speaker jack
4 x 3.5 mm microphone jack

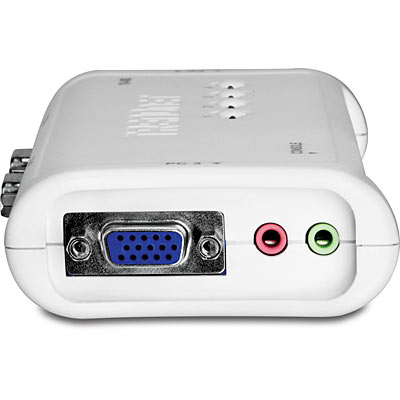

Console Port Connectors
(all female)

1 x PS/2 keyboard 6-pin mini-DIN
1 x PS/2 mouse 6-pin mini-DIN
1 x VGA/SVGA HDB 15-pin
1 x 3.5 mm speaker jack
1 x 3.5 mm microphone jack

Supported OS

Windows and Linux

Computer Selection

Front panel push buttons or keyboard hot key commands

Auto-Scan Interval

5 seconds

Keyboard State

Save and restore

Power Type

PS/2 interface power

Dimensions

167 x 80 x 28 mm (6.6 x 3.2 x 1.1 in.)

Weight

178 g (6.3 oz.)

Temperature

Operating: 0°C ~ 40°C (32°F ~104°F)
Storage: -20°C ~ 60°C (-4°F ~140°F)

Humidity

Max 90% (non-condensing)

Certifications

CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TK-408K
Quick Installation Guide
4 sets of PS/2 KVM cable (2 x 1.2 m / 4 ft., 2 x 1.8 m / 6 ft.)
4 sets of audio cable (2 x 1.2 m / 4 ft., 2 x 1.8 m / 6 ft.)
