16-Port 10/100Mbps Switch
TE100-S16 (Version B1.2R)

High performance auto-sensing 16 port switch
Rack mountable and stackable sturdy metal enclosure
3.2Gbps switching capacity

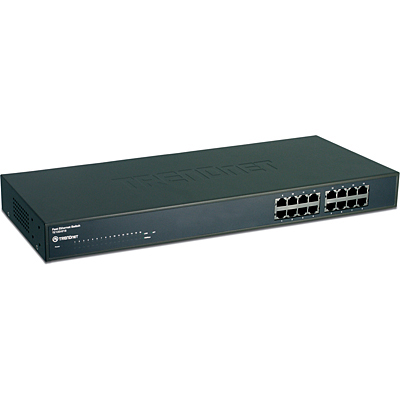

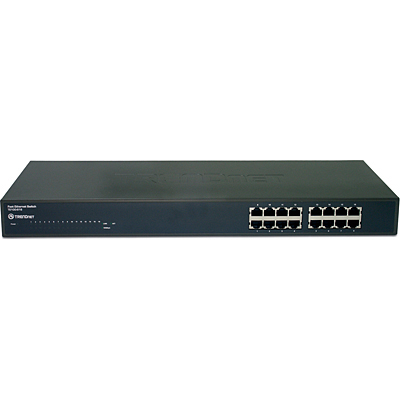

Click on image to enlarge

This 16-Port 10/100 switch is a high performance auto-sensing switch that automatically negotiates between 10Base-T and 100Base-TX network speeds. All ports support full/half-duplex mode for maximum network performance. Designed and built to increase network bandwidth, this 16-Port 10/100 switch is the best solution for both corporate and small business network environments.

16 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
Compliant with IEEE 802.3 / IEEE 802.3u standards
Provides 1.25Mbits RAM for Data Buffering
Integrated 8K MAC address entries
Compliant with Windows, Linux, and Mac Operating Systems
IEEE 802.3x Flow Control Operates and maximizes packet filtering
Store-and-Forward Switching method
Non-blocking Architecture
Max 3.2Gbps Switching Capacity
Plug & Play
Standard 19” (1U) rack mount design
5-year limited warranty


Hardware
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Interface	16 10/100Mbps Auto-MDIX RJ-45 Ports
Network Media	Ethernet: UTP/STP Cat. 3,4,5 Fast Ethernet: UTP/STP Cat. 5, 5e, 6
Switch Fabric	3.2Gbps Forwarding Capacity
Data Transfer Rate	Ethernet: 10/20Mbps (Half/Full Duplex) Fast Ethernet: 100/200Mbps (Half/Full Duplex)
Data RAM Buffering	1.25Mbits per device
MAC Table	8K Entries per device
Protocol	CSMA/CD
Transmission Method	Store-and-Forward
Power	100-240VAC, 50/60H, Internal Power Supply
Power Consumption	6 Watts (Max)

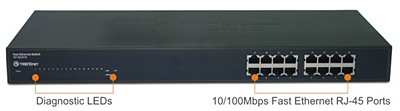

Diagnostic LED	Power, Link/ACT, 100Mbps
Weight	1.75kg (3.8lb)
Dimensions (W x H x D)	440 x 140 x 44mm( 17.3 x 5.51 x 1.73 in.)
Temperature	Operating: 0°C ~ 40°C (32°F ~ 104°F) Storage: -10°C to 70°C (14°F to 158°F)
Humidity	Operating: 10 % ~ 90 % (non-condensing) Storage: 5 % ~ 90 %(non-condensing)
Certifications	FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

Multi-Language Quick Installation Guide.
Power Cord
Rack Mount Kit
