100Base-TX to 100Base-FX Multi Mode ST Fiber Converter
TFC-110MST (Version v3.2R)

ST-type multi-mode fiber port connects over distances of up to 2km (1.2 miles)
10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
Functions as a stand alone converter or with the TFC-1600 fiber chassis

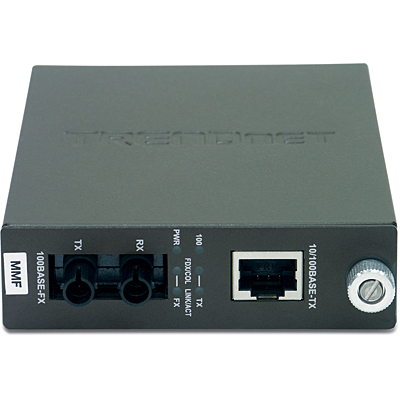

Click on image to enlarge

The TFC-110MST Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode ST-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (ST-Type).

Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
1 x 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
Auto MDIX for 10/100Base-TX port
1 x 100Mbps fiber port with Multi-mode ST-Type Connector
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Dip-switch for full and half duplex selection on fiber port
Wall-Mountable
Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
3-year limited warranty

Hardware
Standards	IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size	Standard Ethernet up to 1518bytes
Network Media	100Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters 100Base-FX: Multi-Mode fiber optic cable 50/125µm or 62.5/125 µm, up to 2 Km
Protocol	CSMA/CD
Ports	1 x 10/100Base-TX 1 x 100Base-FX(ST-type)
Dip Switch	FX: duplex mode (half/full)
Data Transfer Rate	100Mbps (Half-Duplex) 200Mbps (Full-Duplex)
Diagnostic LEDs	Per Unit : power Per Port : link/activity, full-duplex/collision, speed (on fiber port)
Power Adapter	7.5VDC, 1A external power adapter
Power Consumption	1.8 Watts (max.)
Dimensions	120 x 88 x 25 mm (4.7 x 3.46 x 0.98 in.)
Weight	354g (12.5 oz)
Temperature	UTP/STP RJ-45, 10/100Mbps, Half/Full Duplex, Auto-MDIX
LED Indicators:	Pwr/Stat, G, WAN, LAN1, LAN2, LAN3, LAN4
Power Adapter:	Input: 100~240VAC, 0.35A, 50~60Hz. Output: 5VDC, 2A
Dimensions (LxWxH):	200 x 181 x 37 mm (7.9x 7.1x 1.46 inches) (without antennas)
Weight:	567 g. (20 oz.)
Temperature:	Operating: 0°~ 40°C (32°~ 104°F) Storage: -25°~ 70°C (-13°~ 158°F)
Humidity	Max. 910% (non-condensing)
Certifications	FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TFC-110MST
Multi-Language Quick Installation Guide
Power Adapter (7.5V, 1A)
