8-Port Gigabit Switch
TEG-S80TXE (Version D1.0R)

Build a reliable high-performance Gigabit network in minutes
Stackable sturdy metal enclosure
Auto-Negotiation optimizes networking speeds for all 8 Gigabit ports

DISCONTINUED PRODUCT

The TEG-S80TXE (Version D1.0R) has been discontinued. It has been replaced by the TEG-S80g (Version V1.0R). For a list of discontinued products, click here.

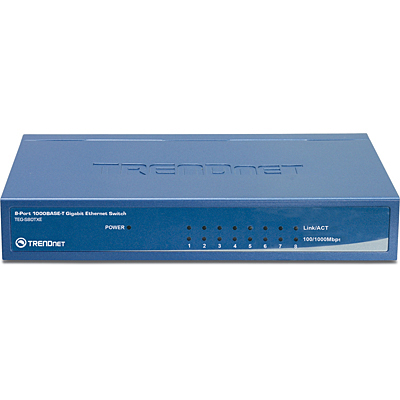

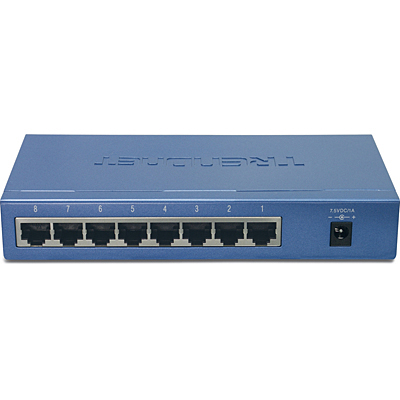

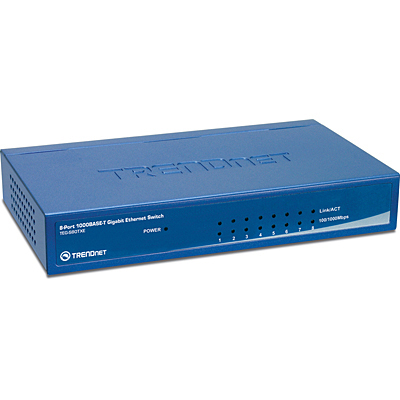

Click on image to enlarge

TEG-S80TXE Gigabit Ethernet Switch consists of eight 10/100/1000Mbps Gigabit Ethernet ports with Auto-negotiation and Auto-MDIX features. Users can connect Server(s) to the Gigabit port(s) to increase network performance or cascade Gigabit Switches together to create high-bandwidth Gigabit backbones. The TEG-S80TXE provides simple migration, scalability and flexibility to handle new applications and data types making it a highly reliable and cost effective solution for high-speed network connectivity.

8 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet Ports
Full/Half-duplex transfer mode for 10/100Mbps, Full-Duplex mode for 1000Mbps
Store-and-Forward switching method
Wire-speed reception and transmission
IEEE 802.3x flow control for full-duplex mode
Back pressure flow control for half-duplex mode
Integrated address Look-Up engine, supports 4K MAC addresses table
Operates and maximizes packet filtering and forwarding rate
Provides 128kbyte RAM data buffering
Sturdy metal housing
Diagnostic LEDs
Plug& Play
5-year limited warranty


Hardware
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T
Network Media	Ethernet: 2-pair UTP Cat. 3,4,5, 100 meters max Fast Ethernet: 2-pair UTP Cat. 5, 100 meters max Gigabit Ethernet: 4-pair UTP Cat. 5, 5e, 6, 100 meters max
Data Rate	Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex) Gigabit Ethernet: 2000Mbps (Full-Duplex)
Protocol	CSMA/CD
Topology	Star
Interface	8 10/100/1000Mbps Auto-MDIX RJ-45 Ports
Data RAM Buffer	128Kbyte per device
Filtering Table	4K entries per device
Power Consumption	5.8 watts (max)
Diagnostic LED	Power, Link/ACT, 100Mbps, 1000Mbps
Power Adapter	7.5V DC, 1A External Power Adapter
Dimension	171 x 98 x 28mm (6.7 x 3.86 x 1.1 inches)
Weight	450g (15.9oz.)
Temperature	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10°~ 70° C (14° ~ 158° F)
Humidity	Operating: 10%~90% (Non-Condensing) Storage: 5%~90% (Non-Condensing)
Safety Emissions	FCC, CE
