Product Families » USB / FireWire » USB 1.0 / 1.1 / 2.0 Devices » TU2-ET100

USB to 10/100 Mbps Adapter
TU2-ET100 (Version v4.0R)

Connect your laptop or PC at Fast Ethernet speeds
Quickly share data, music, movies and more
Compact design is ideal for on the go professionals

Click on image to enlarge

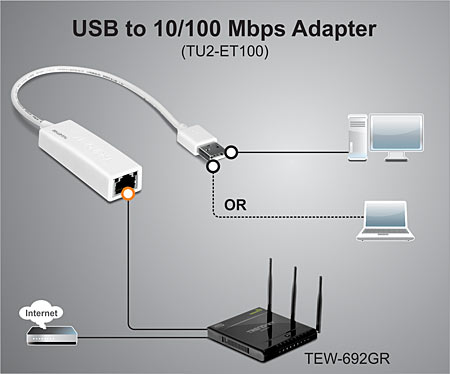

The TU2-ET100 is a high speed USB network adapter that allows you to instantly connect to a 10/100 Mbps network from a USB enabled desktop or Notebook PC. Compliant with USB 2.0 and backwards compatible with USB 1.0 and 1.1, you can share files and printers and also gain access to broadband Internet to explore valuable resources on the web.

Compliant with USB 2.0 and 1.1 specifications
Compliant with IEEE 802.3, 802.3u standards
Supports both full-duplex and half-duplex operations
Supports suspended mode and remote wake-up through link-up or magic packet
Supports IPv6
Compliant with Windows 7, Vista, XP, Mac OS X 10.4~10.6
Powered by USB port. No external power adapter required
Diagnostic LEDs
3-year limited warranty

HARDWARE
Standards	USB 2.0, 1.1, 1.0 IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
Data Transfer Rate	Ethernet: 10/20 Mbps (Half / Full Duplex) Fast Ethernet: 100/200 Mbps (Half / Full Duplex)
Embedded Buffers	20 KB SRAM for RX Packets buffering 8 KB SRAM for TX Packets buffering
Supported OS	Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit) Mac OS X 10.4~10.6
LEDs	Power (green), Link (amber)
Power	Bus-Powered
Power Consumption	178 mA
Power Management	Suspend Mode Wake on LAN
Dimension	Unit: 66 x 22 x 15 mm (2.6 x 0.8 x 0.6 in.) Cable: 245 mm (9.6 in.)
Weight	25 g (0.9 oz)
Temperature	Operating: 0°C~ 70°C (32°F~ 158°F) Storage: -10°C~ 80°C (14°F~ 176°F)
Humidity	Max 90% (non-condensing)
Certifications	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

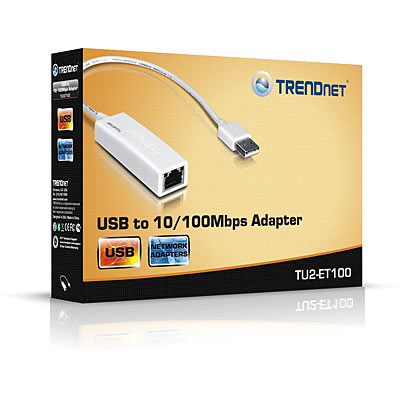

TU2-ET100
Multi-Language Quick Installation Guide
CD-ROM (Driver and User’s Guide)
