8-Port 10/100Mbps Fast Ethernet Switch
TE100-S8 (Version v1.2R)

Build a reliable Fast Ethernet network in minutes
Easy Plug and Play installation
Auto-Negotiation optimizes networking speeds for all 8 ports

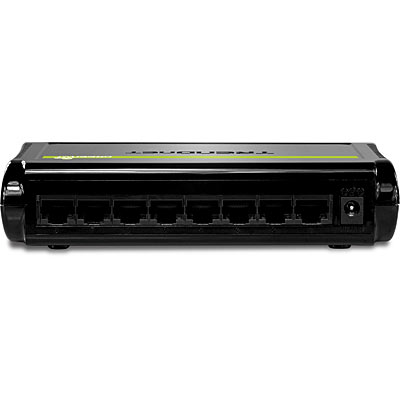

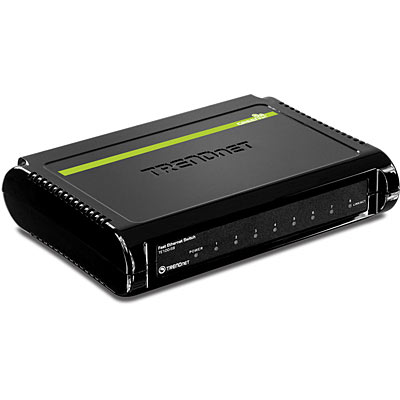

Click on image to enlarge

TE100-S8 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug-N-Play provides cost-effective and high performance solutions.

8 x 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
Compliant with IEEE 802.3 / IEEE 802.3u standards
IEEE 802.3x Flow Control support
Provide 2K MAC address entries
Compliant with Windows, Linux, and Mac Operating Systems.
Store-and-Forward Switching method
Non-blocking Architecture
Diagnostic LEDs
Plug & Play
3-years limited warranty

Hardware
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control
Network Media	Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm
Data Rate	Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
Switch Fabric	1.6Gbps Forwarding Capacity
Topology	Star
Interface	8 10/100Mbps Auto-MDIX RJ-45 Ports
Filtering Table	2K Entries per device
Buffer Memory	512Kbytes per device
Power Consumption	3.2 watts (max)
Diagnostic LED	Power, Link/ACT
Power Adapter	Switching Power 5V DC 800mA / 1A Linear Power 7.5V DC 1A / 9V DC 600mA
Dimension	154 x 110 x 33mm (6 x 4.3 x 1.3 inches)
Weight	225g (8oz.)
Temperature	Operating: 0° ~ 50° C (32° ~ 122° F)
Humidity	10%~90% (Non-Condensing)
Certification	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TE100-S8
Multi-Language Quick Installation Guide
Power Adapter (5V DC, 800mA)
