AC1750 Dual Band Wireless Router with StreamBoost™ Technology

TEW-824DRU (Version v1.1R)

  • Low latency gaming/voice prioritization
  • AC1750: 1,300 Mbps WiFi AC + 450 Mbps WiFi N bands
  • Intelligent traffic shaping
  • Pre-encrypted WiFi for your convenience
  • All Gigabit wired ports
  • USB share port
  • High power amplifiers extend wireless coverage
  • Compatible with DD-WRT Open Source Firmware***

TRENDnet's AC1750 Dual Band Wireless Router with StreamBoost™ Technology, model TEW-824DRU, is built to perform in a busy connected home. It generates two concurrent WiFi networks—a 1,300 Mbps WiFi AC and a 450 Mbps WiFi N network. Qualcomm® StreamBoost™ technology prioritizes low latency gaming and voice streams, shapes network traffic to optimize each connected experience, and graphically displays all connected device/application traffic. Use the Gigabit Ethernet ports and USB share port to further extend an extreme performance digital network.

A person in a yellow and black striped shirt is shown in two sections. In the left section, labeled Without StreamBoost, the person holds a game controller above their head with a frustrated expression. In the right section, labeled With StreamBoost, the same person is shown holding the game controller in a normal playing position, appearing focused. The image demonstrates the improved gaming experience with StreamBoost technology.

Optimized Gaming

When latency is the difference between winning and losing, Streamboost has your back. It helps eliminate hated stutter and lag with a laser focus on providing the lowest latency possible. When high bandwidth traffic is killing other networks, Streamboost thrives by prioritizing gaming, video, and voice over other non-critical data streams.

The left section, labeled Without StreamBoost, shows a chaotic traffic jam with many cars stuck and unable to move freely. The right section, labeled With StreamBoost, depicts a smooth flow of traffic with cars moving quickly and efficiently. The contrast between the two sections highlights the effectiveness of StreamBoost in managing and optimizing traffic flow.

Traffic Shaping

StreamBoost dynamically shapes network traffic, delivering an optimized user experience, as applications and devices become active. Out of the Box, Streamboost automatically identifies, classifies, and intelligently manages all traffic. No user management is required. However, users can choose to manually override default device priority.

The screen displays a parental control interface for managing internet usage. The top section shows a list of applications and their respective bandwidth usage on a device labeled PC1. The applications listed include YouTube, Web, Web Video, and Bittorrent, each with a progress bar indicating data usage and a status icon. Below this, two graphs illustrate bandwidth usage over time for different devices, with the left graph labeled Bandwidth from Devices and the right graph labeled Bandwidth to Devices. The left sidebar includes a logo and the text Parental Control and Qualcomm Streamboost.

App + Device Aware

With more devices and applications downloading, streaming, and playing than ever before, today's home network needs a smarter way to deliver the best online experience. StreamBoost does just that. Constant updates provide the ability to identify new-to-market applications and devices and maintain an optimized experience as your home network changes.

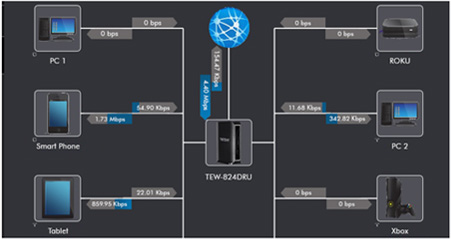

A network traffic mapping diagram for a TEW-824DRU router includes various connected devices such as PC 1, a smartphone, a tablet, a Roku device, PC 2, and an Xbox. Each device is connected to the router, and the diagram displays the data transfer rates in bps or Kbps for each connection. PC 1 and the Roku device show 0 bps, the smartphone shows 1.73 Mbps and 54.90 Kbps, the tablet shows 859.95 Kbps and 22.01 Kbps, PC 2 shows 11.48 Kbps and 34.82 Kbps, and the Xbox shows 0 bps. The router is connected to the internet via a WAN port labeled 1000 Mbps.

Traffic Mapping

See your smart phones, tablets, computers, game consoles, and all other connected devices graphically mapped with their respective upload and download bandwidth usage. Select a device such as your computer to see detailed network loading of all of its applications and programs. This powerful network map feature is a great troubleshooting tool.

StreamBoost Traffic Shaping includes four main features: Optimized Gaming, which prioritizes latency for gaming and video to eliminate stutter and lag caused by network traffic; Traffic Shaping, which intelligently and automatically allocates the optimal amount of bandwidth for each network connection; App and Device Aware, which seamlessly recognizes and manages bandwidth allocation for both applications and hardware devices; and Traffic Mapping, which allows users to explore a map of all connected network devices and applications and their respective real-time traffic usage.
The device supports Wireless AC with speeds up to 1300 Mbps for HD 3D movies, HD gaming, and music. Wireless N supports up to 450 Mbps for surfing, web chat, and email. The router has several ports including USB 2.0, WPS, Gigabit, WAN, power on/off button, and power ports.

Easy Setup

Get up and running in minutes with the intuitive guided setup

Simultaneous AC1750 Dual Band

Concurrent high performance 1,300 Mbps WiFi AC + 450 Mbps WiFi N bands

Qualcomm®StreamBoost™Latency Prioritization

StreamBoost™prioritizes latency for gaming and voice streams to eliminate stutter or lag caused by other high bandwidth network traffic such as torrent downloads

Qualcomm®StreamBoost™Traffic Shaping

StreamBoost™intelligently allocates the optimal amount of bandwidth for each individual device/application and users can further manually assign device priority

Device/Traffic Mapping

See all connected network devices/applications and their respective real-time network usage and review historical usage data

Pre-Encrypted Wireless

For your convenience the WiFi is pre-encrypted with its own unique password

Wireless Coverage

High performance amplifiers maximize wireless coverage

Gigabit Ports

Gigabit ports support high performance wired connections

USB Share Port

Share content across the network with the USB share port

Guest Network

Create an isolated network for guest internet access only

Parental Controls

Control access to specific websites or types of content

One Touch Connection

Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

Targeted Beamforming

Increased real-time performance by directing stronger wireless signals to your specific location

Backward Compatible

Compatible with legacy wireless devices

Energy Savings

Embedded GREENnet technology reduces power consumption

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (2.4 GHz 450 Mbps, 5 GHz up to 450 Mbps)
  • IEEE 802.11ac (up to 1300 Mbps)
Hardware Interface
  • 4 x Gigabit LAN ports
  • 1 x Gigabit WAN port
  • 1 x USB 2.0 (Storage FTP, Samba)
  • Power switch
  • WPS button
  • Reset button
  • LED indicators
Special Features
  • StreamBoost™ automatically identifies and classifies network traffic to maximize bandwidth and speed
  • Multi-Language interface: English, French, Spanish, German, Russian
  • Pre-encrypted wireless network
  • IPv6 support
  • 1 guest network per band with option for internet access only
  • Up to 2 additional SSIDs per band
  • Dynamic DNS support for dyn.com, no-ip.com, and easydns.com
  • Samba/FTP server support
  • Implicit and Explicit Beamforming
Access Control
  • Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet
  • ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough
  • Parental (Access) Controls: MAC, URL, IP Filter
Quality of Service
  • WMM
  • StreamBoost™ Traffic Shaping
Internet Connection Types
  • Dynamic IP (DHCP)
  • Static IP (Fixed)
  • PPPoE (Dynamic IP/Static IP)
  • PPTP (Dynamic IP/Static IP)
  • L2TP(Dynamic IP/Static IP)
  • Russia PPPoE (Dynamic IP/Static IP)
  • Russia PPTP (Dynamic IP/Static IP)
  • Russia L2TP (Dynamic IP/Static IP)
  • IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)
Management/Monitoring
  • Local/remote web based management
  • Upgrade firmware
  • Backup/restore configuration
  • Internal logging
  • Reboot
  • Restore to factory defaults
  • Ping test
Routing
  • Static
  • Dynamic (RIP v1/2)
Frequency
  • 2.412 - 2.472 GHz
  • 5.180 – 5.825 GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
  • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol
  • CSMA/CA with ACK
Antenna Gain
  • 2.4 GHz: 3 x 2 dBi (max.) internal; 5 GHz: 3 x 3 dBi (max.) internal
Wireless Output Power
  • 802.11a: FCC: 25 dBm (max.)/ETSI: 25 dBm (max.) / IC: 26 dBm (max.) @ 54 Mbps
  • 802.11b: FCC: 23 dBm (max.) / ETSI: 21 dBm (max.) / IC: 23 dBm (max.) @ 11 Mbps
  • 802.11g: FCC: 27 dBm (max.) / ETSI: 20 dBm (max.) / IC: 27 dBm (max.) @ 54 Mbps
  • 802.11n (2.4 GHz): FCC: 27 dBm (max.) / ETSI: 20 dBm (max.) / IC: 27 dBm (max.) @ 450 Mbps
  • 802.11n (5 GHz): FCC: 25 dBm (max.) / ETSI: 25 dBm (max.) / IC: 26 dBm (max.) @ 450 Mbps
  • 802.11ac: FCC: 25 dBm (max.) / ETSI: 25 dBm (max.) / IC: 26 dBm (max.) @ 1300 Mbps
Receiving Sensitivity
  • 802.11a: -65 dBm (typical) @ 54 Mbps
  • 802.11b: -83 dBm (typical) @ 11 Mbps
  • 802.11g: -65 dBm (typical) @ 54 Mbps
  • 802.11n (2.4 GHz): -61 dBm (typical) @ 450 Mbps
  • 802.11n (5 GHz): -61 dBm (typical) @ 450 Mbps
  • 802.11ac: -51 dBm (typical) @ 1300 Mbps
Wireless Channels
  • 2.4 GHz: FCC: 1-11; ETSI: 1-13
  • 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**
Power
  • Input: 100 – 240 V AC, 50 - 60 Hz, 0.8 A
  • Output: 12 V DC, 2 A external power adapter
  • Consumption: 18 Watts max.
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 72 x 151 x 191 mm (2.8 x 6.0 x 7.5 in.)
Weight
  • 408 g (14.4 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TEW-824DRU
  • Quick Installation Guide
  • CD-ROM (User's Guide)
  • Network cable (1.5 m/5 ft.)
  • Power adapter (12 V DC, 2 A)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and cover-age will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 1.3 Gbps use with a 1.3 Gbps 802.11ac wireless adapter.
** Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.
***The provided open source firmware has no affiliation with, nor was it produced by TRENDnet. Using this firmware requires advanced knowledge and experience with OpenSource code. TRENDnet does not provide support for this firmware. Use of this firmware voids the product warranty. This firmware may damage your product, use at your own risk.

Qualcomm® StreamBoost™ is a trademark of Qualcomm Atheros, Inc.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
