28-Port 2.5G Switch with 10G SFP+ Ports

TEG-S50284 (Version v1.0R)

  • 24 x 2.5G RJ-45 ports
  • 4 x 10G SFP+ ports
  • Compatible with existing Cat5e or better cabling
  • Fanless design eliminates noise
  • Rack mountable or wall mountable for installation flexibility
  • 200Gbps switching capacity
  • IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s 28-Port 2.5G Switch with 10G SFP+ Ports, model TEG-S50284. This multi-gigabit network switch comes equipped with 2.5GBASE-T RJ-45 and 10G SFP+ ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e cabling or 10Gbps over fiber cabling. This high-speed switch features a durable metal enclosure, and the fanless design lowers energy consumption and eliminates operating noise. The included rackmount brackets are well-suited for wall mount or 19” 1U rack installations. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

A circular gauge with a black background and a gradient blue outer ring displays a speedometer-like design. The gauge is marked with numbers ranging from zero to ten thousand in increments of two hundred fifty, with the numbers increasing in size and color intensity as they approach the higher end of the scale. The needle points to two thousand five hundred, which is highlighted in large red and yellow numbers. The unit of measurement, Mbps, is written in yellow text near the lower left side of the gauge.

Hardware Interface

Equipped with 2.5GBASE-T RJ-45 and 10G SFP+ ports that provide ultra-fast speeds capable of up to 2.5Gbps over Cat5e or better cabling or 10Gbps over fiber cabling.

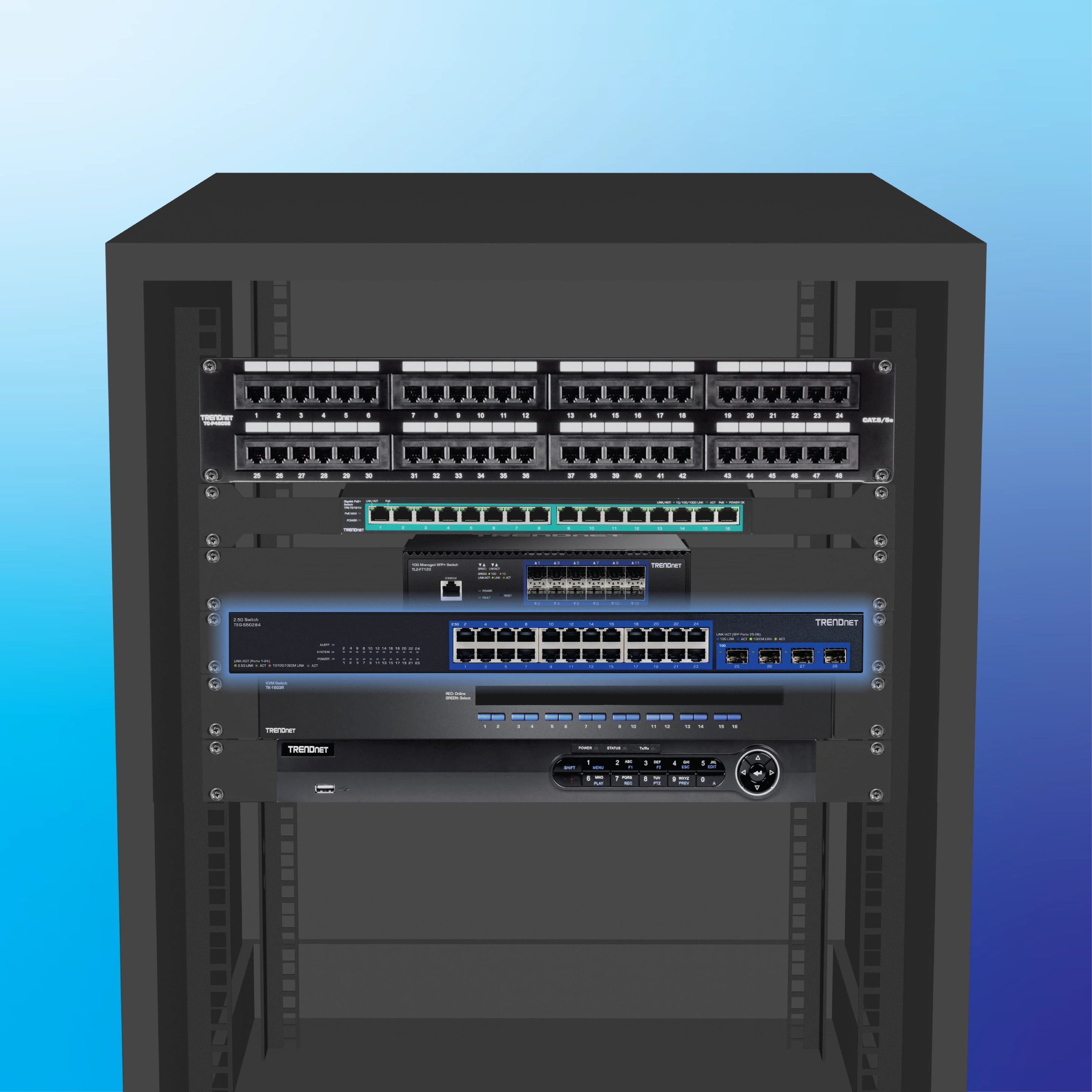

A server rack contains various network equipment. The rack includes multiple network switches and patch panels, all neatly organized and mounted. The equipment is labeled with the brand name TRENDnet, and several rows of Ethernet ports are visible. This setup is relevant for network management and IT infrastructure, showcasing an organized and efficient way to handle network connections.

Rack Mountable

The multi-gig switch features a durable metal housing with a convenient rack mountable design for greater installation flexibility.

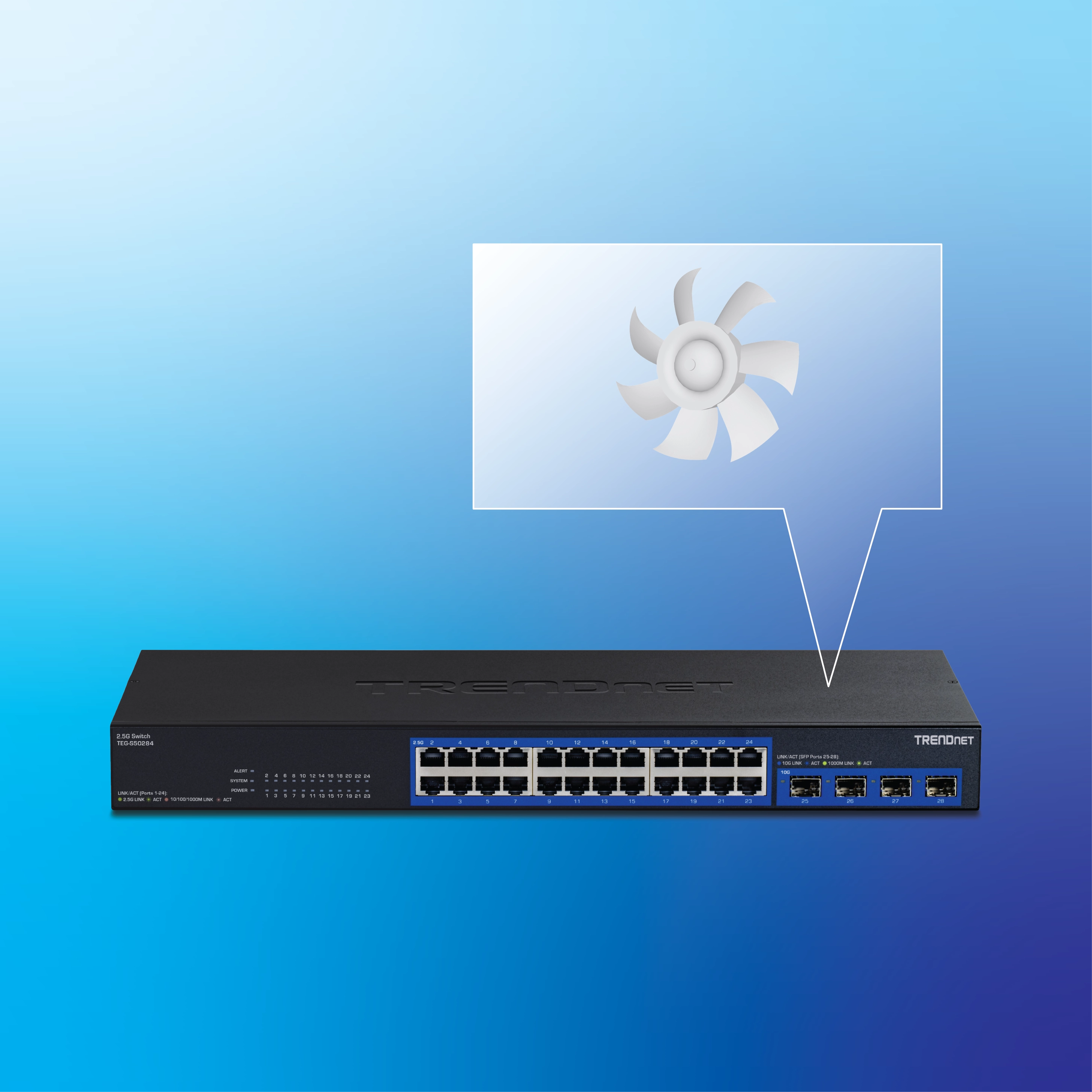

A black Trendnet 28-port network switch is displayed with 24 Ethernet ports and 4 additional ports on the right side. A magnified view of a cooling fan above the switch highlights the presence of internal cooling mechanisms. The switch includes the model number TEG-S50284 and other specifications.

Fanless

The fanless design of this 28-port 2.5G switch lowers energy consumption costs and eliminates operating noise.

A TRENDnet network switch model TEG-50284 with 24 2.5G RJ-45 ports and 4 10G SFP+ ports. The switch has LED indicators for status monitoring. Below the switch, a building network setup is illustrated, including a PoE camera, PoE outdoor extender, 2.5G PoE+ injector, WiFi 6 access point, 2.5G USB-C adapter, and a WiFi 6 access point bridge kit connecting two buildings. The setup highlights the integration of various network devices and the connectivity provided by the TRENDnet switch.

Easy Installation

No configuration needed, simply connect network devices to the 28-port multi-gig switch

2.5G Ports

This multi-gigabit switch is equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

10G SFP+ Ports

The 2.5G switch with SFP+ ports features 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability

Switching Capacity

200Gbps switching capacity

Fanless

Fanless design on the 28-port 2.5G switch lowers energy consumption and eliminates operating noise

Housing Design

Sturdy metal housing

19” Rackmount

Sturdy rack mountable 1U housing with mounting kit included

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

VLAN Passthrough

Supports IEEE 802.1Q to pass VLAN traffic

LED Indicators

LED indicators on this 28-port 2.5G switch conveniently convey port status

Standards
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 24 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
  • 4 x 10G SFP+ ports (1Gbps/10Gbps)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex) 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex)
  • Gigabit: 2Gbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
  • Gigabit SFP: 2Gbps (full duplex)
  • 10G SFP+: 20Gbps (full duplex)
Performance
  • Switching Capacity: 200Gbps
  • RAM Buffer: 2MB
  • Jumbo Frames: 12KB
  • MAC Address Table: 32K entries
  • Forwarding Rate: 59.52Mpps (64-byte packet size)
Special Features
  • Rack mountable
  • VLAN Passthrough
  • ESD 6kV for ethernet ports
Power
  • Input: 90 – 264V AC, 47/63 Hz
  • Output: 12V DC, 5A
  • Max. Consumption: 38.88W
Fan/Acoustics
  • Fanless design
MTBF
  • 426,000 hours @ 25° C
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 440 x 196 x 44mm (17.36 x 7.71 x 1.73 in.)
Weight
  • 2890g (6.37lbs)
Certifications
  • FCC
  • CE
  • LVD
Warranty

PACKAGE CONTENTS
  • TEG-S50284
  • Quick Installation Guide
  • Rackmount kit
  • Power cord (1.5m / 5 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
