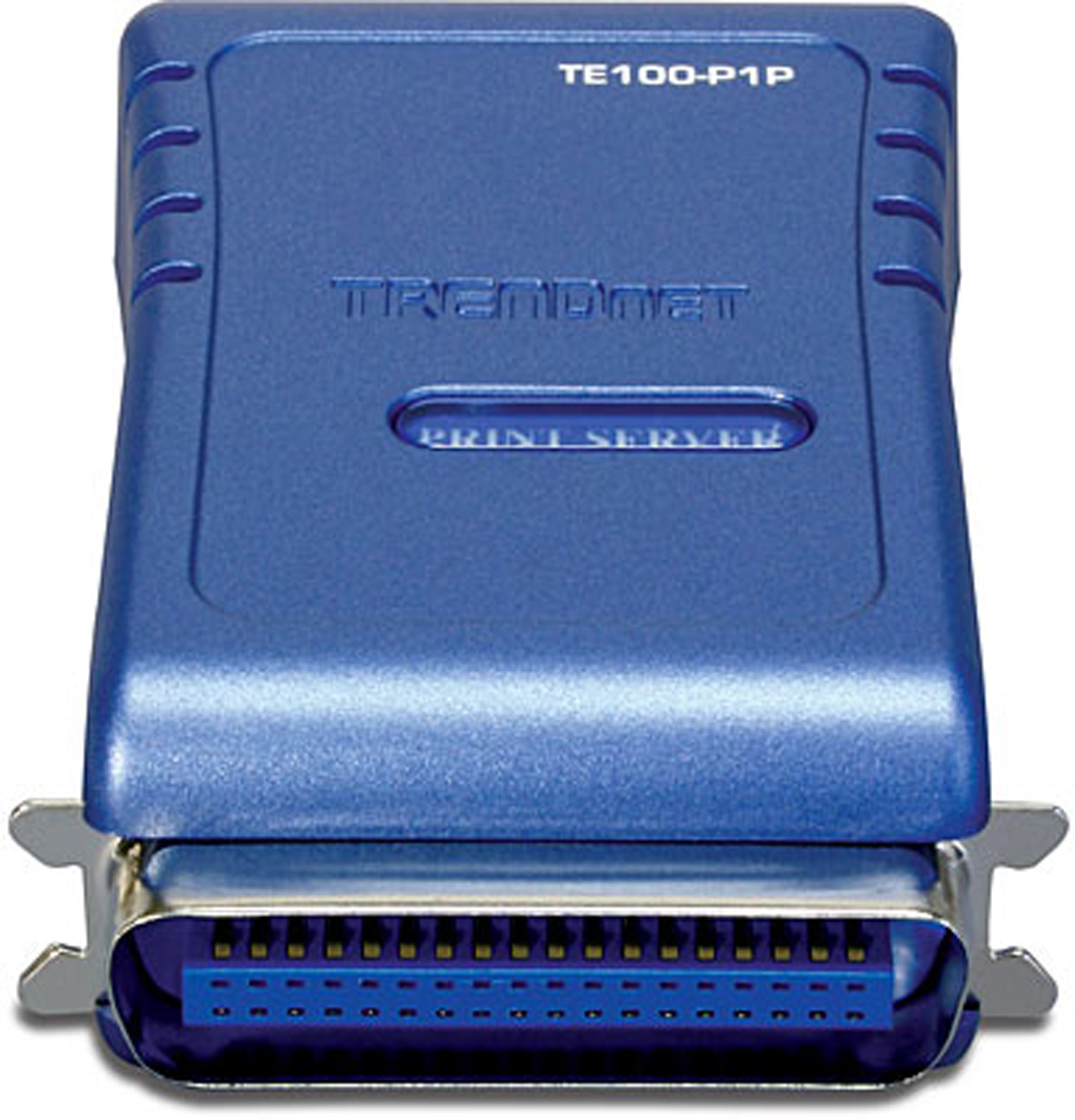

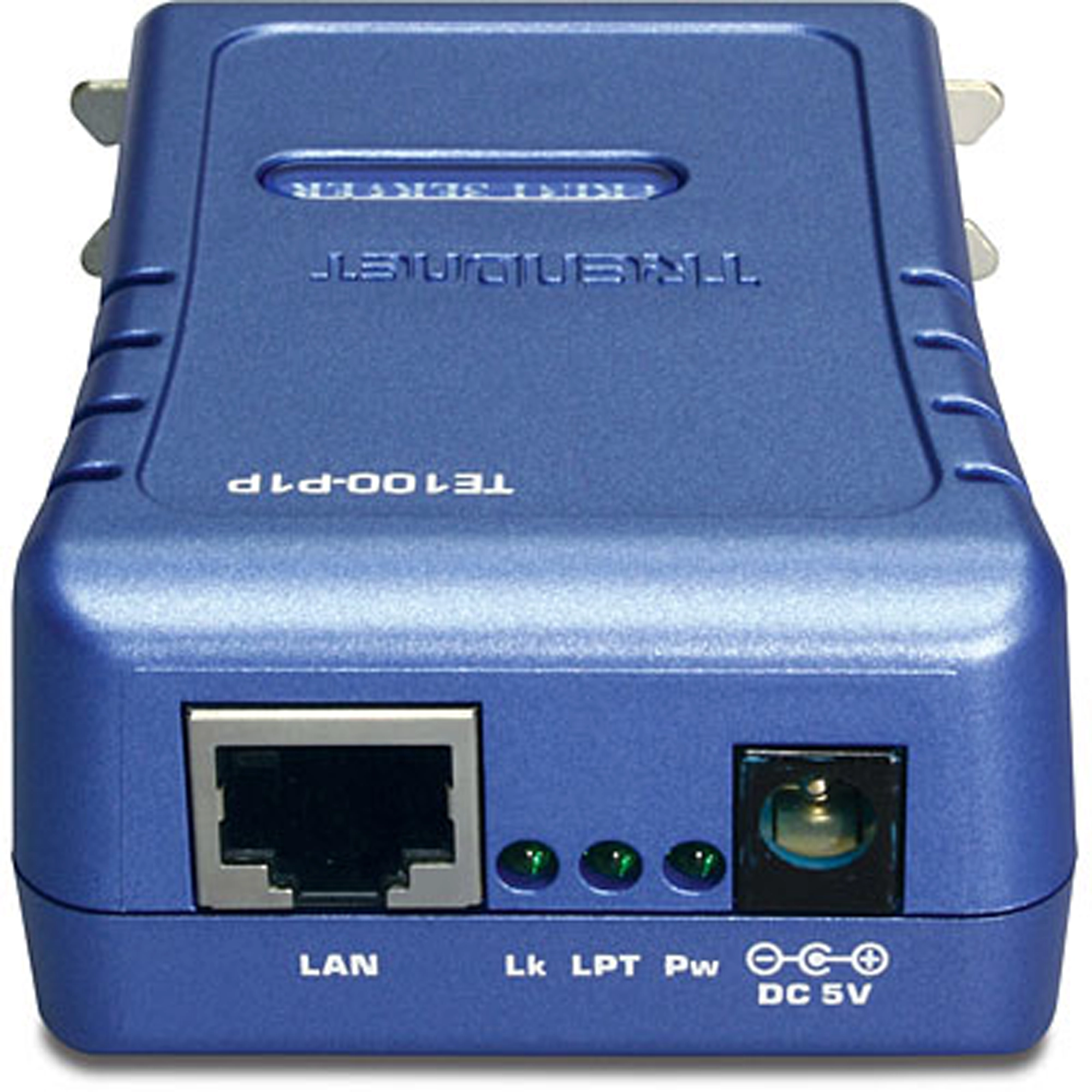

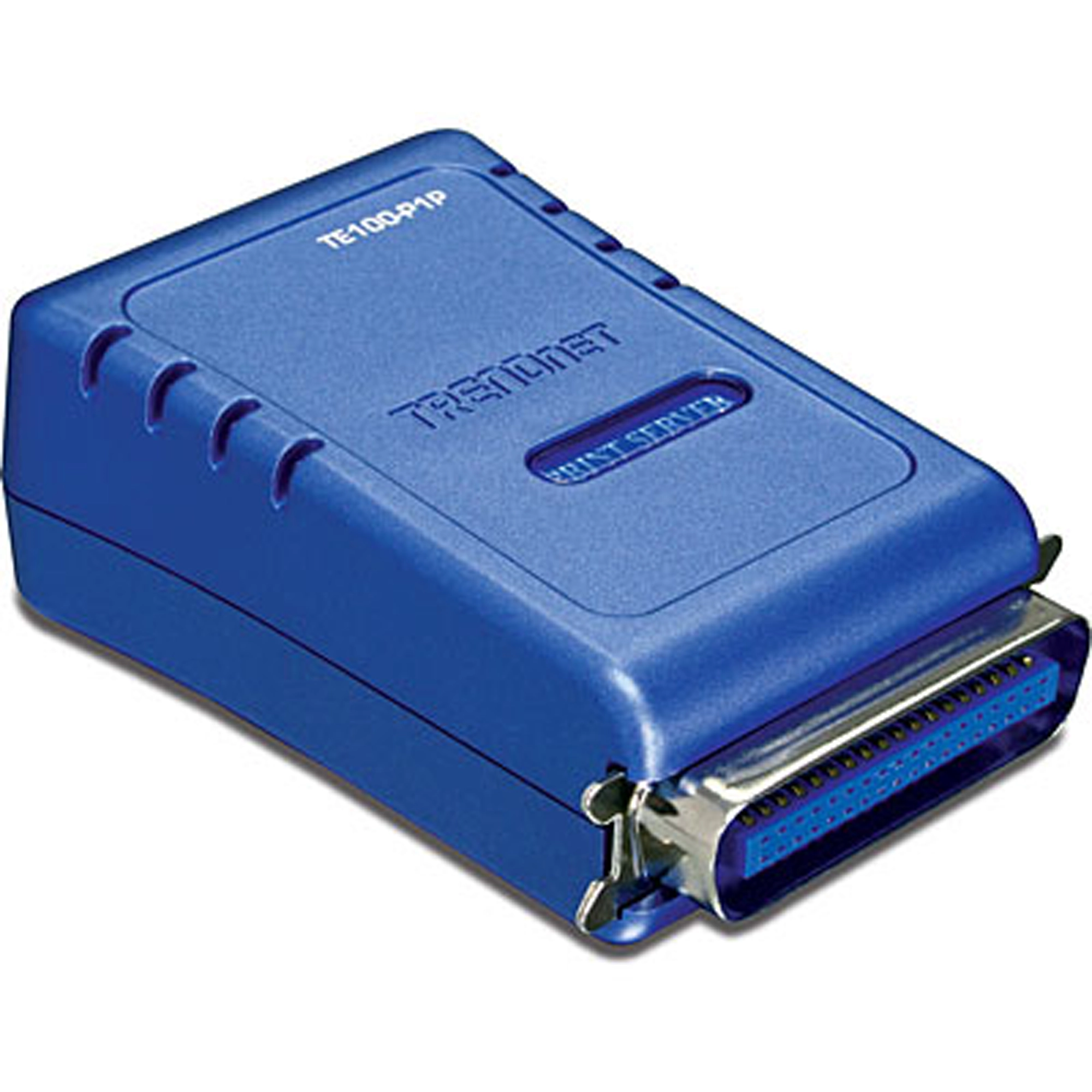

1-Port Parallel Print Server

TE100-P1P (Version 2.xR)

  • Turns a standalone parallel printer into a shared network resource
  • Manages print server through web browser or utility

The 10/100Mbps Parallel Print Server is designed to transform virtually any conventional stand-alone networkable parallel port printer into a shared resource on your network. Compact in design, but packed with features the TE100-P1P is the most cost effective way to add a parallel printer anywhere on your network!

  • Compliant with Bi-Directional 36-pin parallel port
  • One RJ-45 10/100Mbps Auto-MDIX Fast Ethernet port
  • Supports LPR printing for Windows
  • Supports IPP printing for Windows 7/Vista/XP/2000
  • Web-based (HTTP) configuration
  • Supports second HTTP port for remote Web configuration
  • Supports Macintosh Rendezvous Zero Configuration*
  • Windows-based setup wizard and configuration utility
  • Built-in flash memory for easy firmware upgrade
  • 3-years limited warranty

*Mac Systems are only compatible with Post-Script printers

HARDWARE
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
Printer Interface
  • IEEE 1284 Male Centronics (DB-36)
LAN Port
  • 10/100Mbps MDIX Ethernet Port
LED
  • Power, LPT, Link/Act
Transport Protocol
  • TCP/IP, SMB
OS Support
  • Windows 7(32/64-bit)/Vista(32/64-bit)/2003 Server/XP(32/64-bit)/2000/ME/98SE
  • Netware 5.x NDPS LPR Remote Printing (TCP/IP)
  • Unixware, Linux
  • Mac OS X 10.1~10.6
Management
  • PS Utility or Web-Browser Configuration
Power
  • 5V DC 2.5A External Power Adapter
Dimension (L x W x H)
  • 57 x 90 x 32mm (2.2 x 3.5 x 1.3 inches)
Weight
  • 74 g (2.6 oz.)
Temperature
  • Operating: 5°~40°C (41°~104°F)
  • Storage: -25°~50°C (-13°~122°F)
Humidity
  • 5%~95% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TE100-P1P
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power Adapter (5V DC, 2.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
