8-Channel HD CCTV DVR Surveillance Kit

TV-DVR208K (Version v1.0R)

8-Channel CCTV digital video recorder
Pre-installed 1 TB SATA HDD
Includes eight outdoor ready HD cameras
Plug and play up to 8 CCTV cameras
Video recording supported up to 1080p HD

TRENDnet's 8-Channel HD CCTV DVR Surveillance Kit, model TV-DVR208K, offers a comprehensive video, storage, and management solution. The DVR kit comes with a pre-installed 1 TB hard drive plus eight 1080p HD IR analog cameras, each with an IP66 outdoor weather rating. With a plug and play camera installation, the DVR is simple to use and conveniently powers all eight cameras. Connect your TRENDnet DVR kit to your network for local and remote access to your surveillance system. Record one week of continuous video and utilize the advanced video playback features from the intuitive user interface.

The illustration shows a security system setup with eight surveillance cameras positioned in a row above a monitor displaying the word REC. Below the monitor, there is a digital video recorder (DVR) with various input and output ports.

Standalone HD DVR

This standalone CCTV HD DVR includes a preinstalled 1 TB HDD that provides days of continuous 1080p video recording for up to eight CCTV cameras (display sold separately).

A security camera is connected to the back panel of a DVR system. The DVR system features multiple ports, including eight circular ports, a VGA port, an HDMI port, and Ethernet and USB ports. The camera is shown with a cable leading to one of the circular ports on the DVR, indicating where it should be connected.

Plug-and-Play Installation

The DVR auto-recognizes and powers TRENDnet CCTV cameras – simply connect the included cameras and start recording surveillance video.

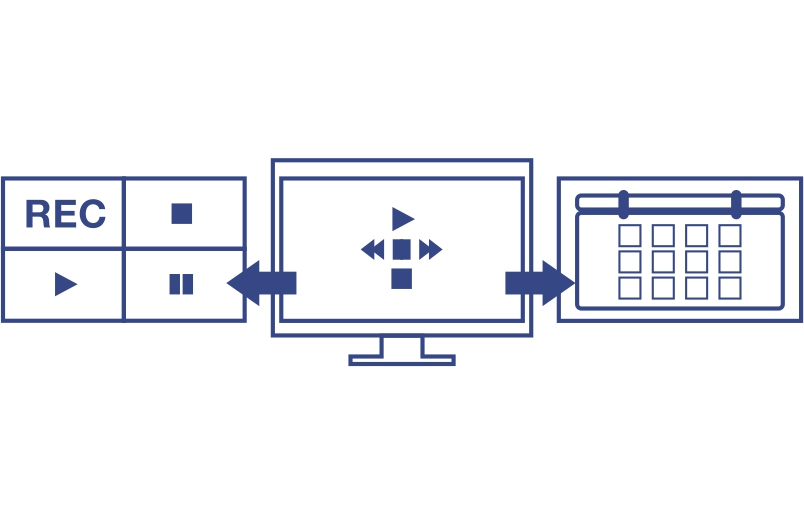

The sequence shows three main elements connected by arrows. On the left, a panel features buttons labeled REC, a play button, and a pause button. In the center, a monitor displays playback control icons including play, pause, forward, and backward. On the right, there is a calendar interface with selectable dates, visually representing the process of managing recording schedules, playback controls, and viewing preferences.

Intuitive Interface

Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules, and advanced playback options.

The back panel of an 8-channel HD CCTV DVR surveillance kit shows various labeled ports. These include eight BNC connectors, an HDMI port, audio input and output jacks, USB ports, a power port, a grounding point, a network port, and a VGA port. Security cameras are connected to the BNC connectors.

TV-DVR208 Hardware

BNC Connectors

Plug and play CCTV cameras to the eight BNC connectors

Storage Bay

Pre-installed 1 TB SATA hard drive

Network Port

Ethernet network port for uplink connection to the internet for remote viewing

Display Ports

HDMI and VGA display ports

Audio Ports

Audio in and out ports

USB Ports

One USB port for the included mouse and one for video exporting

TV-DVR208 Management

Mobile App

See live video on a mobile device with the free iOS® and Android™apps

Remote Access

Access the DVR over the internet

Camera Setup

Auto-recognizes compatible TRENDnet CCTV cameras

Live View

Single camera and multi-view modes with time adjustable auto-scan function

Camera Management

For each camera, manage on screen display, image settings, motion detection, privacy masks, tamper detection, and video loss

Video Recording

Record up to 1080p HD video at 12 fps

Recording Time

(A) 72 hours of recording per camera: 8 cameras with continuous recording at 1920 x 1080 at 12 fps with pre-installed 1 TB HDD
(B) 6 days of recording per camera: 8 cameras with continuous recording at 720p at 12 fps with pre-installed 1 TB HDD

Scheduled Recording

Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full

Advanced Playback

Advanced archived video playback with a quick reference timeline and calendar

Video Export

Quickly export specific video recordings via the USB 2.0 port

Dynamic DNS Support

Support for dyn.com and noip.com

DVR Camera Hardware

Adjustable Bracket

Fully adjustable integrated mounting bracket provides installation flexibility

Outdoor Ready

Outdoor IP66 weather rated and an operating temperature range of -40 ° – 60 °C (-40° – 140 °F)

2 Megapixel

Record 1920 x 1080 HD video at 12 fps

Night Vision

Night vision up to 20 meters (66 ft.) in complete darkness

Smart IR

Dynamic IR adjustment optimizes night visibility

DVR Specifications
Video Input	8 channels Interface: BNC (1.0 Vp-p, 75 Ω)
Video Output	HDMI and VGA display outputs Resolution: 1920 x 1080 (1080p), 1280 x 1024, 1280 x 720 (720p), 1024 x 768 @ 60Hz Up to 22 fps
Audio	Analog audio in / out, RCA (linear, 1KΩ) Compression: G.711u
Storage	One 3.5" SATA I/II HDD or SSD up to 6 TB storage
Network Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x
Device Interface	1 x 10/100 Mbps network port 2 x USB 2.0 ports 8 x BNC connectors 1 x 1 TB HDD (pre-installed) HDMI port VGA port Analog audio in port Analog audio out port Power port LED indicators (Power, Storage, and Network) Grounding point
Network Protocol	IPv4, IPv6, UDP, TCP, ICMP DHCP, NTP, DNS, DDNS, SMTP, FTP HTTP, UPnP, RTSP, RTP, RTCP
Power	Input: 100 – 240 V AC, 50/60 Hz, 0.6A Output: 12 V DC, 1.5 A Consumption: 8 W max.
Operating Temperature	-10 - 55 °C (14 - 131 °F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	200 x 200 x 45 mm (7.9 x 7.9 x 1.8 in.)
Weight	1.15 kg (2.53 lb.)
Management Interface	Live view: Single camera or quad-view Camera management : On screen display: camera name, date, week, and date format Image quality: brightness, contrast, saturation, hue, mirror PTZ: pan, tilt, zoom, focus, iris, preset points, pattern, cruise, patrol Motion detection: define custom motion detection areas, motion sensitivity, and triggering channels Privacy masks: define custom privacy mask areas Video tamper detection: trigger actions if the viewing field darkens suddenly Scheduled recording: continuous and motion detection Video recording: Record up to 1080p HD video Holiday scheduling for custom recording schedules during observed holidays Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag Video export: tag, cut, and export video clips Local live view settings: define screen layout and channel viewing sequence Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions Supported dynamic DNS services: Dyn.com and NO-IP.com Management Setting: maximum 32 user accounts Remote Viewing and Management User interface compatible with Internet Explorer^® 9.0 or higher, Safari^® 4.0 or higher
TRENDnet IP View App	Free iOS^® and Android^™ app View your DVR video on your mobile device Take snapshots Zoom
Warranty	2 year Hard Drive: manufacturer warranty
Camera Specifications
Lens	Focal Length: 3.6 mm Sensor: 1/ 2.7” CMOS sensor
Viewing Angle	82.2˚
Minimum Illumination	IR off: 0.01 lux IR on: 0 lux 20 m distance IR wavelength : 850 nm
H.264 Resolution	Main stream: 1920 x 1080 up to 12 fps Sub stream: 960 x 576 up to 22 fps
Device Interface	IR LEDs BNC connectors Power jack
Housing	IP66 rated
Dimension	70 x 70 x 154 mm (2.75 x 2.75 x 6 in.)
Weight	300 g (0.7 lbs.)
Operating Temperature	-40 – 60 °C (-40 – 140 °F)
Humidity	Max. 90% non-condensing
Power	Input: 100 - 240 V AC , 50/60 Hz, 0.7 A Output: 12 V DC, 2 A external power adapter Consumption: 4 W max.
Warranty	2 year

PACKAGE CONTENTS

TV-DVR208
8 x AC100
8 x BNC / power cables (60 ft.)
1 x 1TB HDD
2 x Camera power splitter cables
Network cable (1.8 m / 6 ft.)
HDMI cable
Optical mouse
CD-ROM (Utility / User's Guide)
Quick Installation Guide
Power adapter for DVR (12 V DC, 1.5 A)
2 x Power adapter for cameras (12 V DC, 2 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
