16-Port Gigabit GREENnet Switch

TEG-S16D (Version v1.0R)

16 x Gigabit ports
Quality of Service traffic prioritization pass-through support (802.1p QoS)
32 Gbps switching fabric
Jumbo Frame support
Fanless design
GREENnet energy saving technology

TRENDnet's 16-Port Gigabit GREENnet Switch, model TEG-S16D, provides performance, proven reliability, and reduced power consumption. Embedded energy saving GREENnet technology works right out of the box with no management required. This fanless unmanaged desktop switch offers a total switching capacity of 32 Gbps and 802.1p Quality of Service traffic prioritization pass-through support.

The illustration depicts a man holding a laptop in a server room with multiple wires visible.

Gigabit Networking

Sixteen Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 9 KB.

GREENnet Energy Savings

GREENnet technology saves energy by powering down unused ports and improving the efficiency of used ports.

An illustration of a three-level freeway that resembles a figure-eight shape, featuring cars and buses.

QoS Prioritization

MAC level IEEE 802.1p Quality of Service (QoS) traffic prioritization pass-through support.

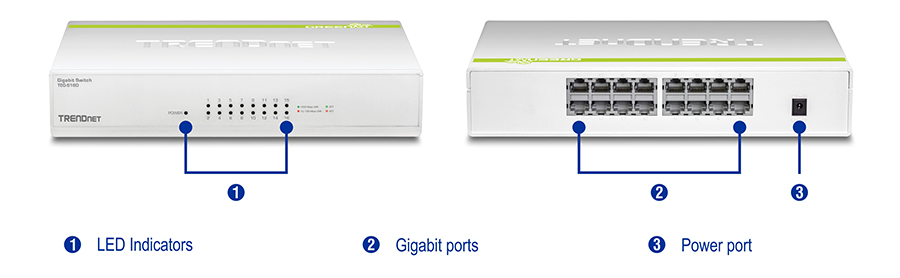

Two views of the 16-Port Gigabit GREENnet Switch TEG-S16D. On the left is the front view with numbered labels for LED Indicators. On the right is the back view with numbered labels for Gigabit Ports and the Power port.

Plug and Play

Simply power up the switch and plug in connected devices

Ports

16 x Gigabit Ethernet ports

Switching Capacity

32 Gbps switching capacity

QoS Prioritization

MAC level IEEE 802.1p Quality of Service (QoS) traffic prioritization pass-through support

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

LED Indicators

LED indicators convey port status

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Energy Savings

Embedded GREENnet technology reduces power consumption

Standards	IEEE 802.1p IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az
Device Interface	16 x Gigabit ports LED indicators Power port
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)
Performance	Switch fabric: 32 Gbps Ram buffer: 256 KB MAC Address Table: 8K entries Jumbo Frames: 9 KB
Special Feature	Supporting 802.1p QoS packet prioritization Up to 40% GREENnet energy savings Input: 100 - 240 V AC, 50/60 Hz, 0.3 A Output: 12 V DC, 1 A Consumption: 7 Watts (Max)
MTBF	2,771,342 hours
Operating Temperature	0 – 40 °C (32 - 104 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	251 x 158 x 48 mm (9.9 x 6.2 x 1.9 in.)
Weight	642 g (22.7 oz.)
Certifications	CE FCC
Warranty	3 year limited

PACKAGE CONTENTS

TEG-S16D
Quick Installation Guide
Power adapter (12 V DC, 1 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

8/11/2015
