16-Port Gigabit GREENnet Switch

TEG-S16Dg (Version v1.1R)

  • GREENnet technology reduces power consumption by up to 70%*
  • 16 x Gigabit Auto-MDIX RJ-45 ports
  • Sturdy metal desktop switch with built in power supply
  • 32Gbps forwarding capacity
  • Lifetime Warranty*

The 16-Port Gigabit GREENnet Switch, model TEG-S16Dg, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 32Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

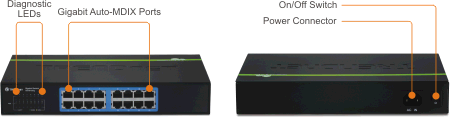

Two views of the 16-Port Gigabit GREENnet Switch TEG-S16Dg. On the left is the front view with labels for Diagnostic LEDs and Gigabit Auto-MDIX Ports, and on the right is the back view with labels for the On/Off Switch and Power Connector.
  • 16 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports
  • On / off power switch
  • Features a 32Gbps forwarding capacity
  • Internal power supply reduces clutter GREENnet technology reduces electrical power consumption when:
    • Ethernet port is not in use
    • Connected device is turned off
    • Connected device is in power-saving mode
    • Based on Ethernet cable length
  • IEEE 802.3az (draft 2.0)Energy Efficient Ethernet technology
  • IEEE 802.3x Flow Control for full-duplex mode
  • Back pressure Flow Control for half-duplex mode
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • Integrated address look-up engine with an 8 K MAC address table, and 2 MBits RAM data buffer
  • Operates and maximizes packet filtering and forwarding rate
  • Jumbo Frame support up to 9216Bytes
  • Sturdy metal housing
  • Diagnostic LEDs and Plug & Play support
  • Lifetime Warranty*
Hardware
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
Network Media
  • Ethernet: Cat. 5 up to 100 m
  • Fast Ethernet: Cat. 5 and 5e up to 100 m
  • Gigabit Ethernet: Cat. 5e and 6 up to 100 m
Data Rate
  • Ethernet: 10Mbps/20Mbps (half/full-duplex)
  • Fast Ethernet: 100Mbps/200Mbps (half/full-duplex)
  • Gigabit Ethernet: 2000Mbps (full-duplex)
Protocol / Topology
  • CSMA/CD, Star
Power Consumption
  • 7.2 Watts (max.)
Switch Fabric
  • 32Gbps
Interface
  • 16 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
Power Button
  • On / off power button
Data RAM Buffer
  • 2 MBits
Filtering Table
  • 8 K entries
Jumbo Frame Support
  • Up to 9216Bytes
Diagnostic LED
  • Power, Link/ACT, 100Mbps, 1000Mbps
Power
  • 100~240VAC, 50/60Hz Internal universal switching power
Dimension
  • 280 x 180 x 44 mm (11 x 7 x 1.7 in.)
Weight
  • 1.5 kg (3.3 lbs.)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TEG-S16Dg
  • Multi-Language Quick Installation Guide
  • Power cord (1.8m / 6ft.)
  • Power Adapter

*Max power savings compared with conventional TRENDnet switches.

TRENDnet offers a lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a one-year warranty.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
