5-Port Gigabit GREENnet Switch

TEG-S50g (Version v4.0R)

  • Plug and Play installation
  • 5 x Gigabit ports
  • 10 Gbps switching fabric
  • Up to 70% energy savings with GREENnet technology*
  • Sturdy metal switch
  • Lifetime Warranty*

TRENDnet's 5-Port Gigabit GREENnet Switch, model TEG-S50g, provides performance, proven reliability, and power savings of up to 70%*. Eliminate network congestion with Gigabit speeds and total switching capacity of 10 Gbps. Plug and Play this sturdy metal switch for reliable high speed network connectivity.

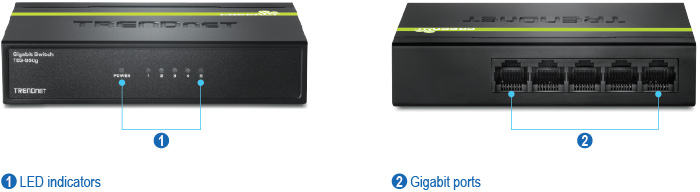

Multiple views of the 5-Port Gigabit GREENnet Switch TEG-S50g. The left side shows the front view with numbered LED indicators, while the right side displays numbered Gigabit ports.

Plug and Play

Simply power up the switch and plug in connected devices

Ports

5 x Gigabit ports

Switching Capacity

10 Gbps switching capacity

Metal Enclosure

Rugged and reliable metal enclosed switch

LED Indicators

LED indicators convey port status

Jumbo Frame

Sends larger packets, or Jumbo Frames, for increased performance

Energy Savings

Embedded GREENnet technology reduces power consumption by up to 70%*

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
Device Interface
  • 5 x Gigabit Ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 128 KB
  • Switch Fabric: 10 Gbps
  • MAC Address Table: 2 K entries
  • Forwarding rate: 7.44 Mpps (64-byte packet size)
  • Jumbo frame: 9 Kbytes
Special Features
  • GREENnet energy saving technology
  • Metal enclosure
Power
  • Input: 100-240 V AC, 50/60 Hz, 0.2 A
  • Output: 5 V DC, 1 A
  • Consumption: 2.75 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90 % non-condensing
Dimensions
  • 116 x 70 x 24 mm (4.6 x 2.8 x 1 in.)
Weight
  • 192 g (6.8 oz.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TEG-S50g
  • Quick Installation Guide
  • Power Adapter (5 V DC, 1 A)

* Max power savings compared with standard TRENDnet switches.

TRENDnet offers a lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a one-year warranty.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
