4-Port USB-C Mini Hub

TUC-H4E (Version v2.0R)

  • No CD installation
  • Add four USB 3.0 ports to a USB-C computer
  • Convenient 12.5cm (4.9 in.) integrated USB-C cable
  • Powered by USB port – No power adapter needed
  • Compact design for easy on the go use
  • NDAA compliant
NDAA Compliant

TRENDnet's 4-Port USB-C Mini Hub, model TUC-H4E, instantly adds four USB 3.0 ports to your computer or laptop. Easy installation—simply plug in your flash drives, storage enclosures, and other USB 3.0 devices to get speeds 10 times faster than a USB 2.0 connection. The TUC-H4E is also backward compatible with older USB 2.0, and 1.1 devices.

Line drawing of a 4-Port USB-C Mini Hub resting on an open hand to demonstrate its compact size. The USB-C Mini Hub has multiple ports on the front panel, indicating connectivity options.

Compact Design

Compact design reduces desktop clutter.

Illustration showing a scanner, printer, and USB flash drive as options that can be connected to a 4-Port USB-C Mini Hub.

USB 3.0

Easily connect up to four USB 3.0 devices to a USB-C enabled desktop or notebook PC.

Line drawing of a 4-port USB-C mini hub with an integrated USB cable.

Integrated Cable

Flexible 12.5cm (4.9 in.) USB-C cable accommodates most installation scenarios.

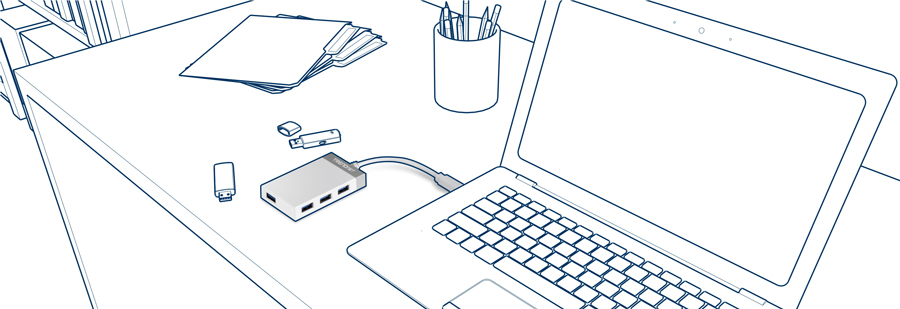

Image shows a workspace with a laptop on a desk, accompanied by 4-Port USB-C Mini Hub TUC-H4E, several USB drives, and a memory card.

Easy Setup

No CD installation

USB 3.0

Easily connect up to four USB 3.0 devices to a USB-C enabled desktop or notebook PC

Integrated Cable

Flexible 12.5cm (4.9 in.) USB-C cable accommodates most installation scenarios.

Operating Systems

Compatible with Windows®and macOS®operating systems

Backwards Compatibility

Compatible with USB 2.0 and 1.1 devices

Standards
  • USB 3.0
  • USB 2.0
  • USB 1.1
  • USB Type-C
Interface
  • 1 x USB Type-C connector
  • 4 x USB 3.0 ports
Maximum Data Rate
  • Up to 5Gbps
Special Features
  • Compact form factor
  • Flexible USB Type-C cable (12.7cm)
  • USB Bus Powered
  • Output: 5V, 0.9A
  • Consumption 4.5W (max.)
System Compatibility
  • Windows: 10, 8.1, 8
  • macOS: 10.9 – 10.13
Operating Temperature
  • 0 - 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 85 x 50 x 15mm (3.4 x 1.96 x 0.6 in.)
  • 44g (1.55 oz)
Warranty
  • 2 year

PACKAGE CONTENTS
  • TUC-H4E
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
